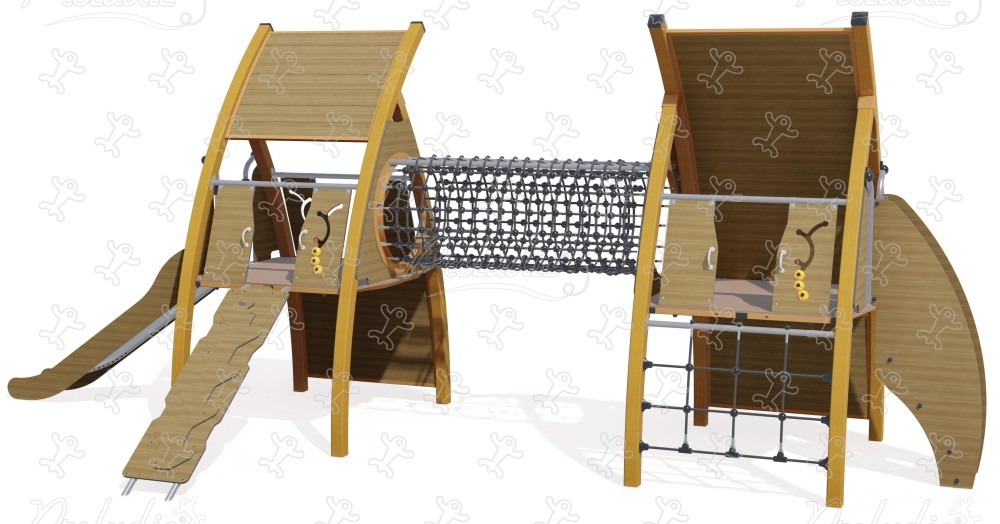

We have created the reference J5622-C® in our "Kanopé" range. This module is accessible from 2 years. It can accommodate up to 20 users.

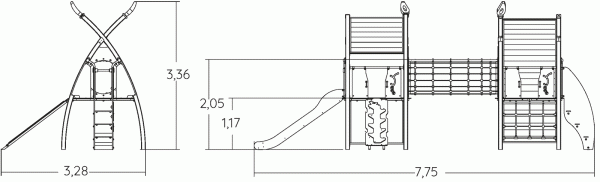

The size of the module is: 7.75 m length, 3.27 m width, 3.37 m. high. The free fall height (FFH) is 1.17 m.
Other finishes available
26 play functions
Climbing
x1
Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.
Sliding
x1
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Handling
x4
Handling is a great activity for developing motor skills and abilities in young children while having fun.
Crawling
x1
Crawling is a fun exercise that allows young children to become aware of their body in a small space.
Hiding
x2
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
Thinking
x4
Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.
Tactile stimulation
x4
Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.
Climbing
x3
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
Getting across
x1
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
Meeting
x2
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
Balancing
x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
Specifications
| Age range: | 2+ |
| Number of users: | 20 users |
| FFH : | 1.17 m |
| Size: | 7.75 x 3.27 x 3.37 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 16:00:00 |
| Concrete volume: | 0.38 m3 |

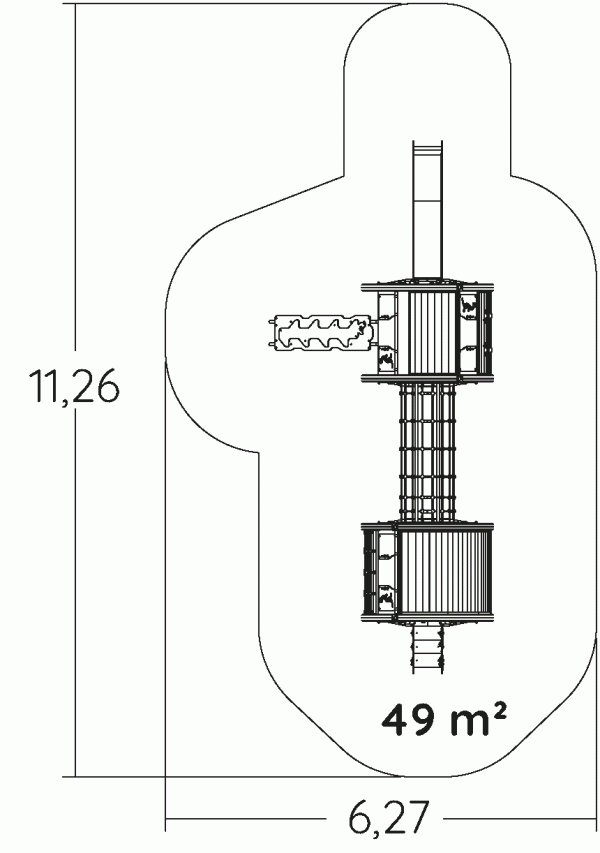

| Surface: | 49.00 m2 |
| Total weight: | 723.29 kg |
| Weight of the heaviest element: | 39.47 kg |
Environmental Indicators
Repairability
9.48 /10
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.
The blades are made of wood-plastic composites (WPCs), 95% of which is recycled plastic material (HDPE) and post-industrial wood sawdust. They are covered with a... thin decorative brown wooden layer, which makes the material resistant and waterproof, and ensures the colours do not alter over time. The planks do not require specific maintenance. Read more
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The platforms and the steps are made from a 12.5mm thick textured and non-slip compact material (HPL).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.
The climbing holds are made of polyamide for its strength and rigidity.
Plastic parts are made of injected polyamide.
The handles are made of very strong polyamide plastic.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
