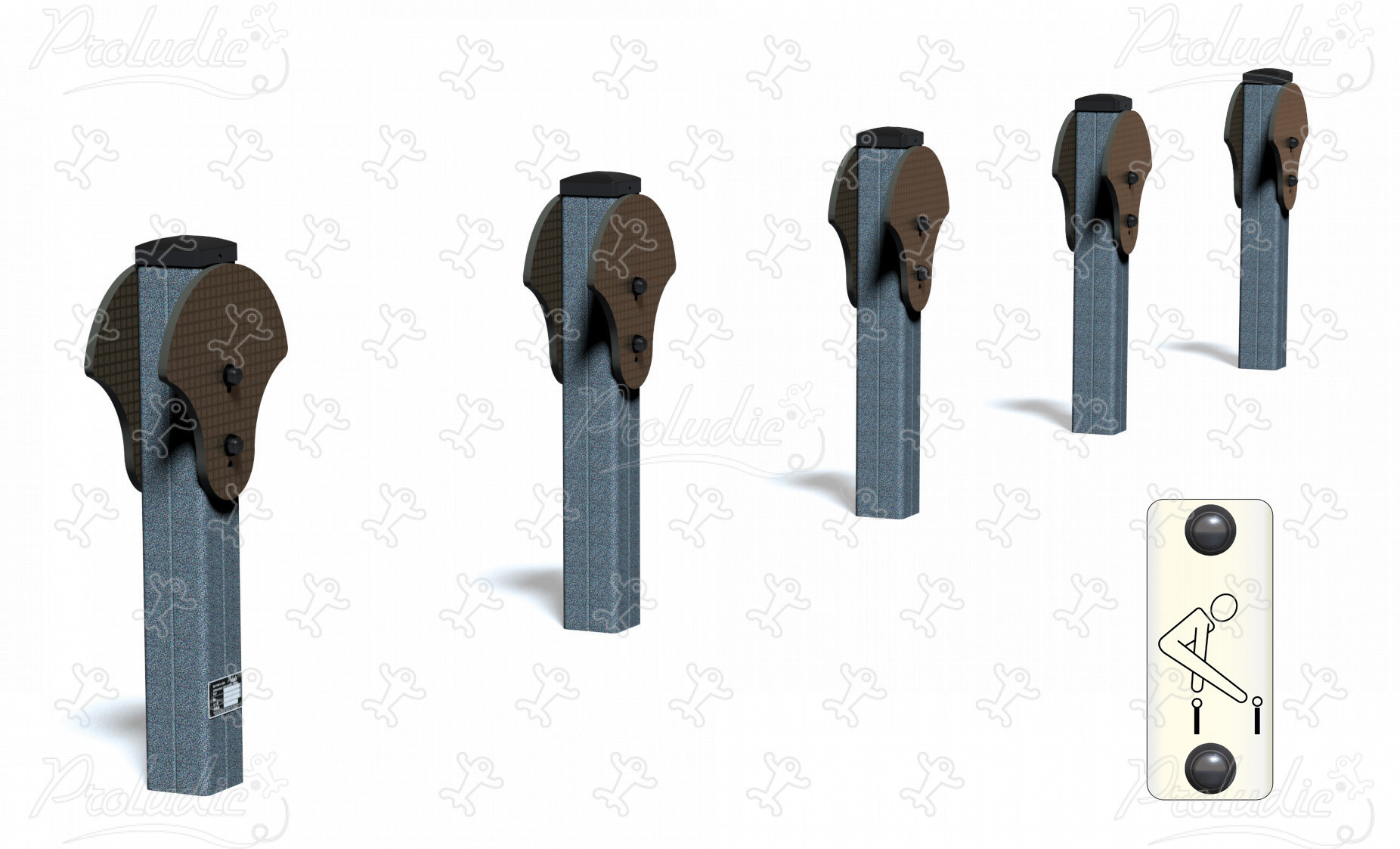

We have created the reference JPS16-J-M in our "Metal Trim Trail" range. This module is accessible from 6 years. It can accommodate up to 2 users.

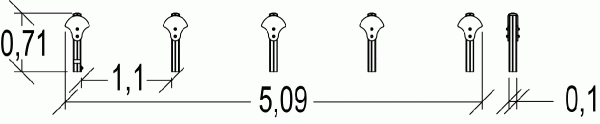

The size of the module is: 5.09 m wide, 0.10 m. deep, 0.71 m. high. The free fall height (FFH) is 0.70 m.


Age range: 6 - 14
Number of users: 2 users
FFH : 0.70 m
Size: 5.09 x 0.10 x 0.71 m

Equipment installation

Number of installers: 1
Installation time: 01:00:00
Concrete volume: 0.15 m3

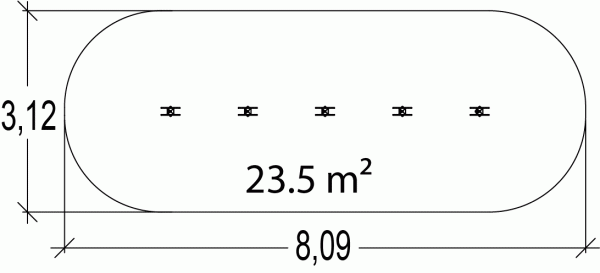

Surface: 23.50 m2
Total weight: 53.06 kg
Weight of the heaviest element: 8.77 kg


The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Side view
Side view
View from above
View from above


The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The panels

The panels are made from a 12.5mm thick textured and non-slip compact material (HPL).

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
