Choosing the right surfacing is essential when designing a playground or outdoor sports area. Safety, comfort, durability and compliance: every project requires a solution suited to its intended use and environment. Discover our surfacing solutions for your future projects:
Our Surfacing Solutions
Grass / Natural Turf
- Advantages: Attractive, natural, environmentally friendly
- Limitations: Suitable for critical fall heights of ≤ 1 m for playgrounds and ≤ 1.5 m for sports areas; requires maintenance; limited accessibility for people with reduced mobility (PRM)
PROLUGRASS Cellular Grid
- Advantages: Attractive, cost-effective, made from natural rubber, accessible for people with reduced mobility (PRM)
- Limitations: Suitable for critical fall heights of ≤ 2.40 m; allow sufficient time for the grass to grow and establish
Artificial Grass (with or without Underlay)
- Advantages: Cost-effective, durable, permeable, available in a variety of colours
- Limitations: Regular maintenance required; a high-quality, level base (aggregate or stabilised ground) is essential
Wood Chips / Gravel / Sand
- Advantages: Natural, durable, reusable, suitable for free fall heights of up to 3 m
- Limitations: An additional 10 cm of depth and width must be allowed for the surfacing area; the specified aggregate grading must be respected

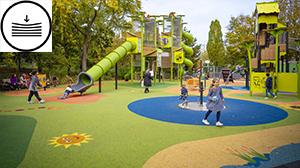

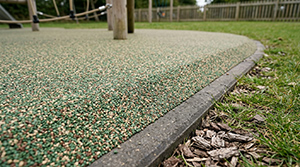

Wet-Pour Safety Surfacing
- Advantages: Suitable for critical fall heights of up to 3 m; can be installed on concrete, asphalt or compacted aggregate; permeable; available in a variety of colours
- Limitations: Maintenance required; high-quality materials may increase the overall project cost

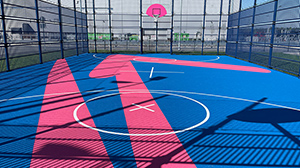

Resin Surfacing
- Advantages: cost-effective, available in a variety of colours
- Limitations: impermeable, non-impact absorbing, requires a clean, hard base (concrete or asphalt)
Additional Elements

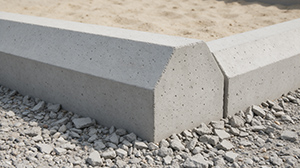

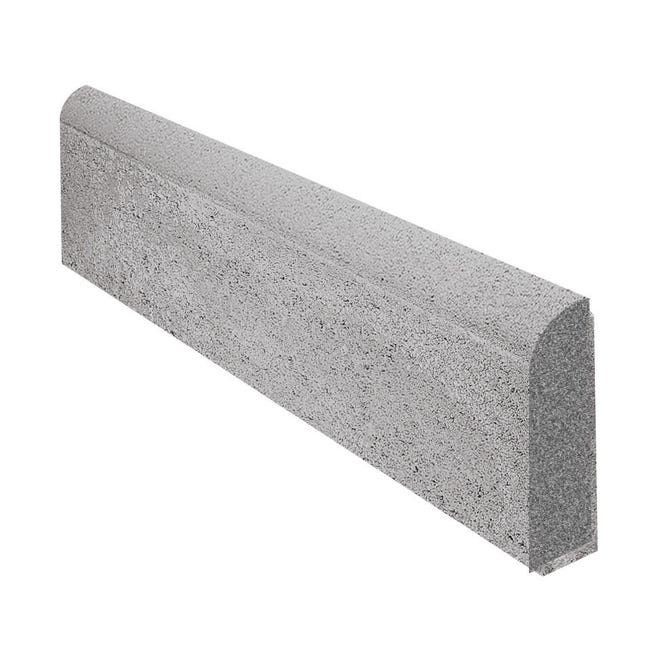

P1 Concrete Kerb / Timber Log Edging
Several types of edging are available, in concrete or wood. The most commonly used are P1 concrete kerbs or timber logs (approximately 140 mm in diameter)

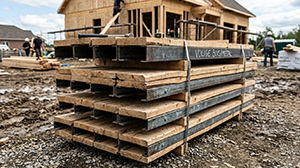

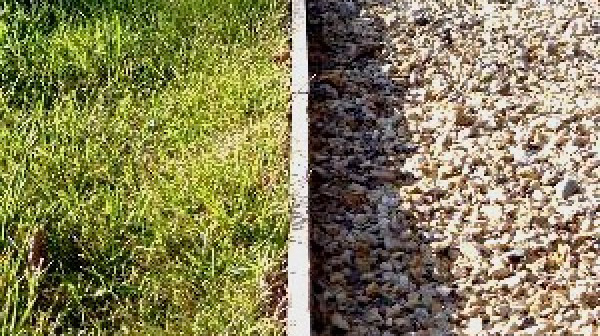

Timber / Metal Edging
Edging strips provide a more flexible solution than P1 kerbs or timber logs

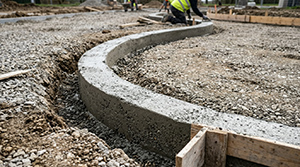

Concrete Edge Beam
A concrete edge beam is created by excavating a trench in the base (aggregate, asphalt, etc.) and filling it with concrete. It is approximately 10 cm wide and 8 cm deep and provides an anchoring surface around the perimeter of an impact-absorbing safety surface

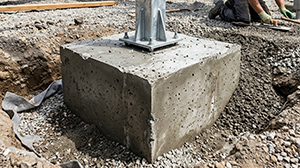

Concrete Footing / Foundation
A concrete footing or foundation consists of a volume of concrete poured into a hole made in the base, in order to secure a Type B play structure

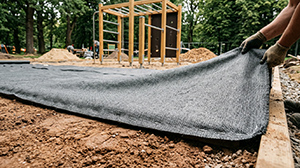

Geotextile
A geotextile is a permeable textile material, often synthetic, used in contact with the ground for reinforcement, separation, filtration, drainage or protection. It is generally used at the bottom of loose-fill surfacing areas to separate the loose material from the ground
Chamfer / Bevel
A chamfer is created by forming a gentle slope to reduce the thickness of an impact-absorbing safety surface. It must be positioned outside the impact zone so as not to reduce the critical fall height (CFH)
Do you have a playground or sports area project? Contact the Proludic teams for support with its design and implementation.
