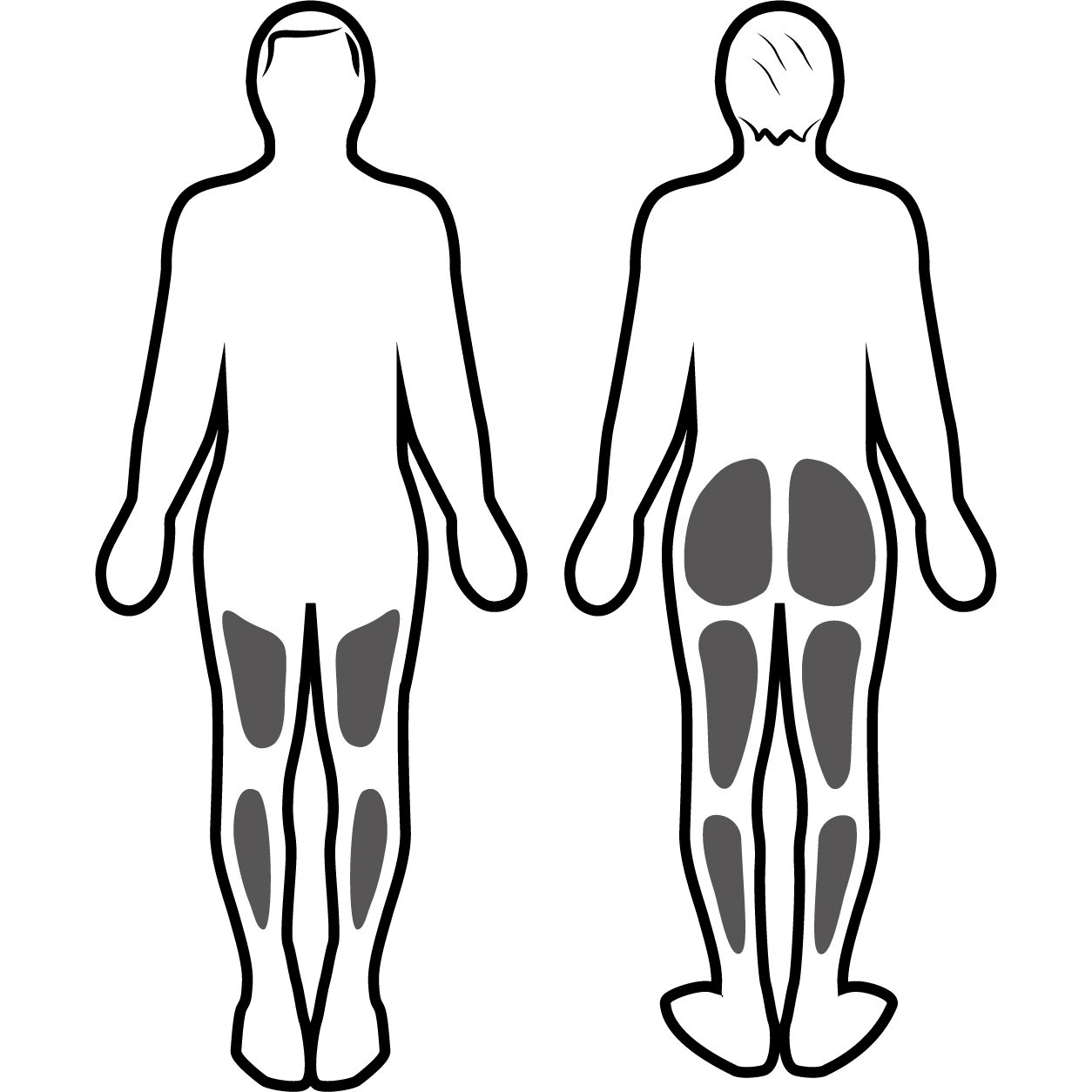

Muscle stimulation

Muscle stimulation

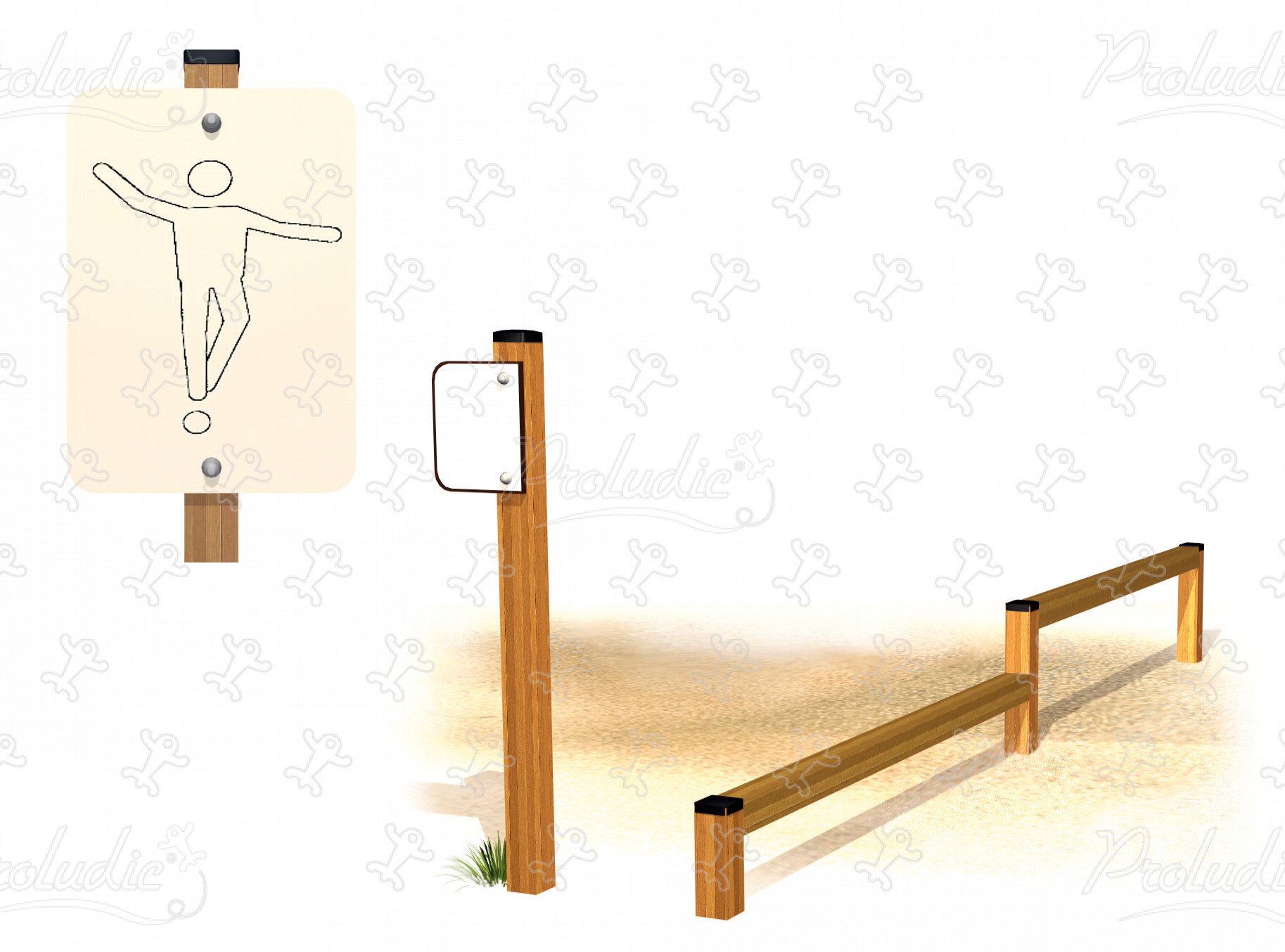

We have created the reference JPS14 in our "Wood trim trails" range. This module is accessible from 6 years. It can accommodate up to 2 users.

The size of the module is: 4.70 m length, 0.78 m width, 0.60 m. high. The free fall height (FFH) is 0.60 m.

Other finishes available

4 sports activities

balancing
Balancing x2
walking
Walking x2

4 ludo-sport motivations

Sensations
Sensations
Sharing
Sharing
Diversity
Diversity
Challenge
Challenge

Specifications

Age range: 6+
Number of users: 2 users
FFH : 0.60 m
Size: 4.70 x 0.78 x 0.60 m

Equipment installation

Number of installers: 1
Installation time: 01:00:00
Concrete volume: 0.10 m3
Surface: 22.00 m2
Total weight: 42.97 kg
Weight of the heaviest element: 11.22 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

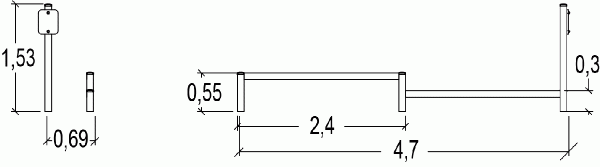

Side view
Side view

Materials

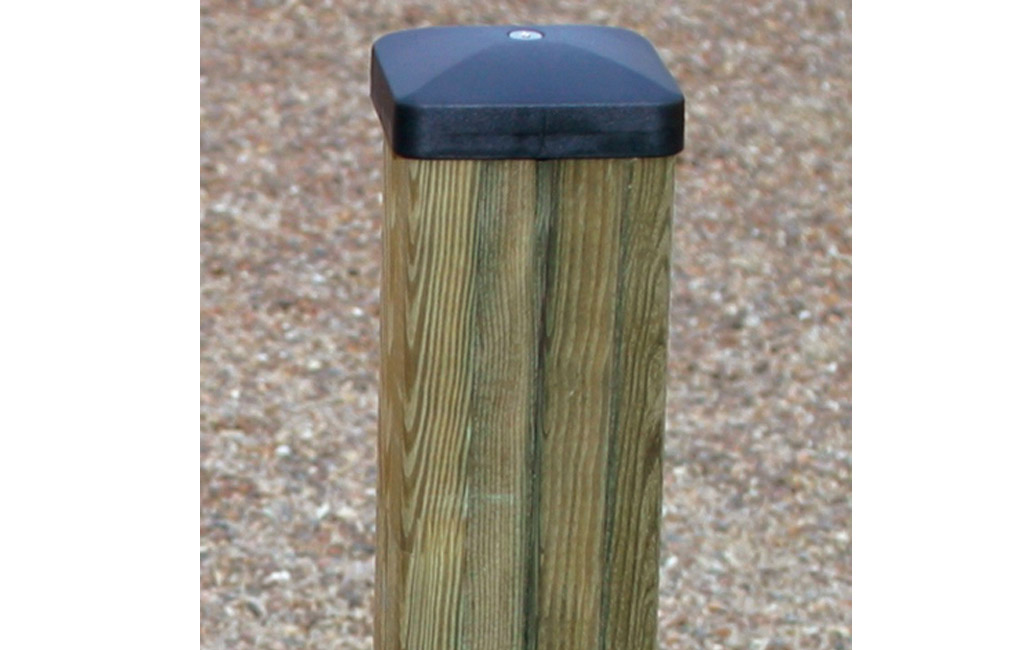

The 95mm square posts and beams

The 95mm square posts and beams are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
