ACTI’Ninja - Stopwatch panel - J5914®

We have created the reference J5914® in our "ACTI’Ninja" range. This module is accessible from 6 years. It can accommodate up to 1 user.

The size of the module is: 0.61 m length, 0.11 m width, 1.45 m. high. The free fall height (FFH) is 0.60 m.

2 ludo-sport motivations

Sensations
Sensations
Challenge
Challenge

Specifications

Age range: 6+
Number of users: 1 user
FFH : 0.60 m
Size: 0.61 x 0.11 x 1.45 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.06 m3
Surface: 9.50 m2
Total weight: 34.29 kg
Weight of the heaviest element: 12.49 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Ninja - Stopwatch panel - J5914®
Video - ACTI’Ninja - Stopwatch panel - J5914®
Side view
Side view
View from above
View from above

Materials

The 70 x 70mm posts

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

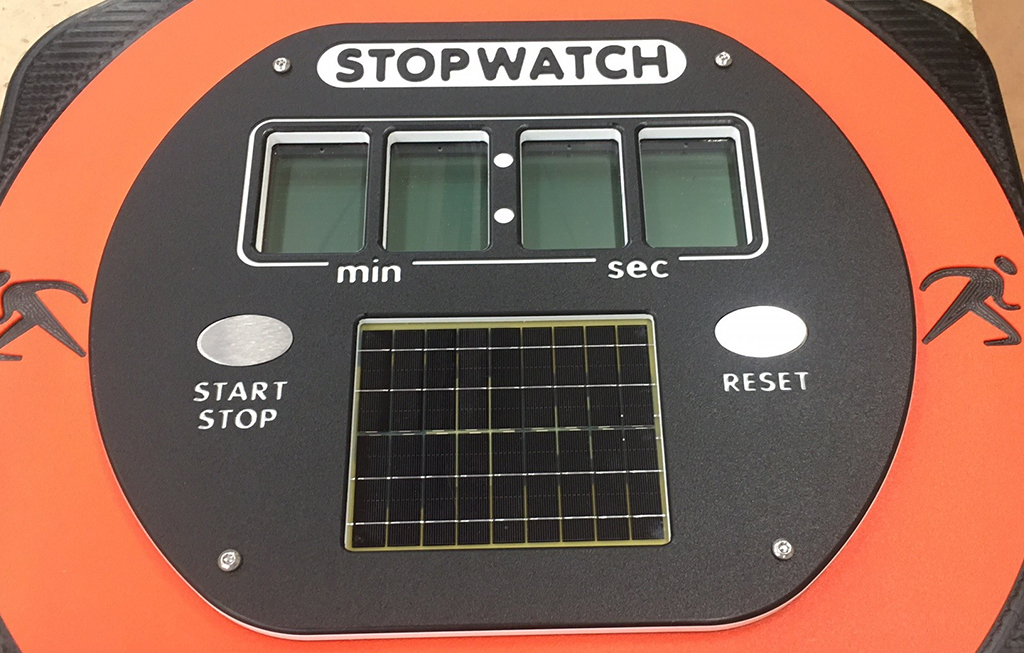

The stopwatch

The stopwatch is machined from a polyethylene panel, embedded in a 13mm thick compact (HPL) panel. It runs on solar power. It is equipped with 2 Start and Reset... buttons which are in stainless steel. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
