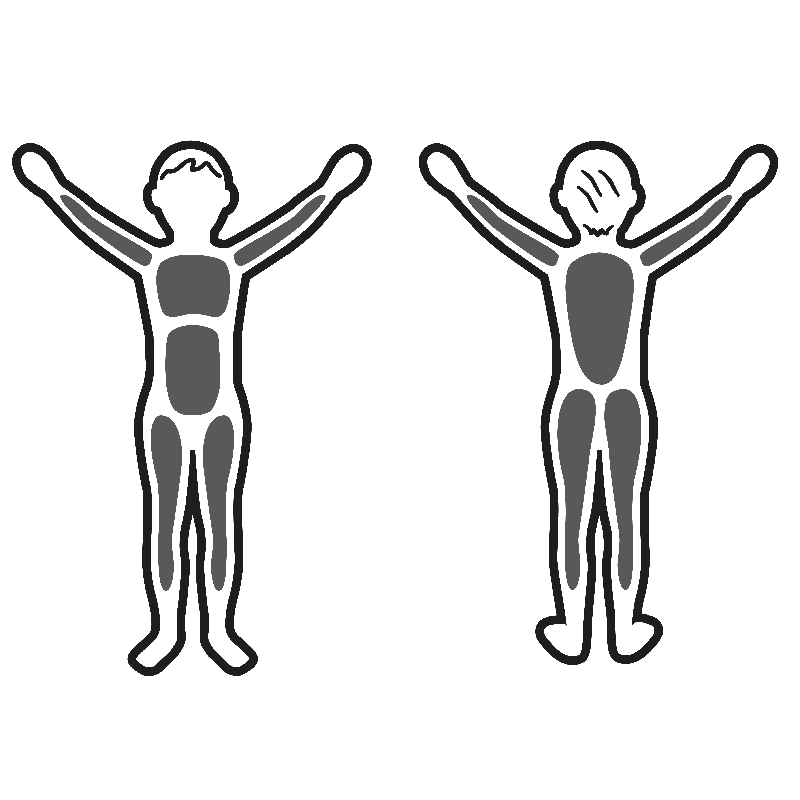

Muscle stimulation

Muscle stimulation

Movement

Movement

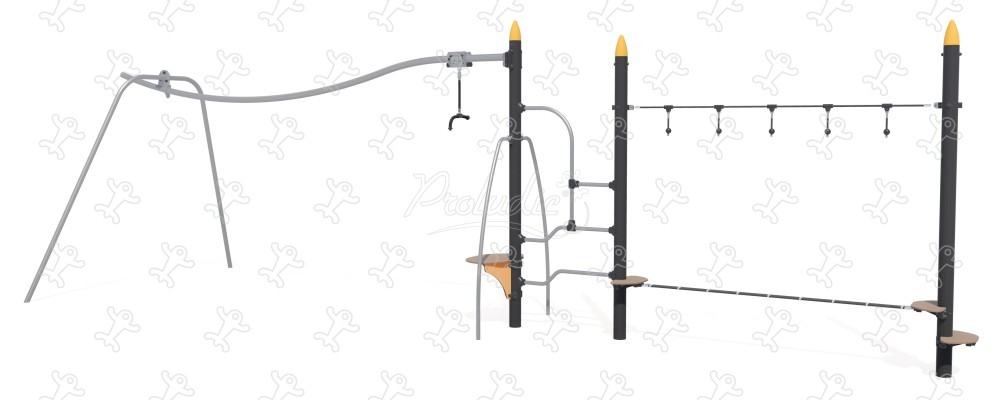

ACTI’Ninja - Aerial crossing - J5913®

We have created the reference J5913® in our "ACTI’Ninja" range. This module is accessible from 1.40 m. It can accommodate up to 4 users.

The size of the module is: 10.51 m length, 3.37 m width, 3.21 m. high. The free fall height (FFH) is 1.55 m.

6 sports activities

balancing
Balancing x1
getting across
Getting across x2
climbing
Climbing x1
sliding
Sliding x1
hanging
Hanging x1
Show more

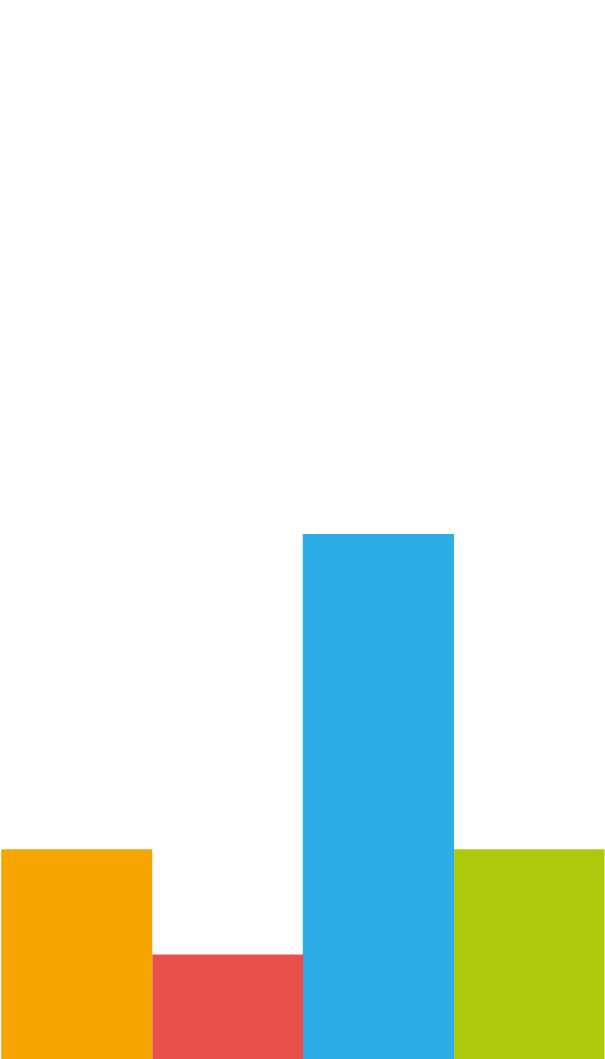

4 ludo-sport motivations

Sensations
Sensations
Progressive design
Progressive design
Sharing
Sharing
Challenge
Challenge

Specifications

Minimum size: > 1.40 m
Number of users: 4 users
FFH : 1.55 m
Size: 10.51 x 3.37 x 3.21 m

Equipment installation

Number of installers: 2
Installation time: 08:00:00
Concrete volume: 0.89 m3
Surface: 54.00 m2
Total weight: 170.41 kg
Weight of the heaviest element: 42.16 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

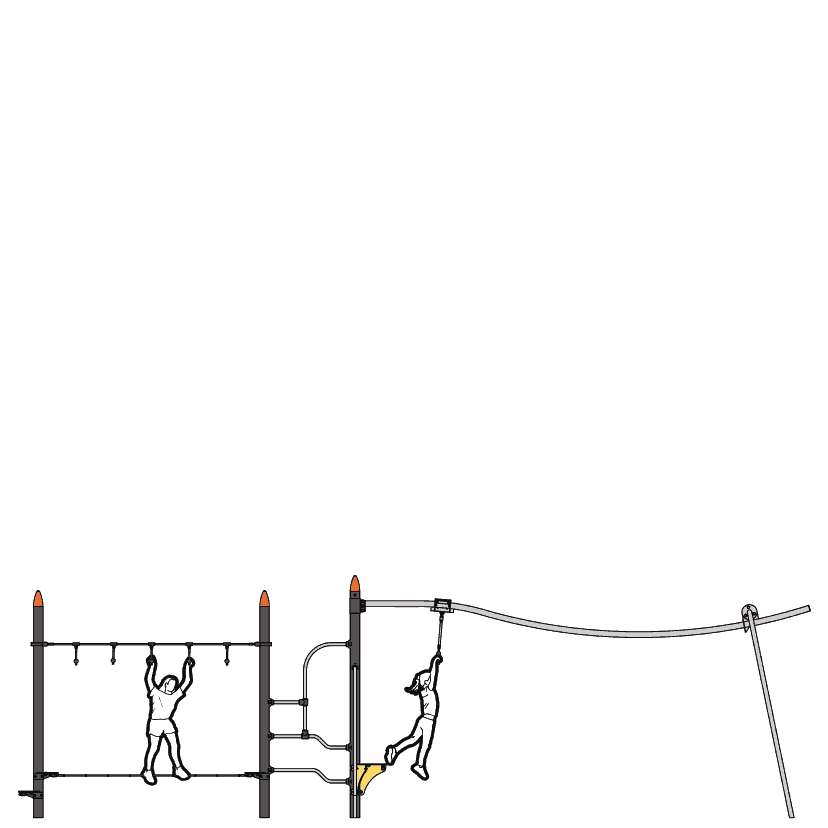

Side view
Side view
View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... rotary moulded polyethylene. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

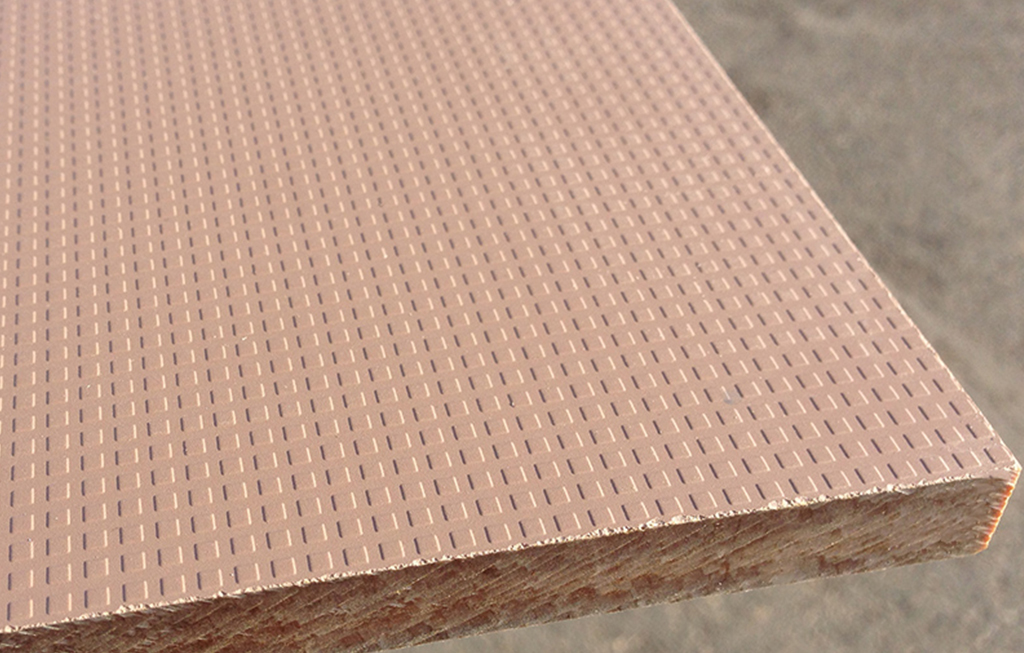

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The 16mm diameter rope

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The cables

The cables are linked together and held in place by injected polyamide spheres.

The strap

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.

The one-piece rail

The one-piece rail is made of stainless steel, Ø 76.1mm, 3.6mm thick. The trolley is made of stainless steel ensuring its durability.

The handle

The handle is made of of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
