ACTI’Ninja - J5909®

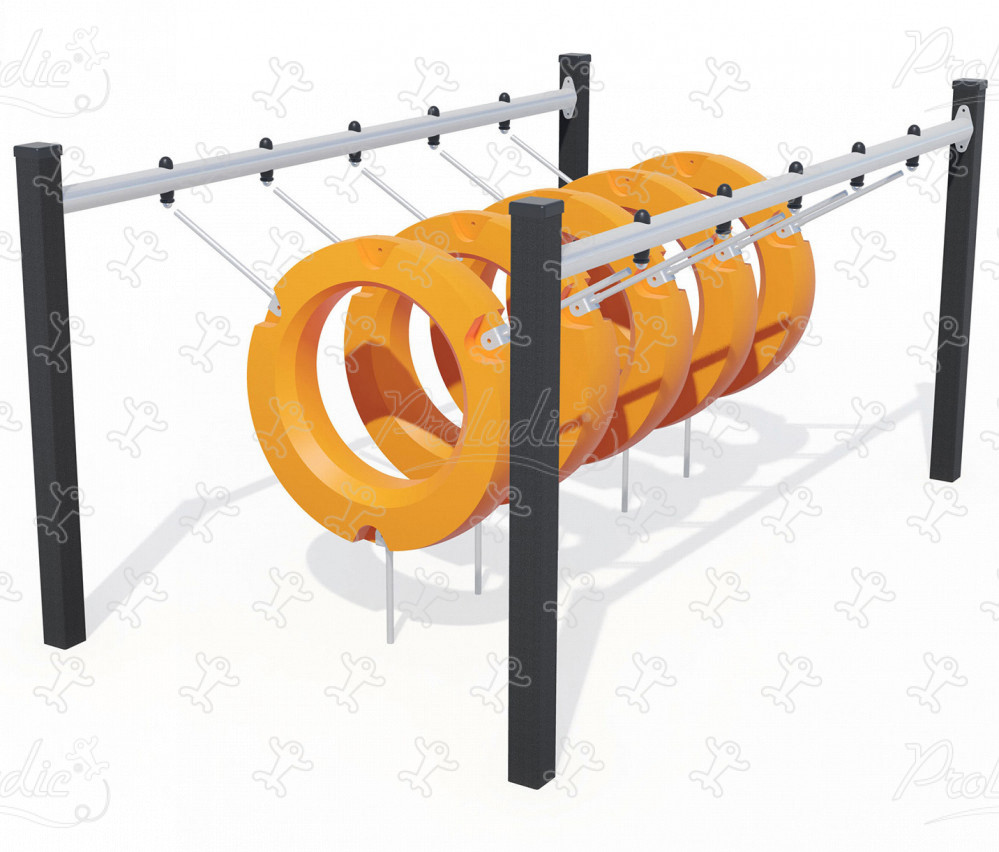

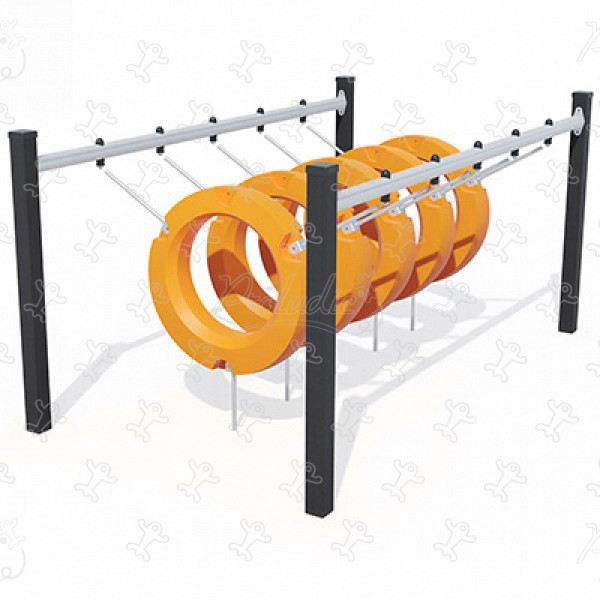

We have created the reference J5909® in our "ACTI’Ninja" range. This module is accessible from 1.40 m. It can accommodate up to 3 users.

The size of the module is: 2.35 m length, 1.33 m width, 1.15 m. high. The free fall height (FFH) is 1.10 m.

3 sports activities

balancing
Balancing x1
crawling
Crawling x1
getting across
Getting across x1

2 ludo-sport motivations

Sensations
Sensations
Challenge
Challenge

Specifications

Minimum size: > 1.40 m
Number of users: 3 users
FFH : 1.10 m
Size: 2.35 x 1.33 x 1.15 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.25 m3
Surface: 21.50 m2
Total weight: 91.05 kg
Weight of the heaviest element: 10.68 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Ninja - J5909®
Video - ACTI’Ninja - J5909®
Side view
Side view
View from above
View from above

Materials

The 70 x 70mm posts

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

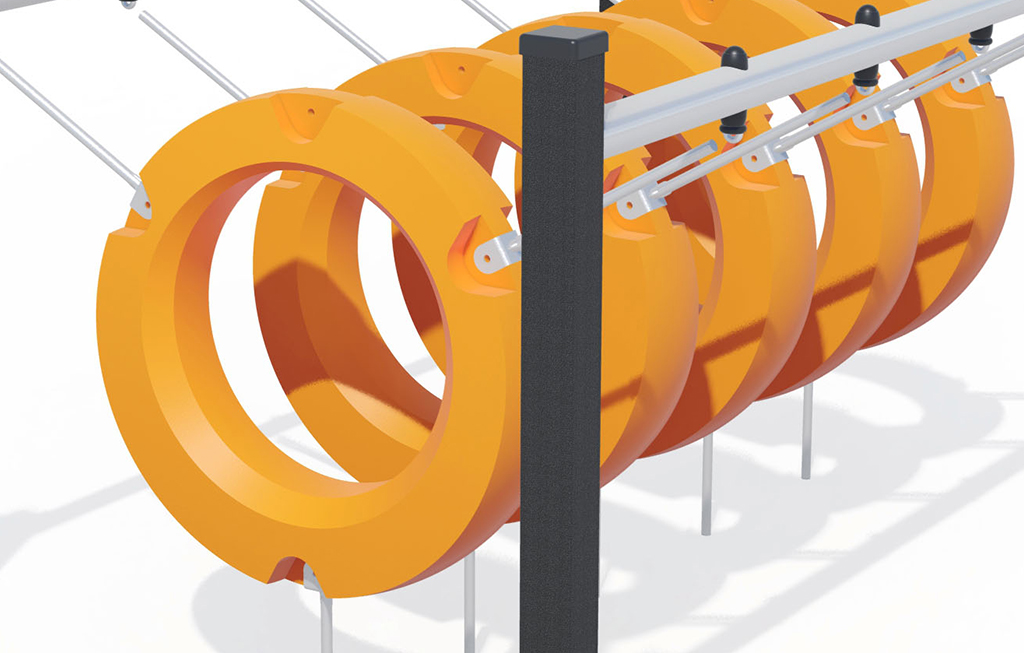

The rubber ring

The rubber ring is a monobloc element made of polyethylene with an outside diameter of 70cm and inside diameter of 45cm.

The chains

The chains are made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
