Climbing slope
J5906®
We have created the reference J5906® in our "ACTI’Ninja" range. This module is accessible from 1.40 m. It can accommodate up to 2 players.
The size of the module is: 2.83 m length, 1.08 m width, 1.49 m. high. The free fall height (FFH) is 1.49 m.
Sports Equation
Muscle stimulation
Movement
| Minimum size: | > 1.40 m |
| Number of players: | 2 players |
| FFH : | 1.49 m |
| Size: | 2.83 x 1.08 x 1.49 m |
| Number of installers: | 2 |
| Installation time: | 03:00:00 |
| Concrete volume: | 0.11 m3 |
| Surface: | 24.00 m2 |
| Total weight: | 133.74 kg |
| Weight of the heaviest element: | 14.54 kg |
Repairability
9.17 /10
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

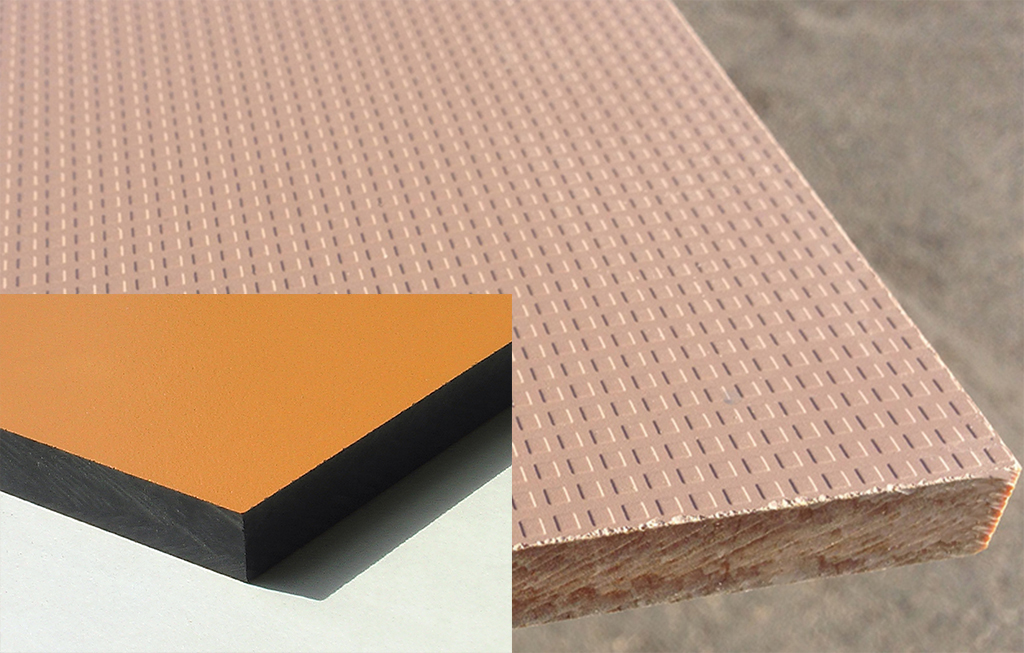

The climbing wall is made from a 12.5mm thick textured and non-slip compact material (brown HPL) and from a 13mm thick compact material (orange HPL). Robust in... construction, HPL has excellent weather and vandal resistance properties. Read more
The 16mm diameter rope is made of galvanised steel cable covered with polyester.
The cables are linked together and held in place by injected polyamide spheres.
The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
