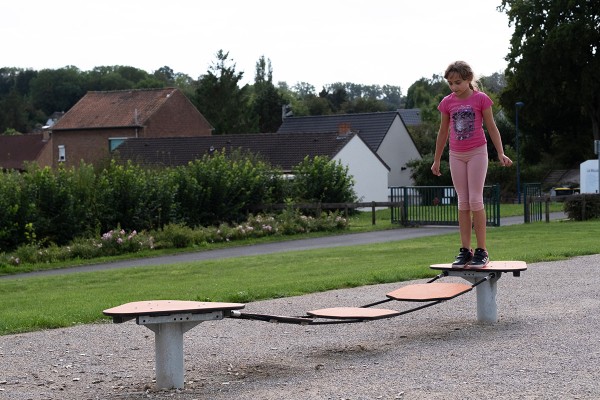

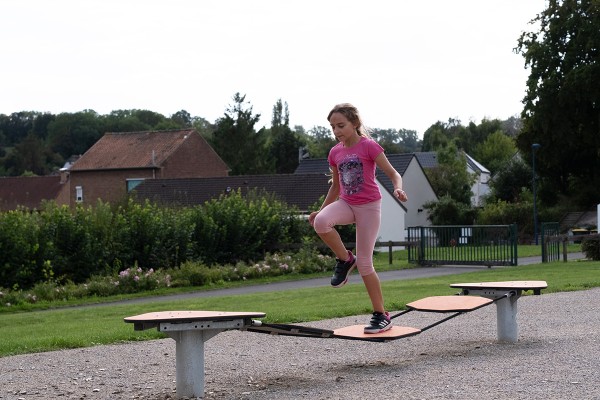

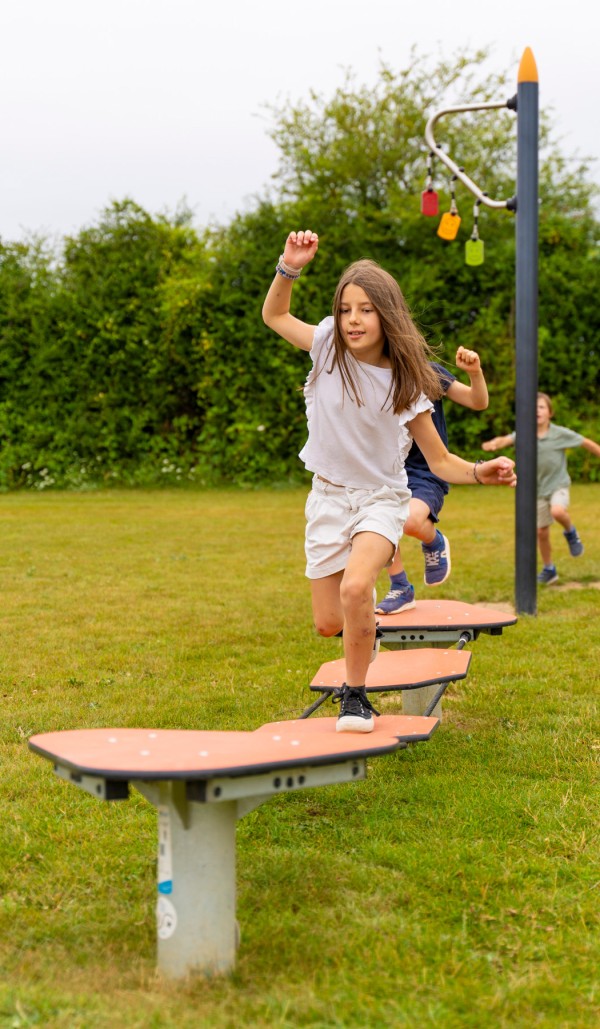

ACTI’Ninja - Unstable bridge - J5905®

We have created the reference J5905® in our "ACTI’Ninja" range. This module is accessible from 1.40 m. It can accommodate up to 2 users.

The size of the module is: 3.74 m length, 0.68 m width, 0.37 m. high. The free fall height (FFH) is 0.60 m.

4 sports activities

walking
Walking x1
balancing
Balancing x1
getting across
Getting across x1
running
Running x1

4 ludo-sport motivations

Sensations
Sensations
Progressive design
Progressive design
Sharing
Sharing
Challenge
Challenge

Specifications

Minimum size: > 1.40 m
Number of users: 2 users
FFH : 0.60 m
Size: 3.74 x 0.68 x 0.37 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.50 m3

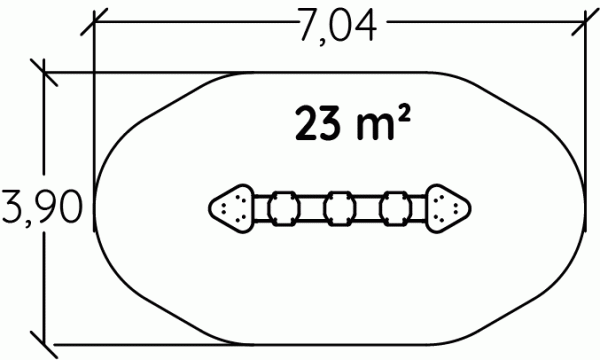

Surface: 23.00 m2
Total weight: 69.00 kg
Weight of the heaviest element: 14.20 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Ninja - Unstable bridge - J5905®
Video - ACTI’Ninja - Unstable bridge - J5905®
Side view
Side view
View from above
View from above

Materials

The single-unit structure

The single-unit structure is in galvanised steel.

The platform floors

The platform floors are made from a 18mm thick, non-slip polyethylene material.

The 16mm diameter rope

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
