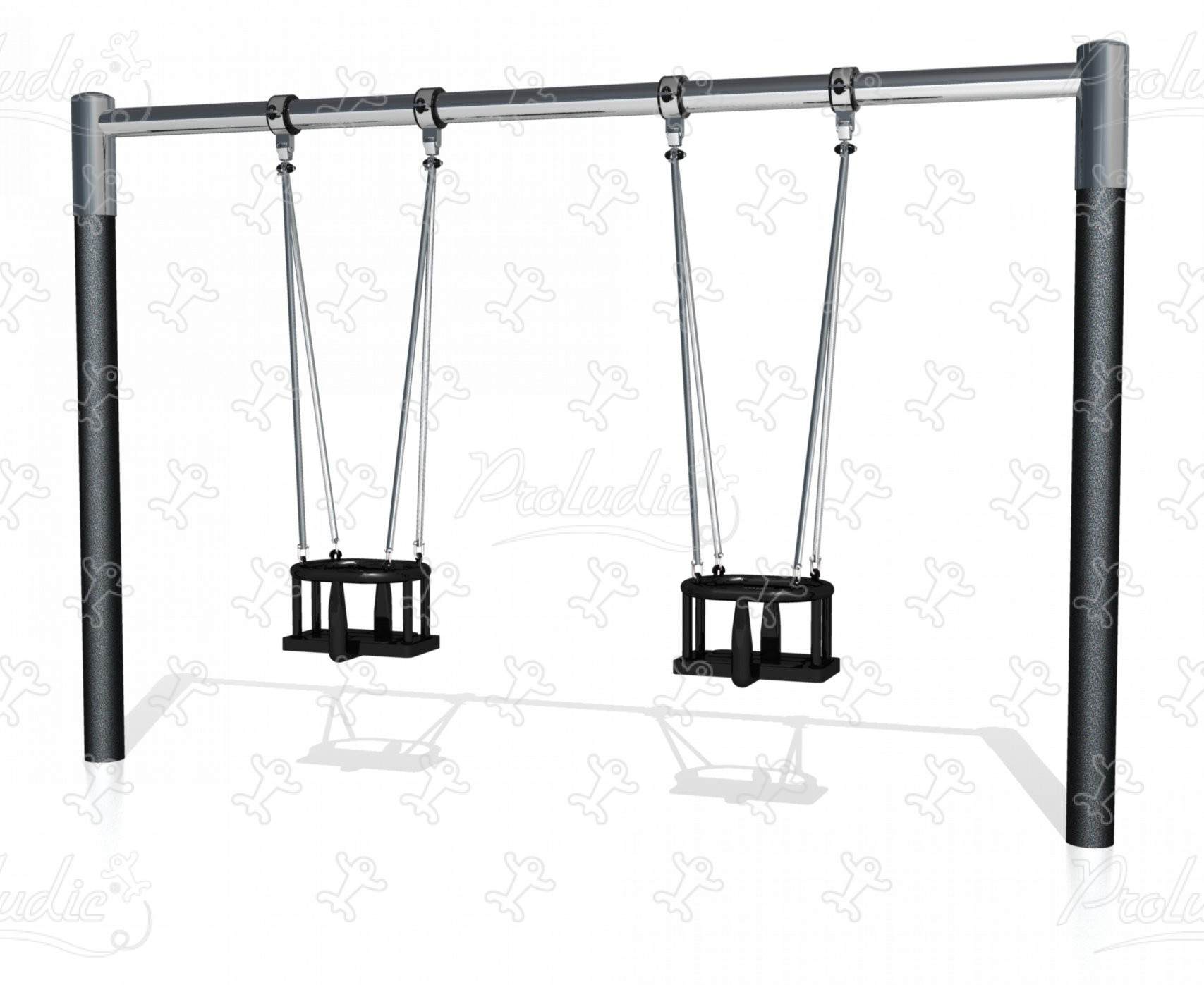

We have created the reference J480 in our "Swings" range. This module is accessible from 1 year. It can accommodate up to 2 users.

The size of the module is: 3.23 m length, 0.37 m width, 2.14 m. high. The free fall height (FFH) is 1.20 m.

3 play functions

swinging
Swinging x1
To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
resting
Resting x1
Resting allows the child to recover from their exertions, and also improve their concentration.

Specifications

Age range: 1 - 3
Number of users: 2 users
FFH : 1.20 m
Size: 3.23 x 0.37 x 2.14 m

Equipment installation

Number of installers: 2
Installation time: 01:30:00
Concrete volume: 0.50 m3
Surface: 18.50 m2
Total weight: 97.81 kg
Weight of the heaviest element: 40.36 kg

Environmental Indicators

Repairability

Repairability

9.29 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

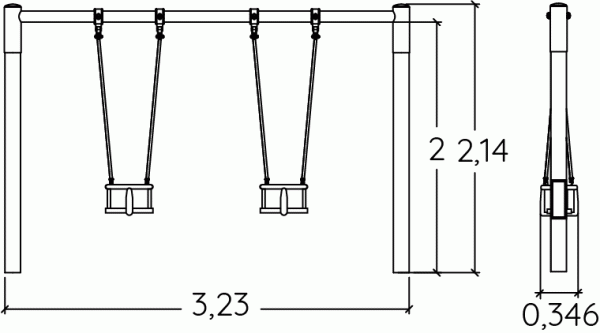

Side view
Side view
View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The horizontal beam

The horizontal beam is made of non-painted galvanised steel.

The anti-wrapping system

The anti-wrapping system consists of polyamide parts and stainless steel collars. The swing bearings are made of stainless steel.

The pod swing seat for early childhood

The pod swing seat for early childhood is made of polyurethane, which ensures a comfortable seating. The swing chains are made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
