We have created the reference J435-G® in our "Swings" range. This module is accessible from 2 years. It can accommodate up to 5 users.

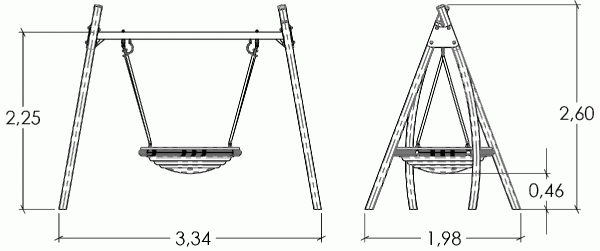

The size of the module is: 3.34 m length, 1.98 m width, 2.60 m. high. The free fall height (FFH) is 1.46 m.
3 play functions
Meeting
x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
Resting
x1
Resting allows the child to recover from their exertions, and also improve their concentration.
Swinging
x1
To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.
Specifications
| Age range: | 2+ |
| Number of users: | 5 users |
| FFH : | 1.46 m |
| Size: | 3.34 x 1.98 x 2.60 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 01:30:00 |
| Concrete volume: | 0.11 m3 |

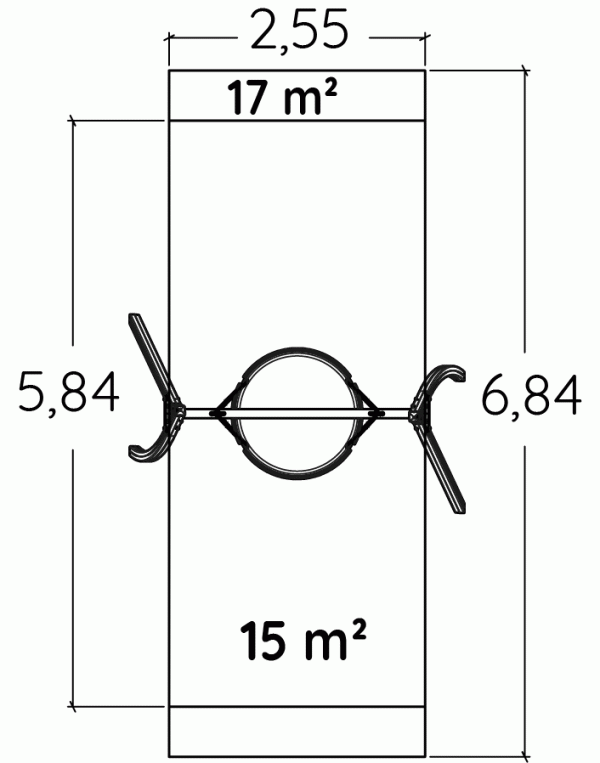

| Surface: | 15.00 m2 |
| Total weight: | 173.03 kg |
| Weight of the heaviest element: | 42.49 kg |
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.
The horizontal beam is made of non-painted galvanised steel.
The pod is made from a single piece of 30%-recycled rotomoulded polyethylene. It is fixed to a stainless steel frame that is fitted with buffers. The pod is... suspended from galvanised steel ropes covered by PVC. Read more
PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. The swing chains are... made of galvanised steel. Read more
The double joined swing mechanism is made of stainless steel. A safety chain provides additional support for the pod.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
