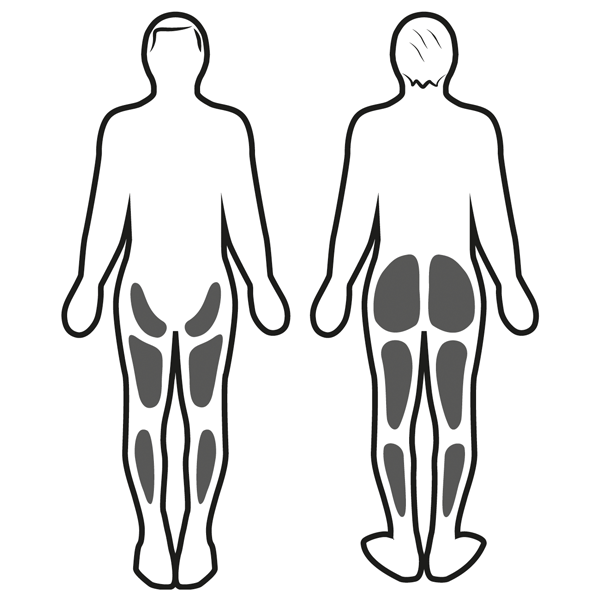

Muscle stimulation

Muscle stimulation

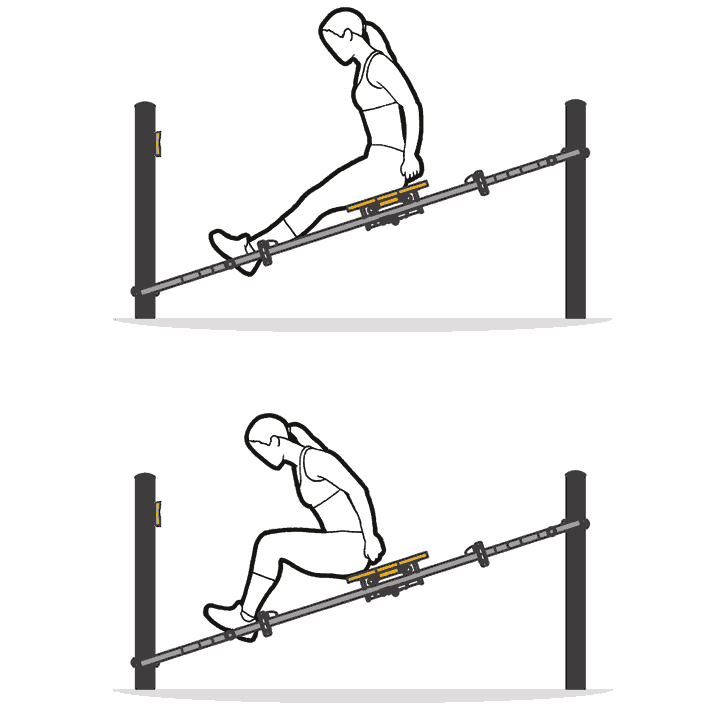

Movement

Movement

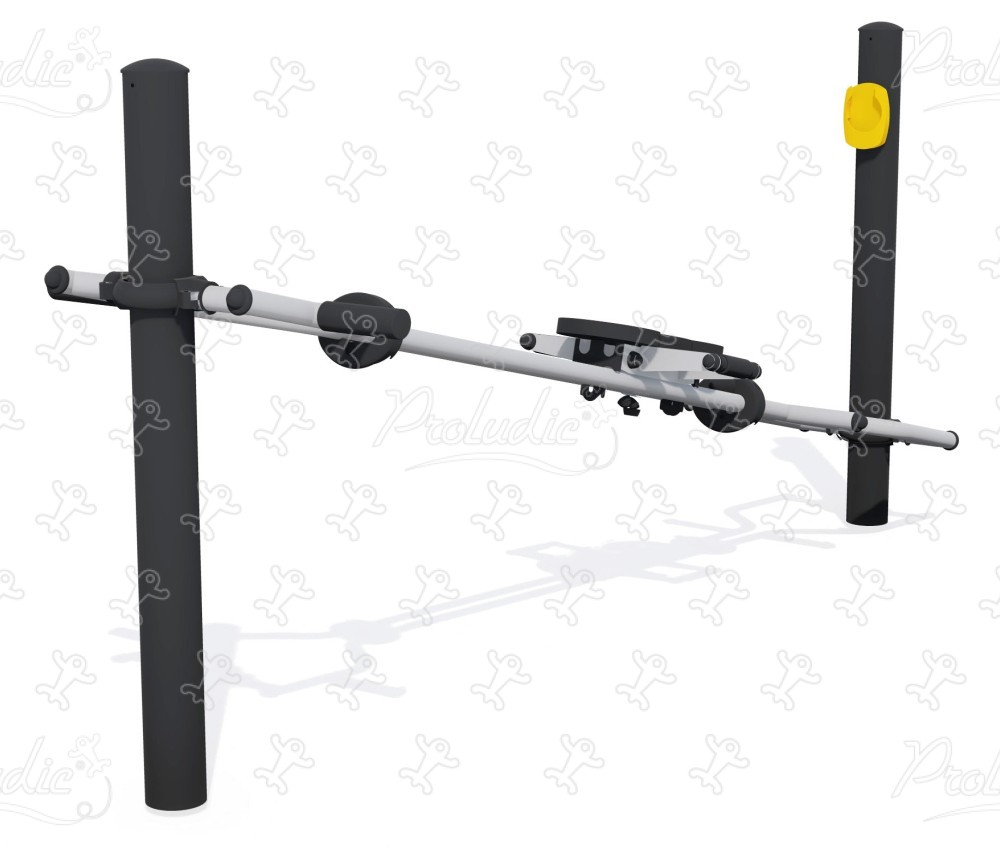

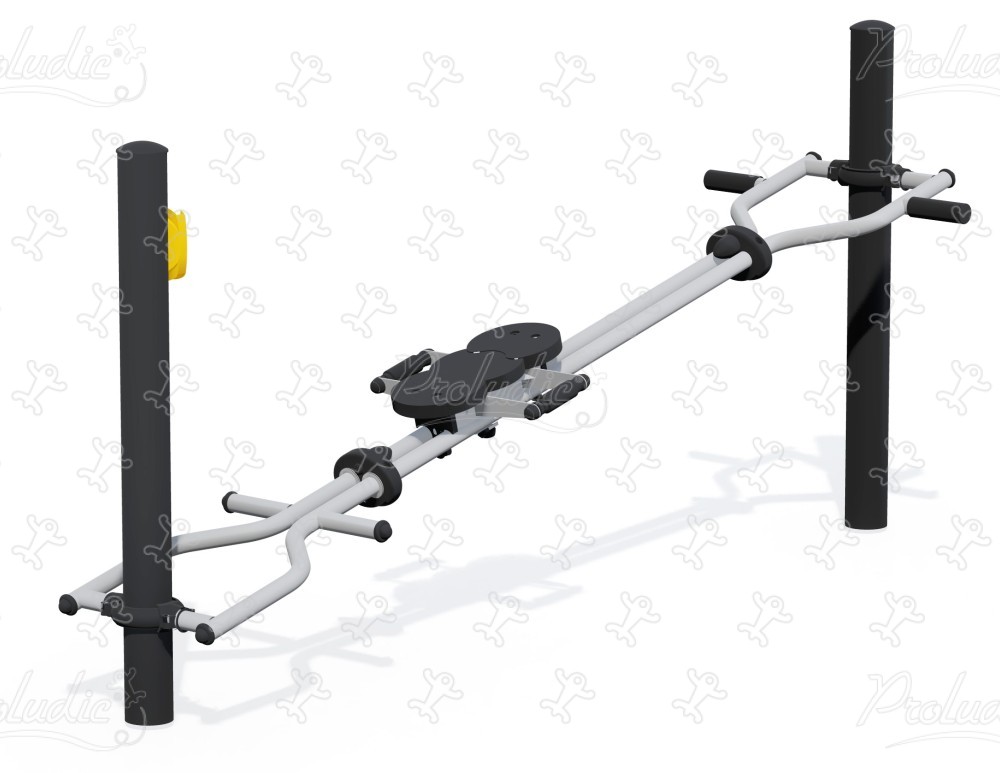

ACTI’Fit - J37202®

We have created the reference J37202® in our "ACTI’Fit" range. This module is accessible from 10 years. It can accommodate up to 1 user.

The size of the module is: 2.61 m length, 0.76 m width, 1.22 m. high. The free fall height (FFH) is 0.95 m.

1 sporting activity

rowing
Rowing x1

4 ludo-sport motivations

Application Acti'Fun
Application Acti'Fun
Multimedia
Multimedia
Progressive design
Progressive design
Challenge
Challenge

Specifications

Age range: 10+
Number of users: 1 user
FFH : 0.95 m
Size: 2.61 x 0.76 x 1.22 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00
Concrete volume: 0.40 m3
Surface: 19.50 m2
Total weight: 53.34 kg
Weight of the heaviest element: 23.43 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Fit - J37202®
Video - ACTI’Fit - J37202®

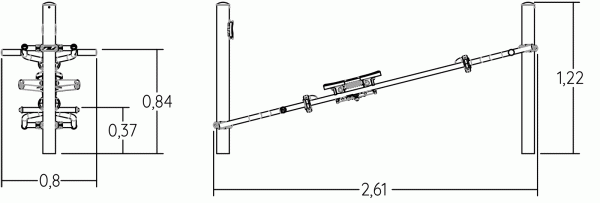

Side view
Side view

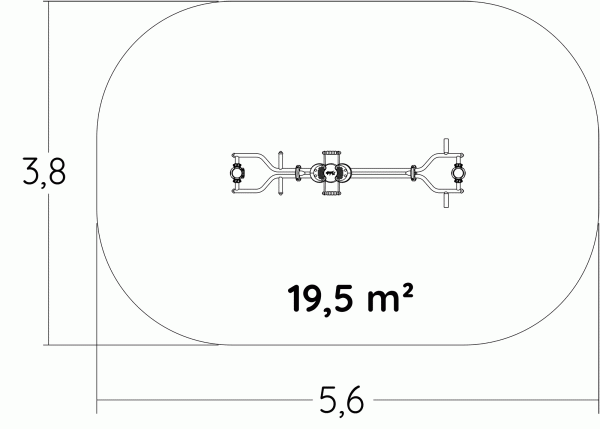

View from above
View from above

Materials

The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixing collars

The fixing collars are made of painted aluminium.

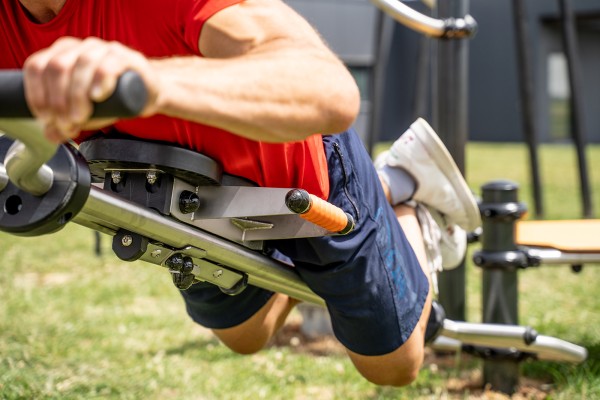

The Rowing machine seat

The Rowing machine seat is made of rubber. The handles are made of PVC.

The smartphone holder

The smartphone holder is made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
