J37101 - ACTI’FUN

In short

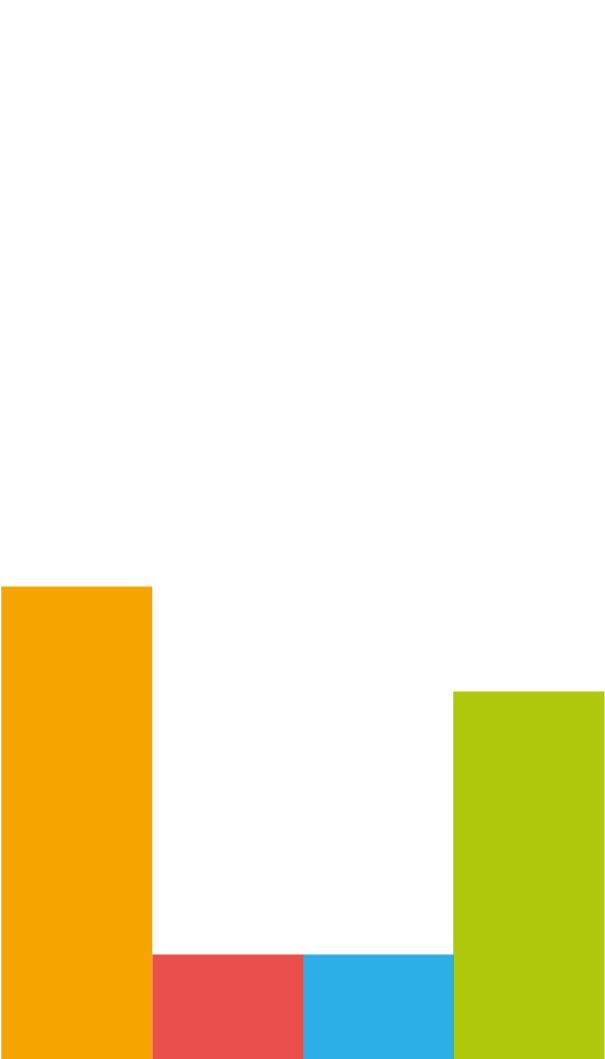

Sports Equation

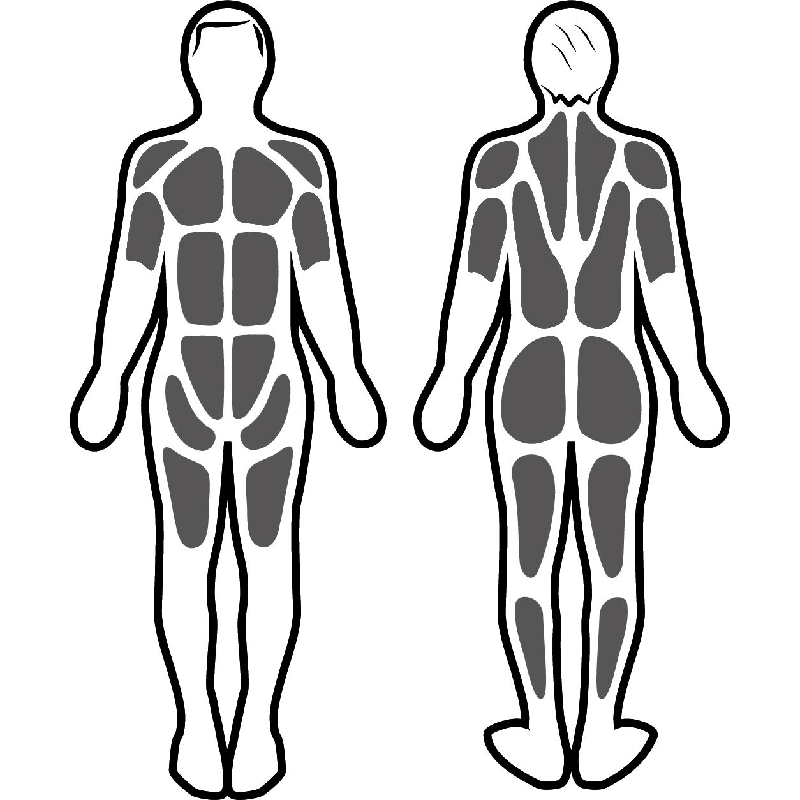

Muscle stimulation

Inclusive fun-sport station

We have created the reference J37101® in our "ACTI’Fit" range. This module is accessible from 10 years. It can accommodate up to 8 users.

Inclusive station that brings together the maximum number of elements that can be accessed by wheelchair users: tai-chi wheels, shoulder disc, sloping monkey bars, dip bars and low horizontal bar.

14 sports activities

Balancing x1

Getting across x1

Jumping x1

Hanging x2

Pull-ups x2

Dips x2

Abs x1

Spinning x3

Push-ups x1

7 ludo-sport motivations

Application Acti'Fun

Multimedia

Sensations

Progressive design

Sharing

Diversity

Challenge

Specifications

Age range:	10+
Number of users:	8 users
FFH :	1.60 m
Size:	5.36 x 3.76 x 2.35 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	1.20 m3
Surface:	49.00 m2
Total weight:	352.13 kg
Weight of the heaviest element:	19.91 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Video - ACTI’Fit - Inclusive fun-sport station - J37101®

Materials

The 102mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

The caps are made of painted aluminium (A) or rotary moulded polyethylene (B).

The tubes are made of 40mm and 33mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tubes used for the Parallel bars and Suspension bars are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and provides a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint ensures better grip. Read more

The fixing collars are made of painted aluminium.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
