J3504-N - ACTI’FUN, Moving equipment - Dynamic Structures, Rotating equipment

In short

Sports Equation

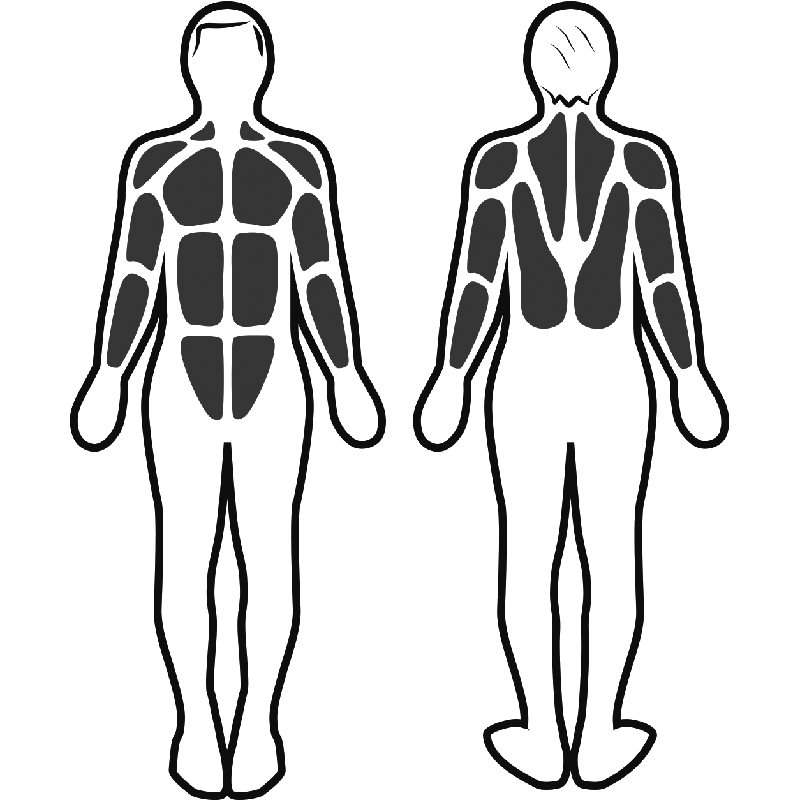

Muscle stimulation

Movement

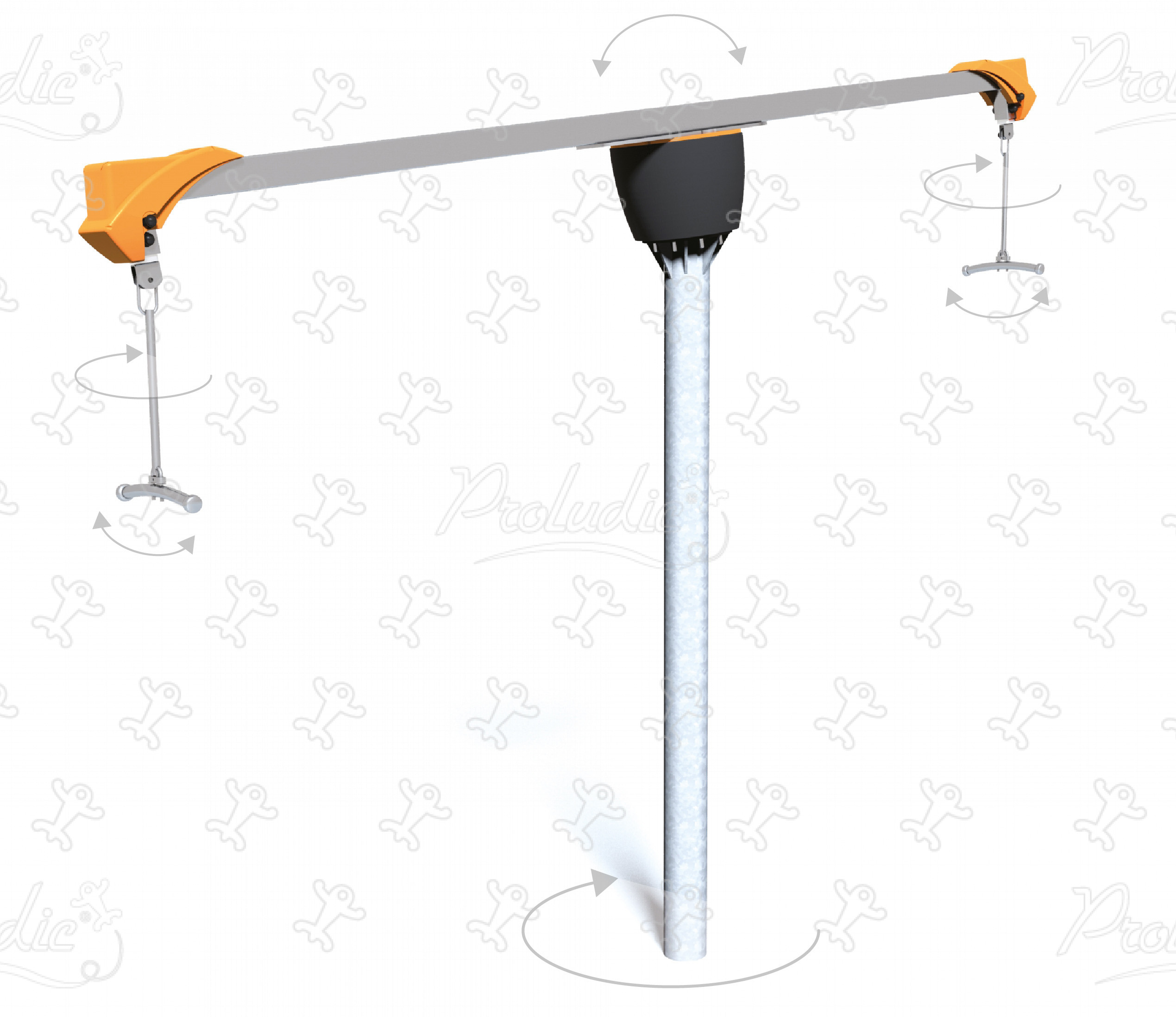

We have created the reference J3504-N in our "Dynamic Structures" range. This module is accessible from 12 years. It can accommodate up to 2 users.

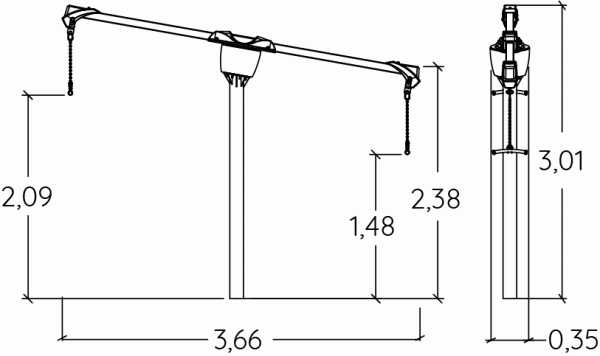

The size of the module is: 3.66 m length, 0.35 m width, 3.01 m. high. The free fall height (FFH) is 0.90 m.

5 sports activities

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Swinging x1

To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Rotating x1

Rotating allows the child to experience thrills and speed, to feel that "head spinning" effect, or their feet taking off.

4 ludo-sport motivations

Sensations

Sharing

Diversity

Challenge

Specifications

Age range:	12+
Number of users:	2 users
FFH :	0.90 m
Size:	3.66 x 0.35 x 3.01 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.60 m3

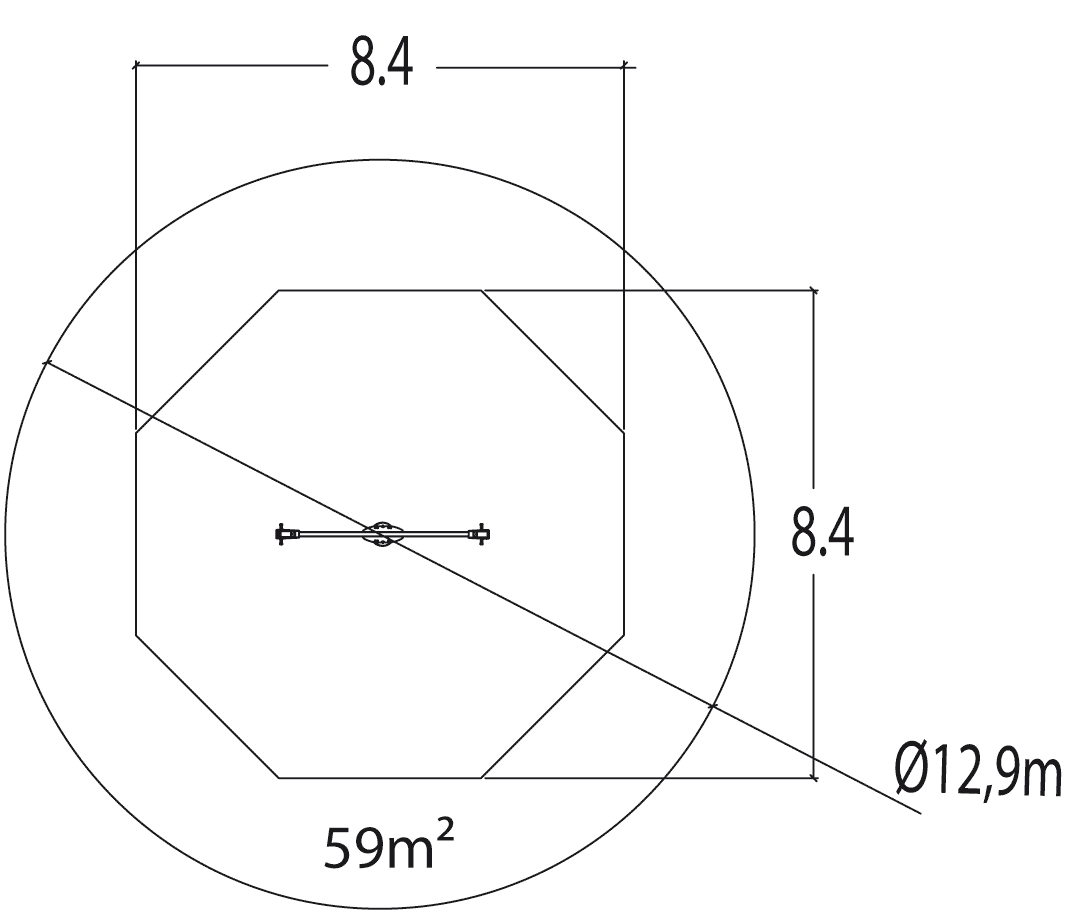

Surface:	59.00 m2
Total weight:	190.26 kg
Weight of the heaviest element:	115.01 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

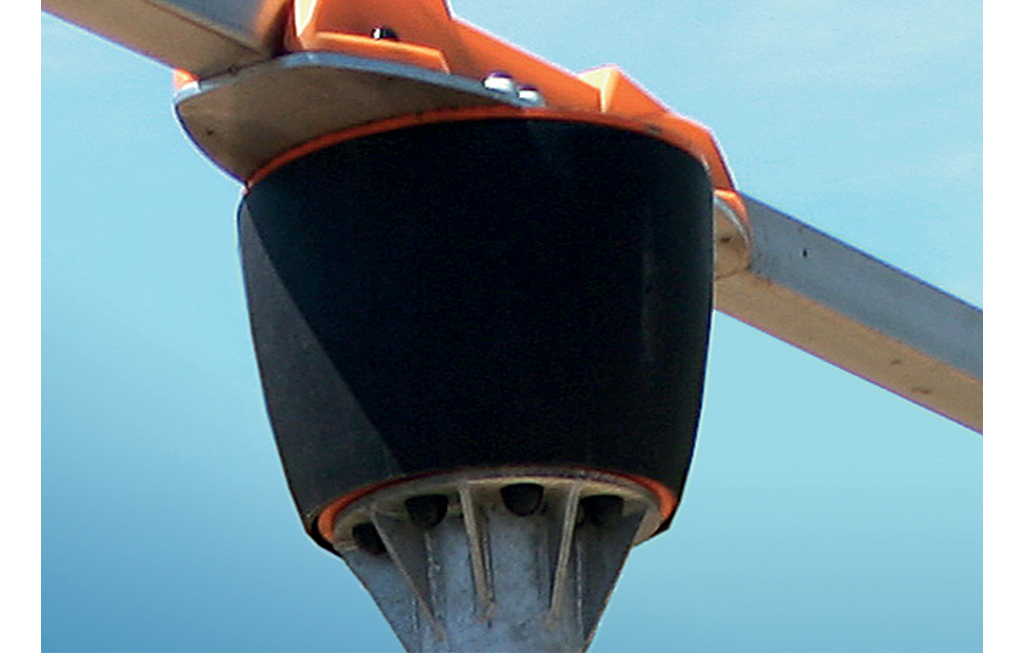

The 75x75mm stainless steel arm is held on the rotary system by a double fixing element. The unit as a whole is bolted to the plate on the galvanised steel post (ø 140mm).
