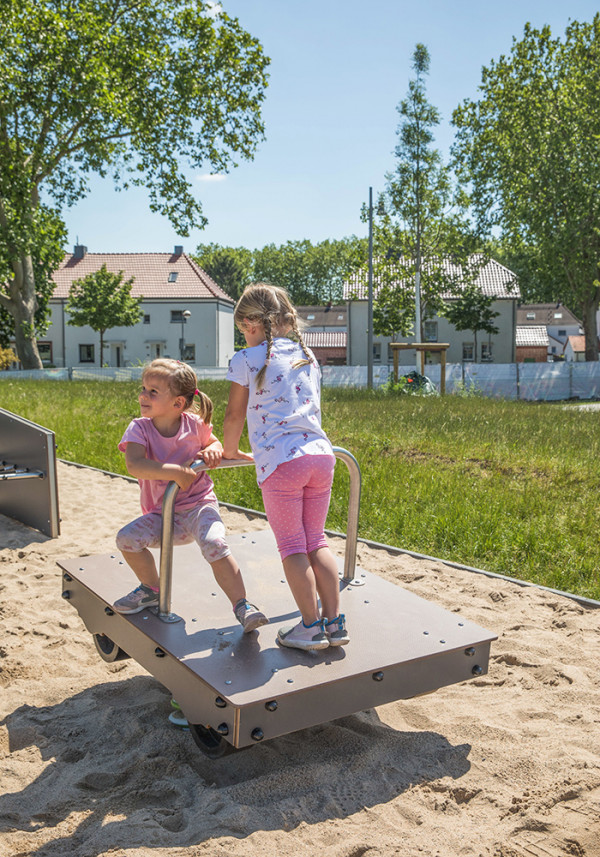

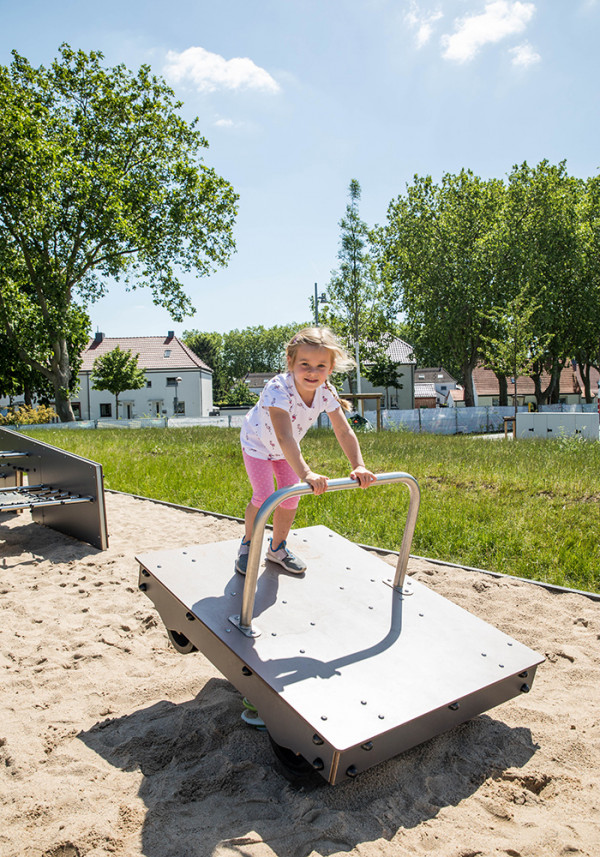

We have created the reference J953® in our "Adventure" range. This module is accessible from 3 years. It can accommodate up to 4 users.

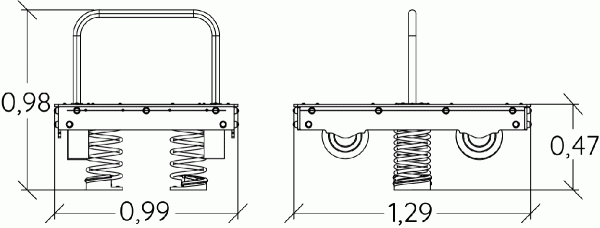

The size of the module is: 1.29 m length, 0.99 m width, 0.98 m. high. The free fall height (FFH) is 0.60 m.

Specifications

Age range: 3+
Number of users: 4 users
FFH : 0.60 m
Size: 1.29 x 0.99 x 0.98 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00

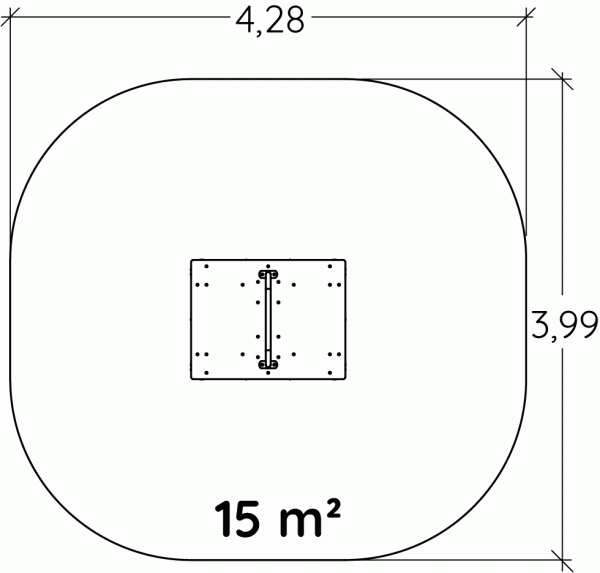

Surface: 15.00 m2
Total weight: 129.06 kg
Weight of the heaviest element: 11.39 kg

Environmental Indicators

Repairability

Repairability

9.06 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The platform

The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The springs

The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more

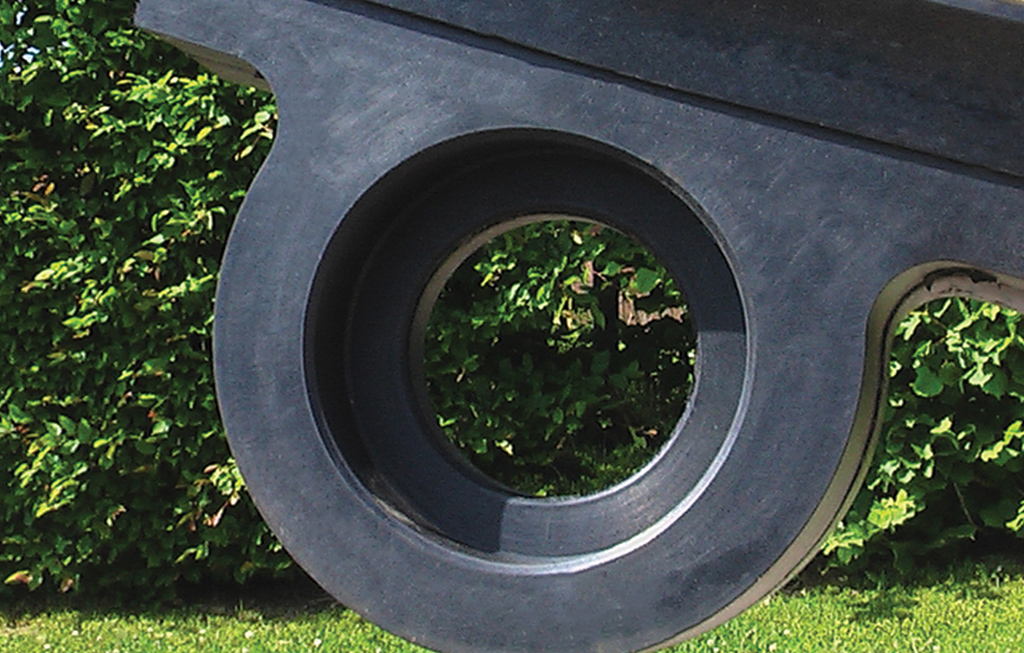

The dampener

The dampener is made from rubber.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
