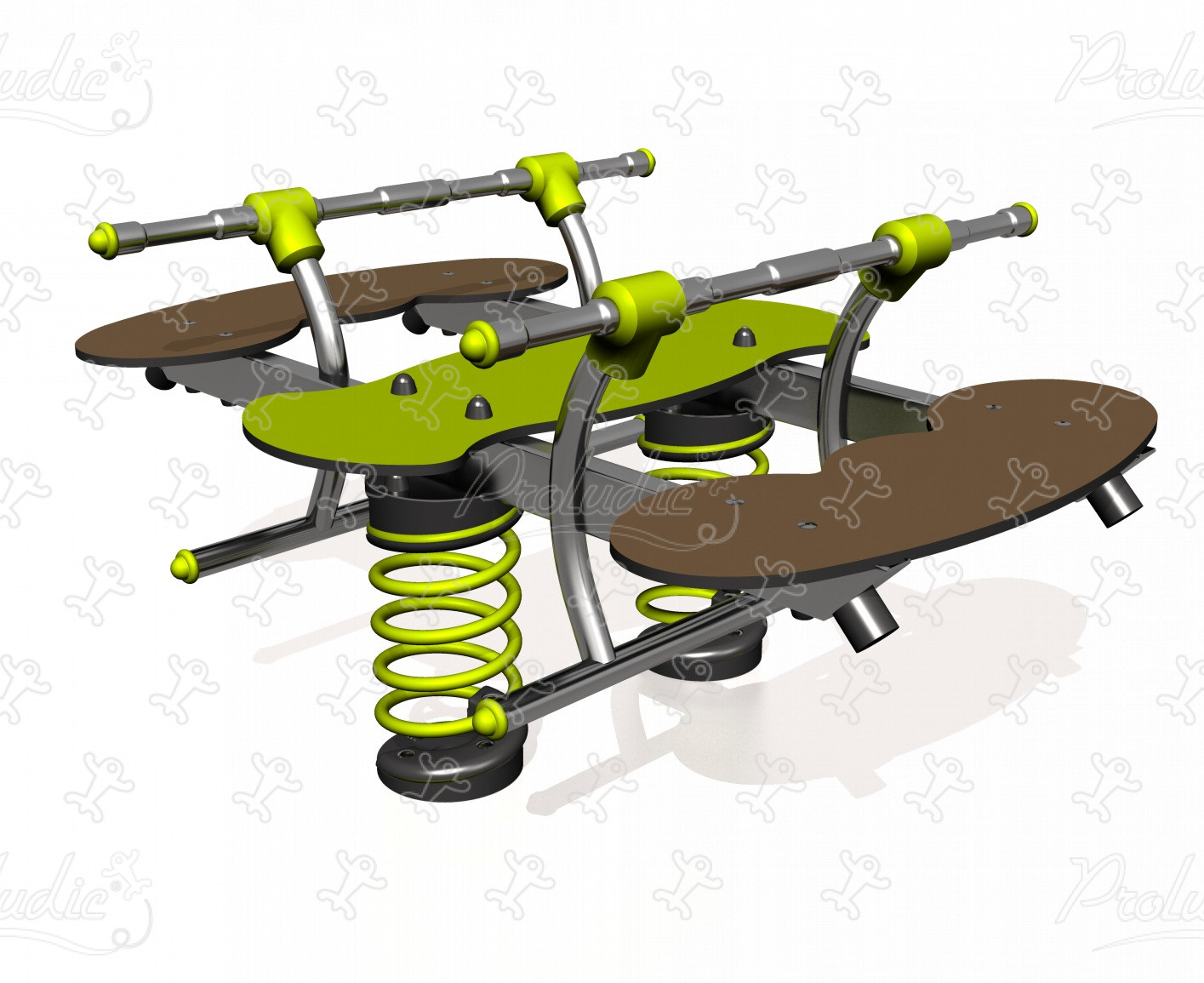

Quatro
J830
We have created the reference J830 in our "Springers" range. This module is accessible from 2 years. It can accommodate up to 6 players.
The size of the module is: 1.44 m length, 1.03 m width, 0.70 m. high. The free fall height (FFH) is 0.70 m.
| Age range: | 2+ |
| Number of players: | 6 players |
| FFH : | 0.70 m |
| Size: | 1.44 x 1.03 x 0.70 m |
| Number of installers: | 1 |
| Installation time: | 02:15:00 |
| Surface: | 11.50 m2 |
| Total weight: | 74.95 kg |
| Weight of the heaviest element: | 25.79 kg |
Repairability
9.17 /10
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The seats are made from a 12.5mm thick textured and non-slip compact material (HPL).
The tubes (Ø 40mm) and the horizontal beams are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
