Climbing structure for children with ropes - J6100®

We have created the reference J6100® in our "Climbing equipment" range. This module is accessible from 6 years. It can accommodate up to 10 players.

The size of the module is: 2.66 m length, 2.66 m width, 2.26 m. high. The free fall height (FFH) is 2.00 m.

Other themes

J6100-C®

11 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Crawling x3

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	6+
Number of players:	10 players
FFH :	2.00 m
Size:	2.66 x 2.66 x 2.26 m

Equipment installation

Number of installers:	3
Installation time:	06:00:00
Concrete volume:	0.38 m3
Surface:	26.00 m2
Total weight:	621.78 kg
Weight of the heaviest element:	63.68 kg

Downloads

Technical fact sheet

Materials sheet

JPEG Image

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Kairn® J6100® playgrounds balancing & climbing equipment climbing equipment image 3d

Kairn® J6100® playgrounds balancing & climbing equipment climbing equipment image side view

Kairn® J6100® playgrounds balancing & climbing equipment climbing equipment image view from above

Materials

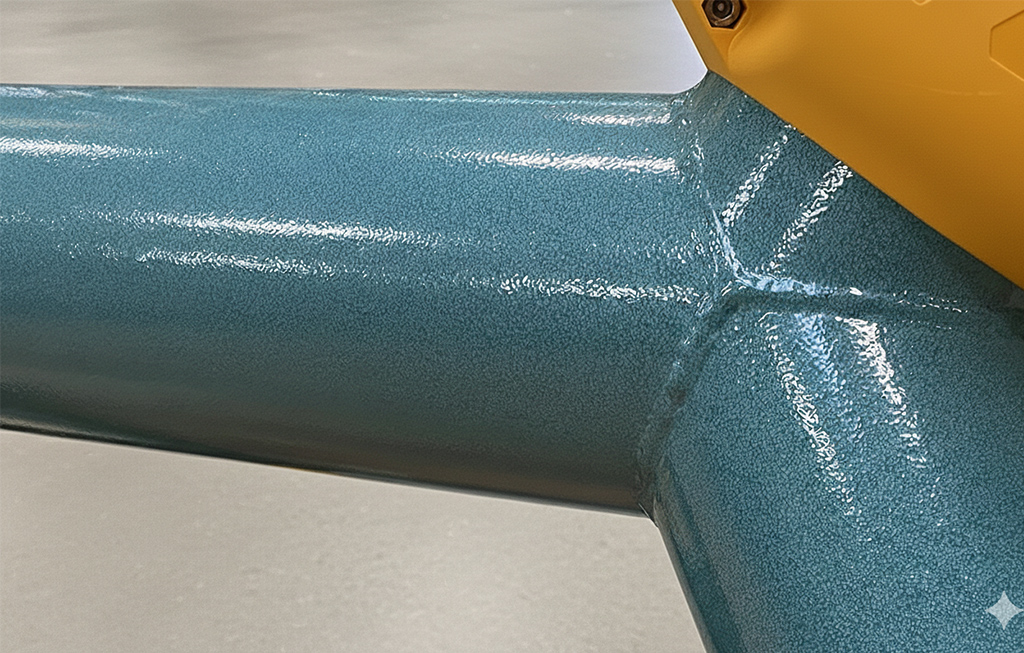

The 168,3mm diameter posts are made of painted galvanised steel.

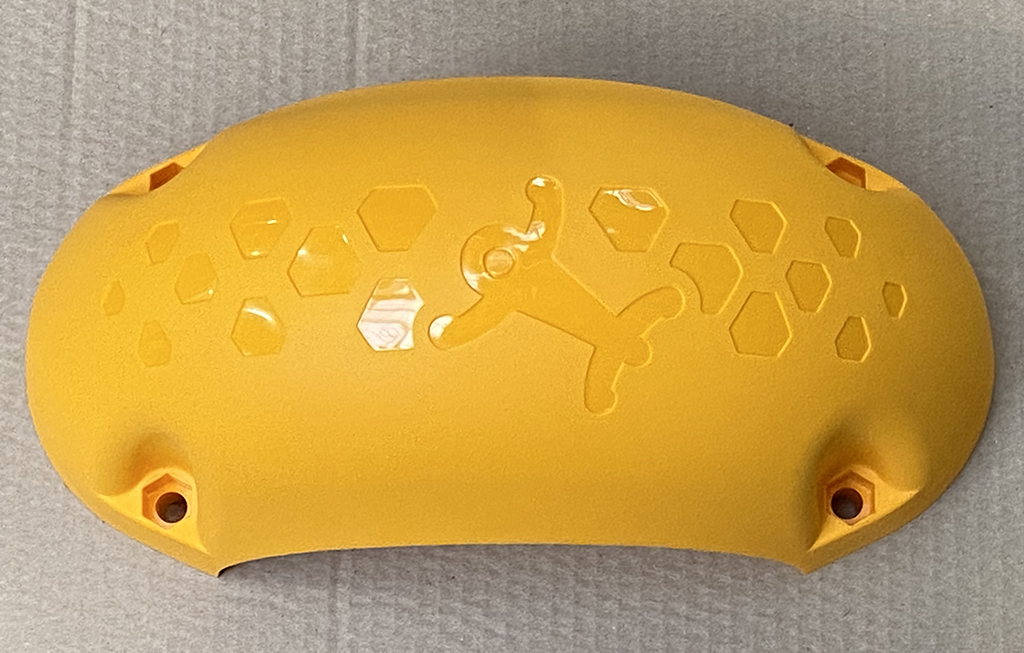

The fixing collars are made of regenerated PA6 polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
