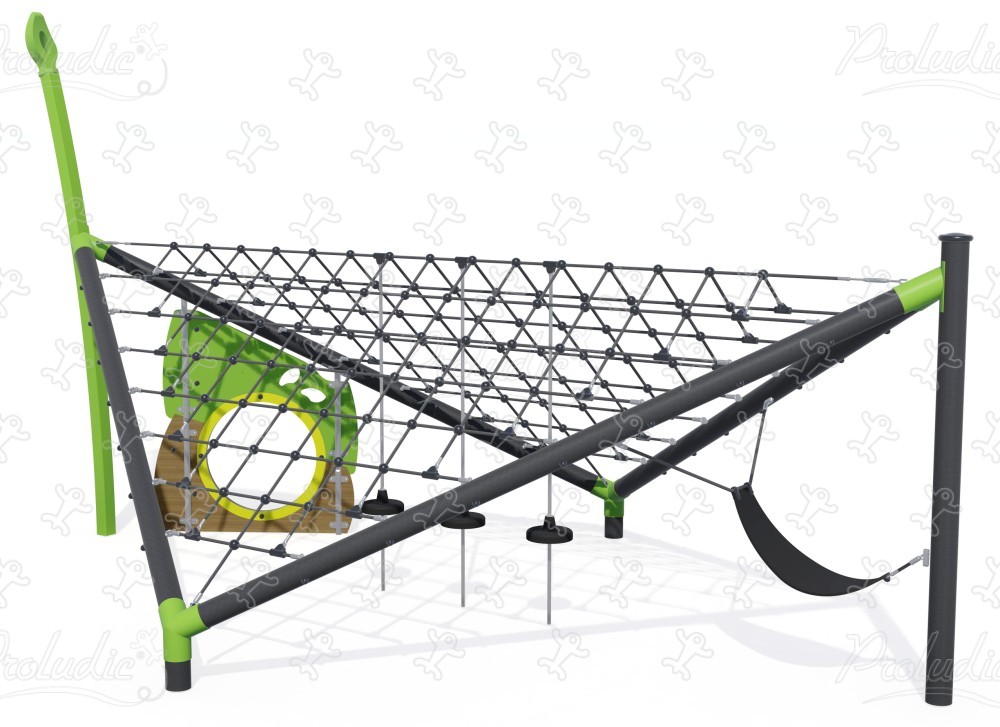

We have created the reference J57005 in our "Climbing equipment" range. This module is accessible from 5 years. It can accommodate up to 15 users.

The size of the module is: 6.53 m length, 4.14 m width, 3.53 m. high. The free fall height (FFH) is 2.00 m.

11 play functions

climbing
Climbing x1
Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.
resting
Resting x4
Resting allows the child to recover from their exertions, and also improve their concentration.
climbing
Climbing x1
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
getting across
Getting across x3
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
crawling
Crawling x1
Crawling is a fun exercise that allows young children to become aware of their body in a small space.
swinging
Swinging x1
To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.
Show more

Specifications

Age range: 5+
Number of users: 15 users
FFH : 2.00 m
Size: 6.53 x 4.14 x 3.53 m

Equipment installation

Number of installers: 2
Installation time: 08:00:00
Concrete volume: 0.90 m3
Surface: 52.00 m2
Total weight: 210.06 kg
Weight of the heaviest element: 33.66 kg

Environmental Indicators

Repairability

Repairability

9.44 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

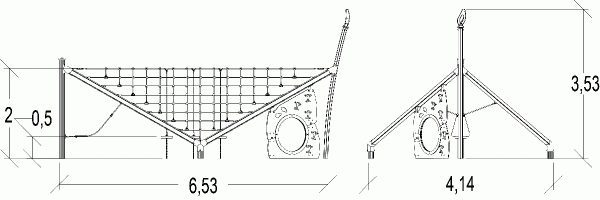

Side view
Side view

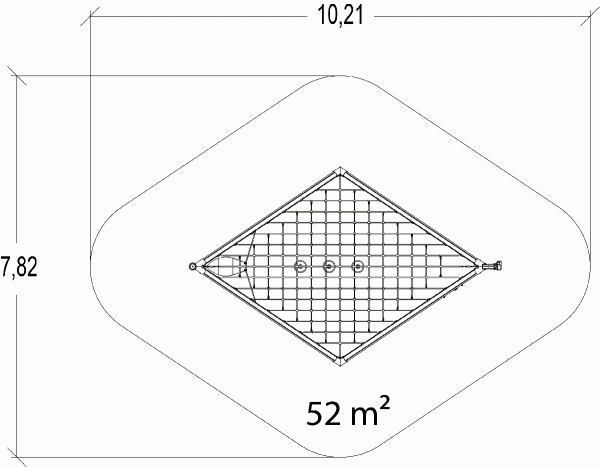

View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The caps

The caps are made of rotary moulded polyethylene.

The junction pieces

The junction pieces are made of painted galvanised steel.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The steps

The steps are made with a non-slip rubber overmould.

The seat

The seat is made from rubber, 13mm thick.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The climbing holds

The climbing holds are made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
