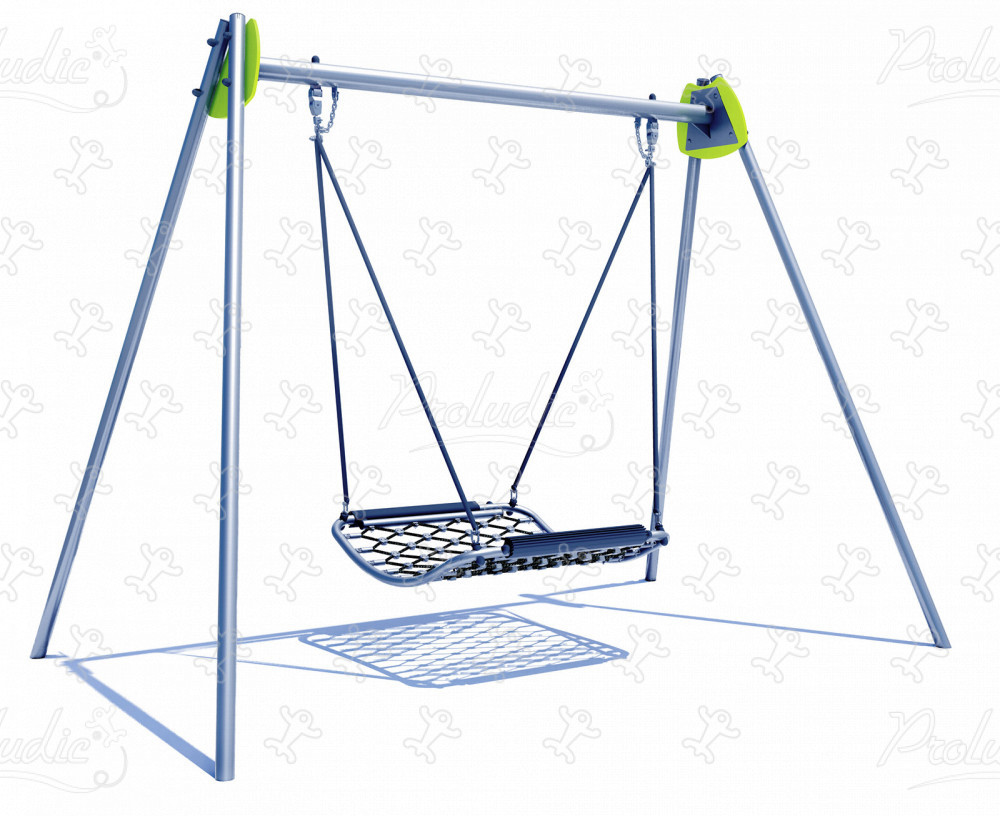

We have created the reference J445® in our "Swings" range. This module is accessible from 2 years. It can accommodate up to 5 users.

The size of the module is: 3.36 m length, 2.08 m width, 2.58 m. high. The free fall height (FFH) is 1.42 m.

3 play functions

swinging
Swinging x1
To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.
meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
resting
Resting x1
Resting allows the child to recover from their exertions, and also improve their concentration.

Specifications

Age range: 2+
Number of users: 5 users
FFH : 1.42 m
Size: 3.36 x 2.08 x 2.58 m

Equipment installation

Number of installers: 2
Installation time: 04:00:00
Concrete volume: 0.30 m3
Surface: 15.50 m2
Total weight: 119.54 kg
Weight of the heaviest element: 28.34 kg

Environmental Indicators

Repairability

Repairability

9.29 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

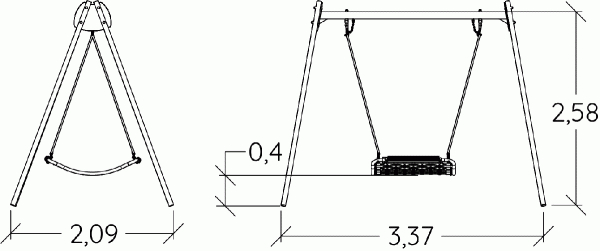

Side view
Side view
View from above
View from above

Materials

The horizontal beam

The horizontal beam is manufactured from 89mm diameter galvanised steel.

The support legs

The support legs are made from 60mm galvanised steel.

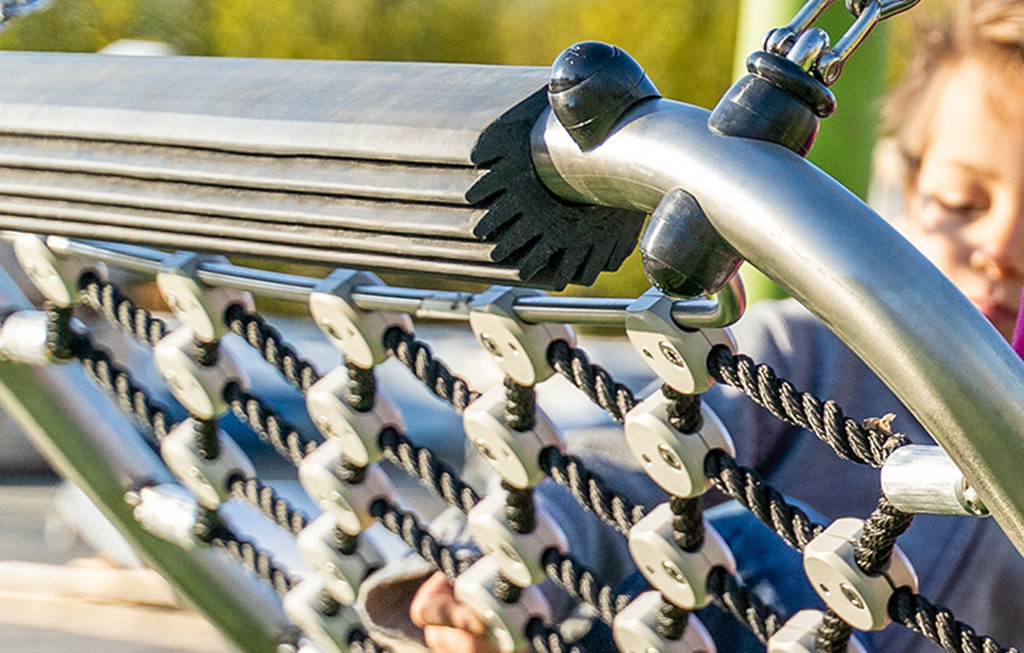

The braided rope seat

The braided rope seat is made of galvanised steel, covered in polyester. The connecting parts are in painted aluminium. The seat is fitted to a stainless steel frame... structure, made up of two 40 mm diameter posts, and is suspended from small link stainless steel chains covered with thermal retracted polyethylene. Read more

The double joined swing mechanism

The double joined swing mechanism is made of stainless steel. A safety chain provides additional support for the pod.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
