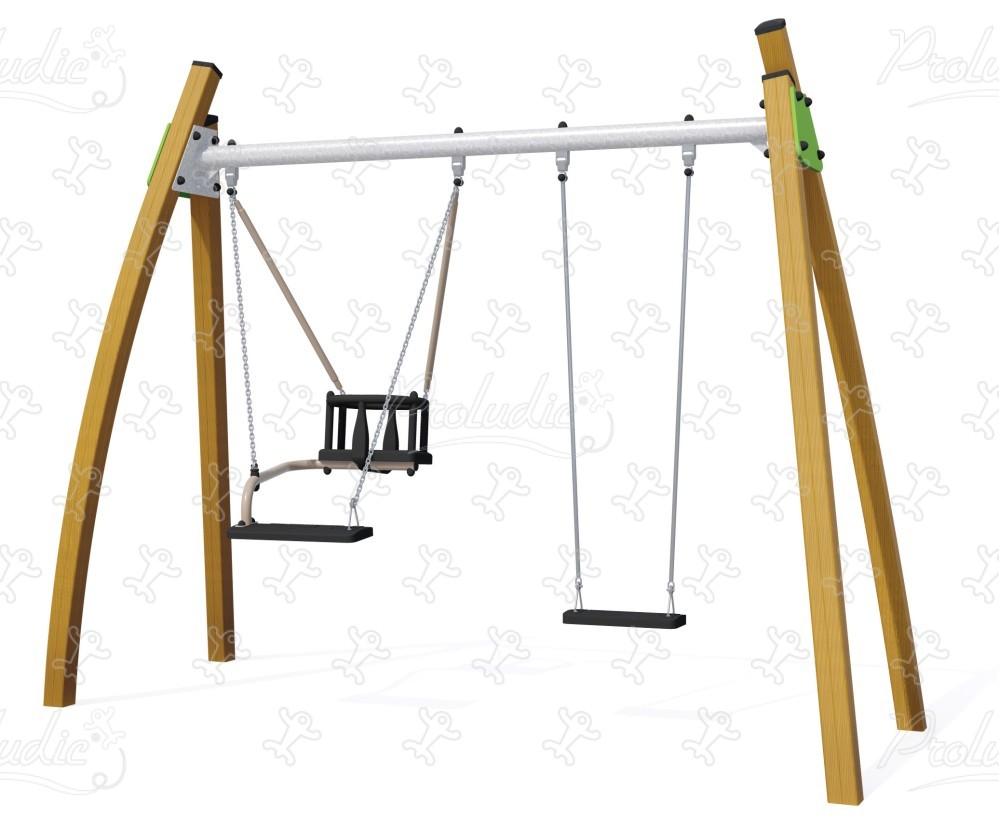

Swings - J437-C

We have created the reference J437-C in our "Swings" range. This module is accessible from 1 year. It can accommodate up to 2 users.

The size of the module is: 3.30 m length, 2.00 m width, 2.60 m. high. The free fall height (FFH) is 1.39 m.

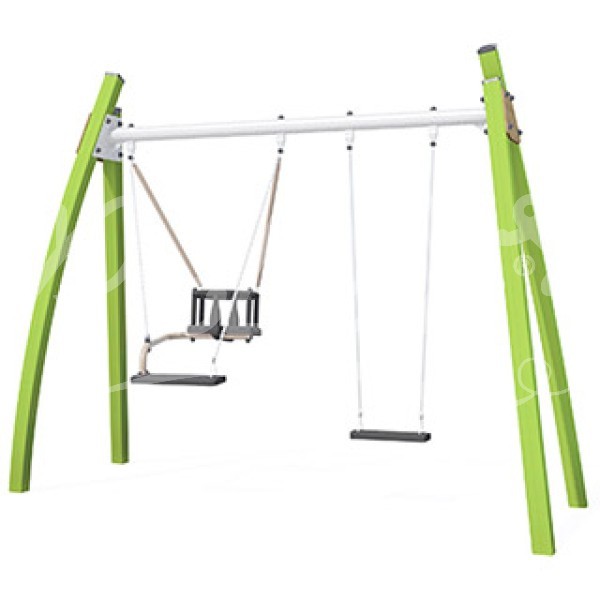

Other finishes available

7 play functions

meeting
Meeting x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
resting
Resting x3
Resting allows the child to recover from their exertions, and also improve their concentration.
swinging
Swinging x3
To create movement, children must be able to coordinate their arms, legs and vision in a coordinated fashion.

Specifications

Age range: 1+
Number of users: 2 users
FFH : 1.39 m
Size: 3.30 x 2.00 x 2.60 m

Equipment installation

Number of installers: 2
Installation time: 02:00:00
Concrete volume: 0.11 m3
Surface: 18.80 m2
Total weight: 149.12 kg
Weight of the heaviest element: 28.50 kg

Environmental Indicators

Repairability

Repairability

9.29 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

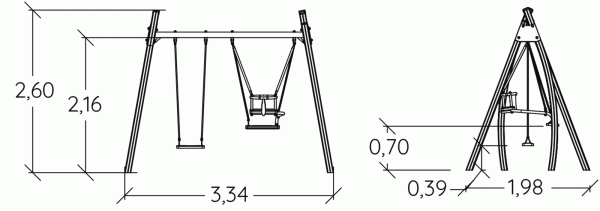

Side view
Side view

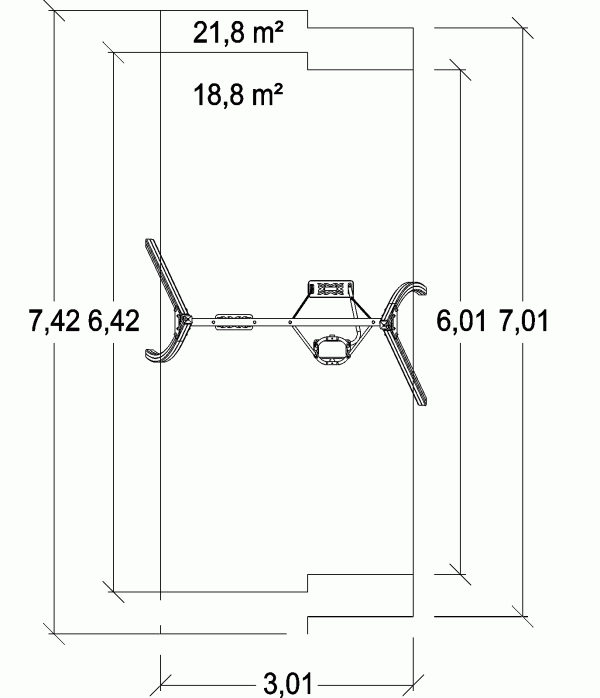

View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The horizontal beam

The horizontal beam is manufactured from 89mm diameter galvanised steel.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The swing bearings

The swing bearings are made of stainless steel.

The Parent/Child seat

The Parent/Child seat consists of 2 seats, connected by a painted stainless steel structure. The Parent seat is made of shock absorbing moulded honeycomb rubber. The seat... fixing brackets are made of 10mm stainless steel wire. The pod swing seat for early childhood is made of polyurethane, which ensures a comfortable seating. The swing chains are made of stainless steel. Read more

The classic swing seat

The classic swing seat is made of shock absorbing moulded honeycomb rubber. The swing chains are made of stainless steel. The seat fixing brackets are made of 10mm... stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
