We have created the reference J4021 in our "Adventure" range. This module is accessible from 2 years. It can accommodate up to 14 users.

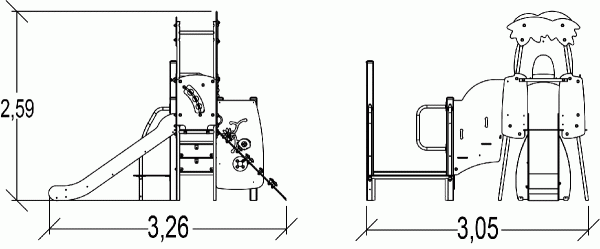

The size of the module is: 3.05 m wide, 3.26 m. deep, 2.59 m. high. The free fall height (FFH) is 1.00 m.
7 play functions
Climbing
x1
Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.
Sliding
x1
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Meeting
x2
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
Handling
x1
Handling is a great activity for developing motor skills and abilities in young children while having fun.
Visual stimulation
x1
It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.
Specifications
| Age range: | 2+ |
| Number of users: | 14 users |
| FFH : | 1.00 m |
| Size: | 3.05 x 3.26 x 2.59 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 08:00:00 |
| Concrete volume: | 0.40 m3 |
| Surface: | 30.50 m2 |
| Total weight: | 318.41 kg |
| Weight of the heaviest element: | 26.36 kg |
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.
The platform is made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more
The steps are made from a 12.5mm thick textured and non-slip compact material (HPL).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
The abacus spheres are made of polycarbonate sheets.
Plastic parts are made of injected polyamide.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
