Shoulder disc - Fun outdoor fitness equipment - J37204®

We have created the reference J37204® in our "ACTI’Fit" range. This module is accessible from 10 years. It can accommodate up to 1 player.

The size of the module is: 0.90 m length, 0.63 m width, 1.80 m. high.

In brief

Sports Equation

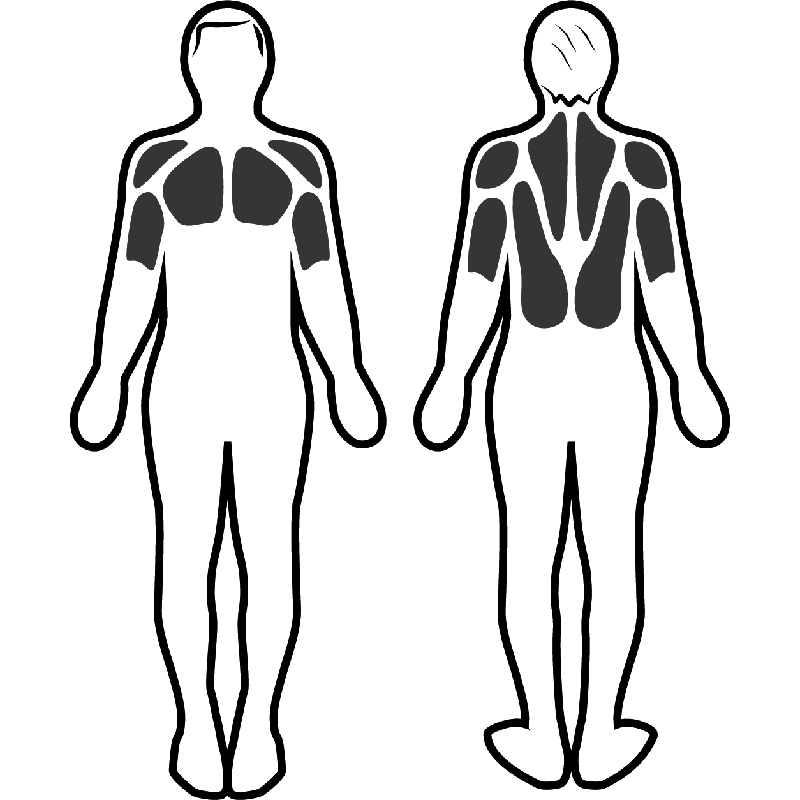

Muscle stimulation

Movement

1 sporting activity

Spinning x1

3 ludo-sport motivations

Application Acti'Fun

Progressive design

Challenge

Specifications

Age range:	10+
Number of players:	1 player
Size:	0.90 x 0.63 x 1.80 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.10 m3
Surface:	12.00 m2
Total weight:	42.27 kg
Weight of the heaviest element:	16.22 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Shoulder disc J37204® sport and fitness acti’fun acti’fit video

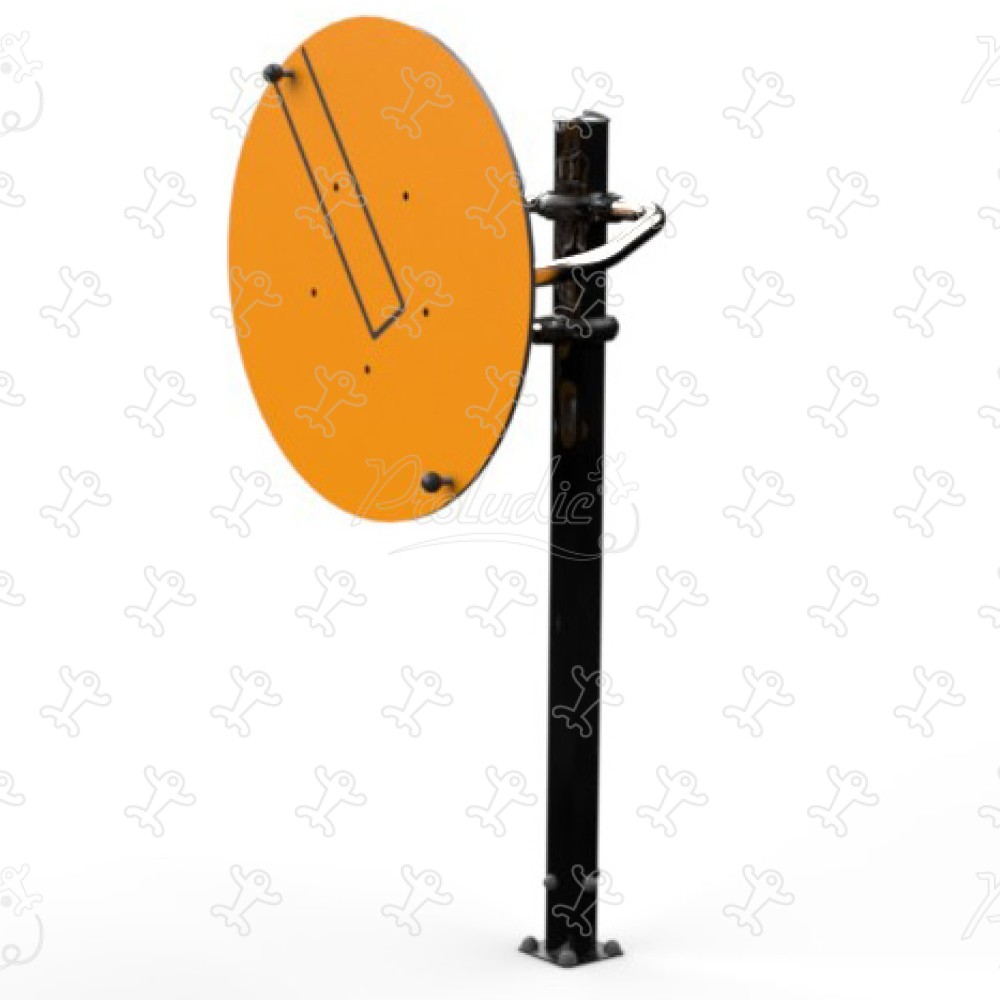

Shoulder disc J37204® sport and fitness acti’fun acti’fit image 3d

Shoulder disc J37204® sport and fitness acti’fun acti’fit image photo

Shoulder disc J37204® sport and fitness acti’fun acti’fit image side view

Shoulder disc J37204® sport and fitness acti’fun acti’fit image view from above

Materials

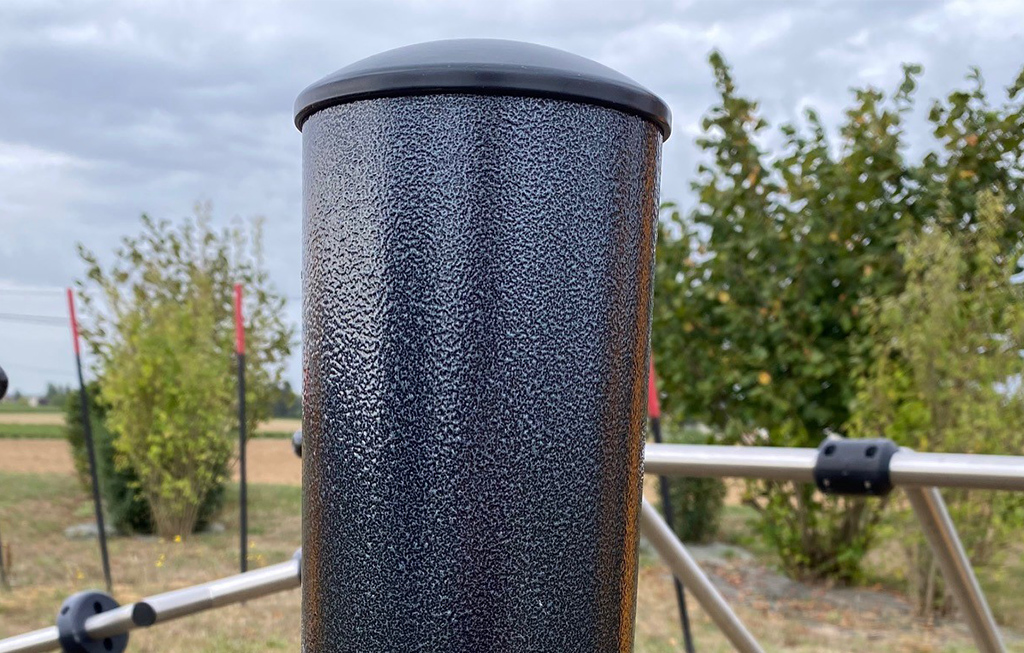

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of painted aluminium. Read more

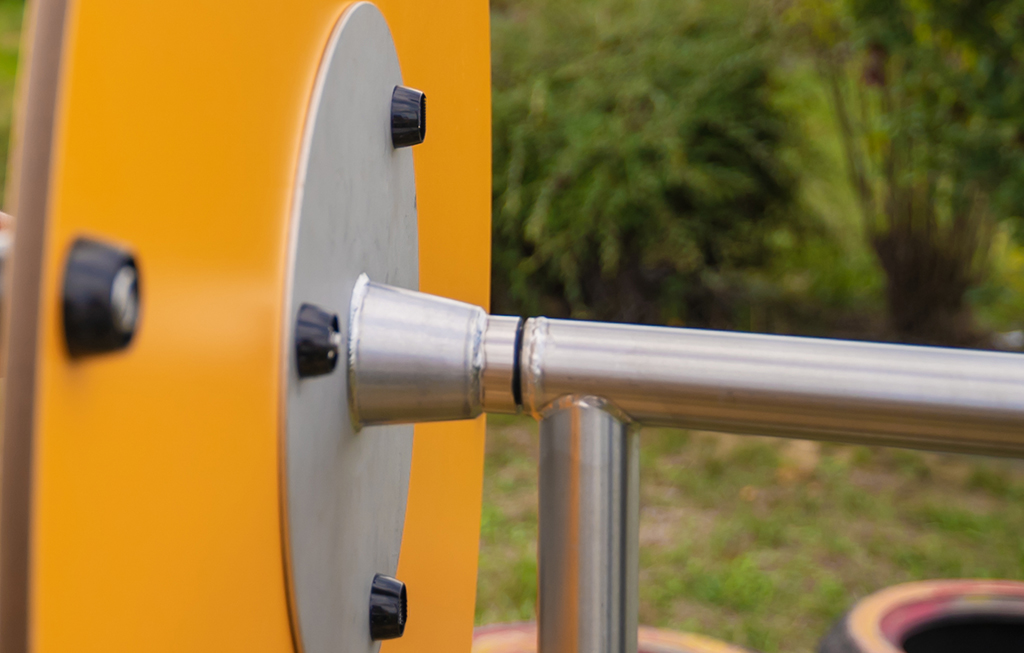

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixing collars are made of painted aluminium.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
