We have created the reference J2687 in our "Adventure" range. This module is accessible from 3 years. It can accommodate up to 32 users.
The size of the module is: 7.71 m length, 5.92 m width, 5.39 m. high. The free fall height (FFH) is 2.60 m.
30 play functions
Sliding
x2
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Meeting
x2
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
Handling
x3
Handling is a great activity for developing motor skills and abilities in young children while having fun.
Hiding
x1
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
Balancing
x2
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
Thinking
x2
Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.
Tactile stimulation
x3
Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.
Visual stimulation
x2
It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.
Climbing
x6
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
Getting across
x2
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
Specifications
| Age range: | 3+ |
| Number of users: | 32 users |
| FFH : | 2.60 m |
| Size: | 7.71 x 5.92 x 5.39 m |
Equipment installation
| Number of installers: | 4 |
| Installation time: | 40:00:00 |
| Concrete volume: | 1.30 m3 |

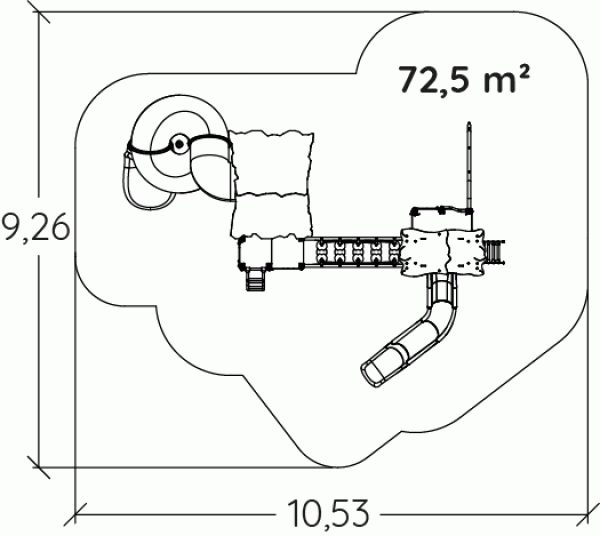

| Surface: | 72.50 m2 |
| Total weight: | 1633.73 kg |
| Weight of the heaviest element: | 53.29 kg |
Environmental Indicators
Repairability
9.48 /10
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The tubular slide is made of rotomoulded polyethylene.
The steps of the catwalk are made with a non-slip rubber overmould.
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
