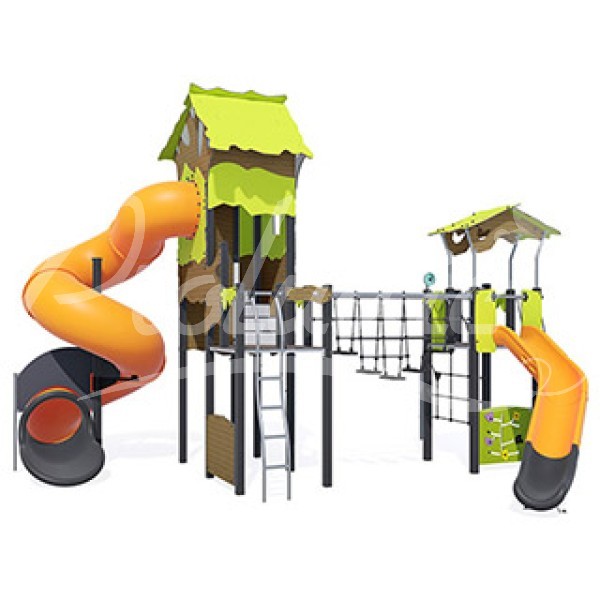

Adventure - The tree top tower - J2683®

We have created the reference J2683® in our "Adventure" range. This module is accessible from 3 years. It can accommodate up to 30 users.

The size of the module is: 5.01 m length, 3.07 m width, 5.39 m. high. The free fall height (FFH) is 2.37 m.

19 play functions

climbing
Climbing x1
Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.
role play
Role play x1
Role play promotes the child's intellectual and social skills.
sliding
Sliding x1
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x4
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
handling
Handling x1
Handling is a great activity for developing motor skills and abilities in young children while having fun.
hiding
Hiding x1
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.
taking shelter
Taking shelter x1
Finding a small refuge to shelter in ensures children have a space of their own.
visual stimulation
Visual stimulation x1
It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.
climbing
Climbing x5
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
thinking
Thinking x1
Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.
tactile stimulation
Tactile stimulation x1
Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.
Show more

Specifications

Age range: 3+
Number of users: 30 users
FFH : 2.37 m
Size: 5.01 x 3.07 x 5.39 m

Equipment installation

Number of installers: 3
Installation time: 40:00:00
Concrete volume: 1.80 m3
Surface: 46.50 m2
Total weight: 1236.30 kg
Weight of the heaviest element: 50.00 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

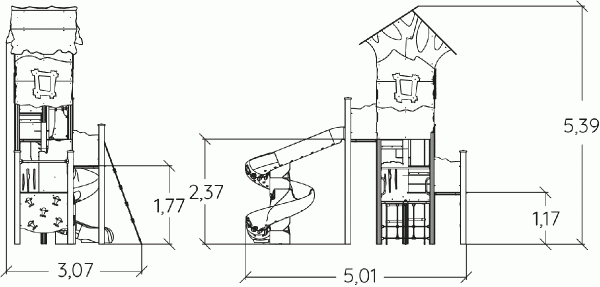

Side view
Side view

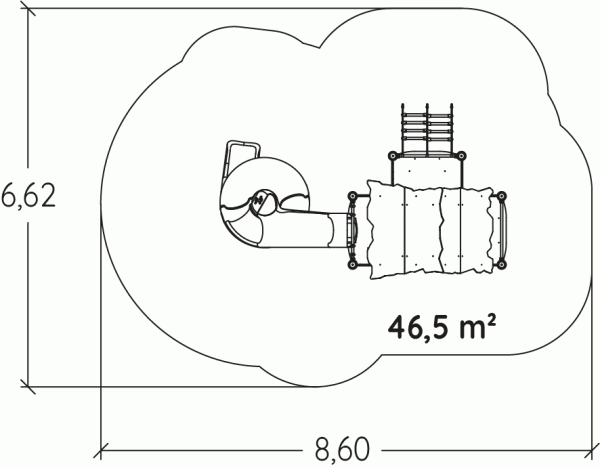

View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms and the climbing walls

The platforms and the climbing walls are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

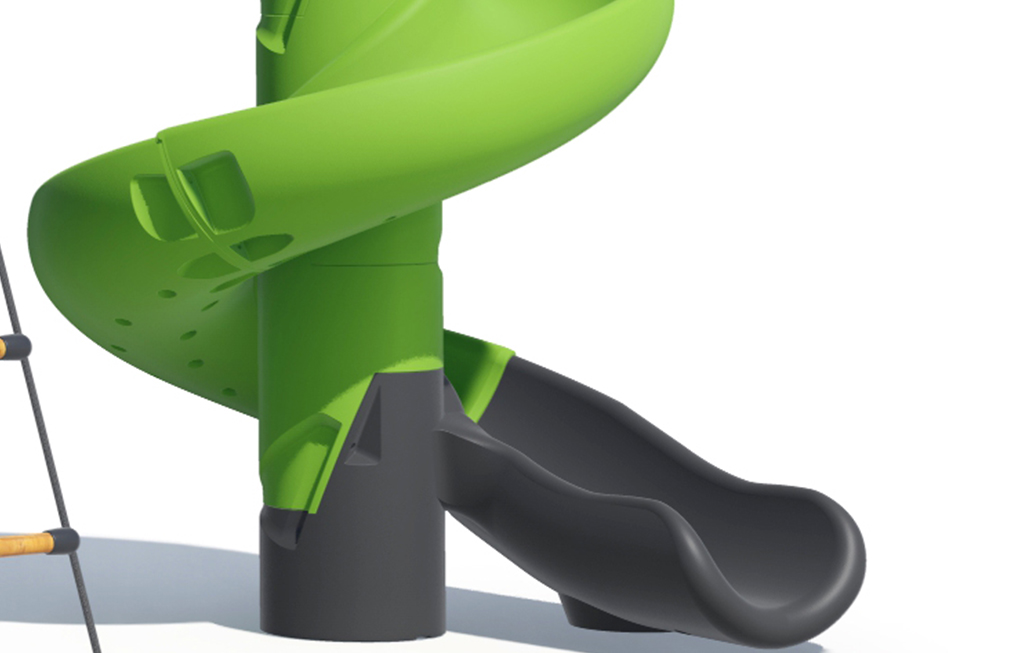

The slide

The slide is made of rotomoulded polyethylene.

The ladder rungs

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.

The climbing holds

The climbing holds are made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
