Multi Use Games Areas 30x15 with angled corners - Height: 3 fences - J22217

We have created the reference J22217 in our "Multi-Use Games Areas" range. This module is accessible from 6 years. It can accommodate up to 25 players.

The size of the module is: 29.50 m length, 15.20 m width, 3.90 m. high.

3 sports activities

Basketball x1

Football x1

Handball x1

3 ludo-sport motivations

Sharing

Diversity

Challenge

Specifications

Age range:	6+
Number of players:	25 players
Size:	29.50 x 15.20 x 3.90 m

Equipment installation

Number of installers:	3
Installation time:	52:00:00
Concrete volume:	3.80 m3
Total weight:	3066.42 kg
Weight of the heaviest element:	27.36 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

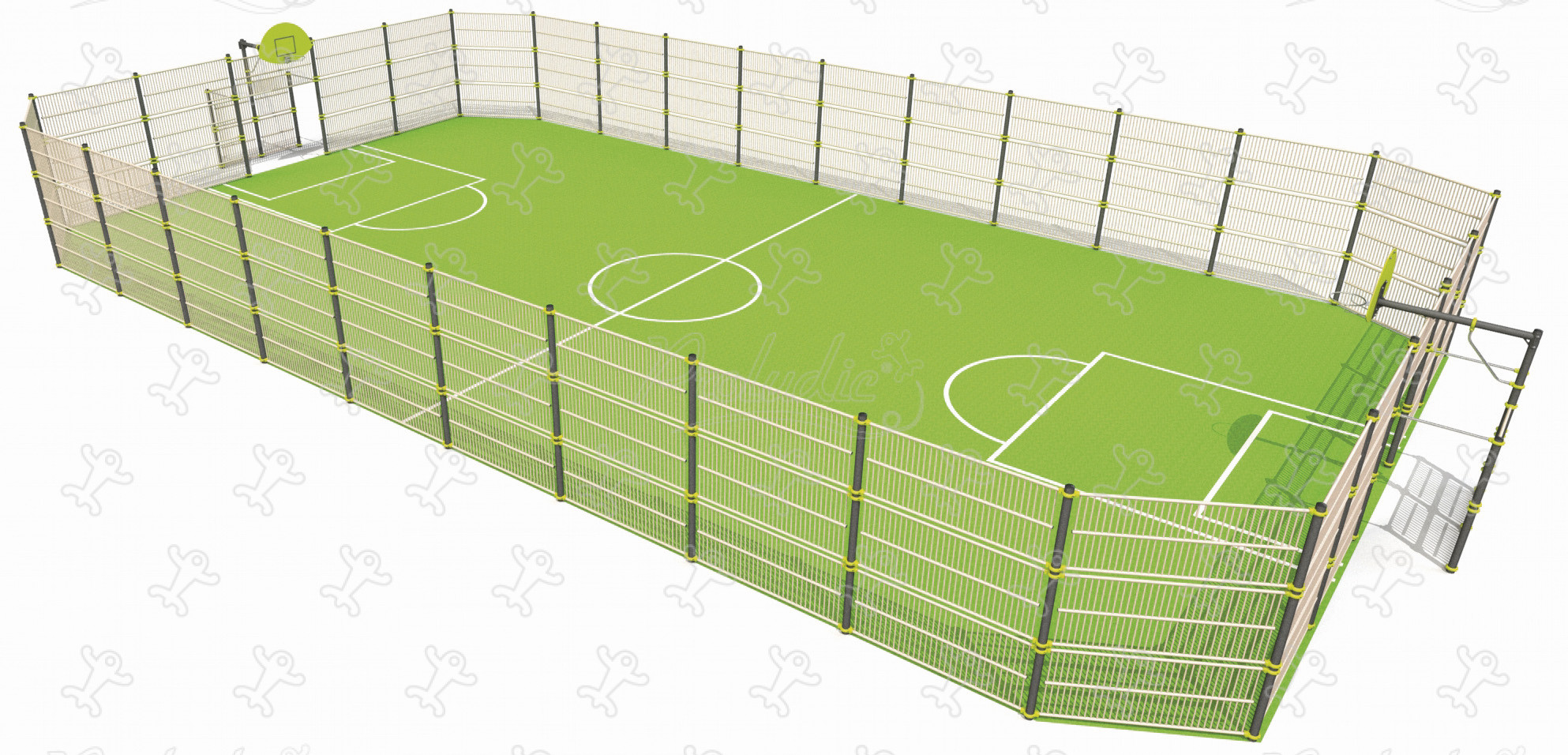

Multi Use Games Area J22217 sport and fitness acti’fun multi-use games areas image 3d

Multi Use Games Area J22217 sport and fitness acti’fun multi-use games areas image side view

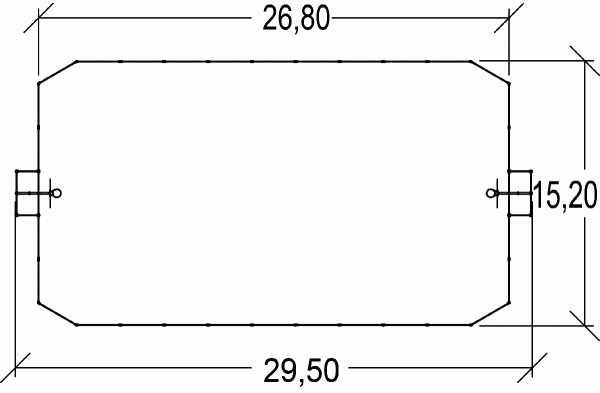

Multi Use Games Area J22217 sport and fitness acti’fun multi-use games areas image view from above

Materials

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. The fixing collars are made of painted aluminium. Read more

The mesh fencing is made of painted aluminum. The goal area mesh fencing is made of painted galvanised steel.

The basketball ring is made of galvanised steel.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
