Senior Jump Bars
JPS20-S-M
JPS20-S-M

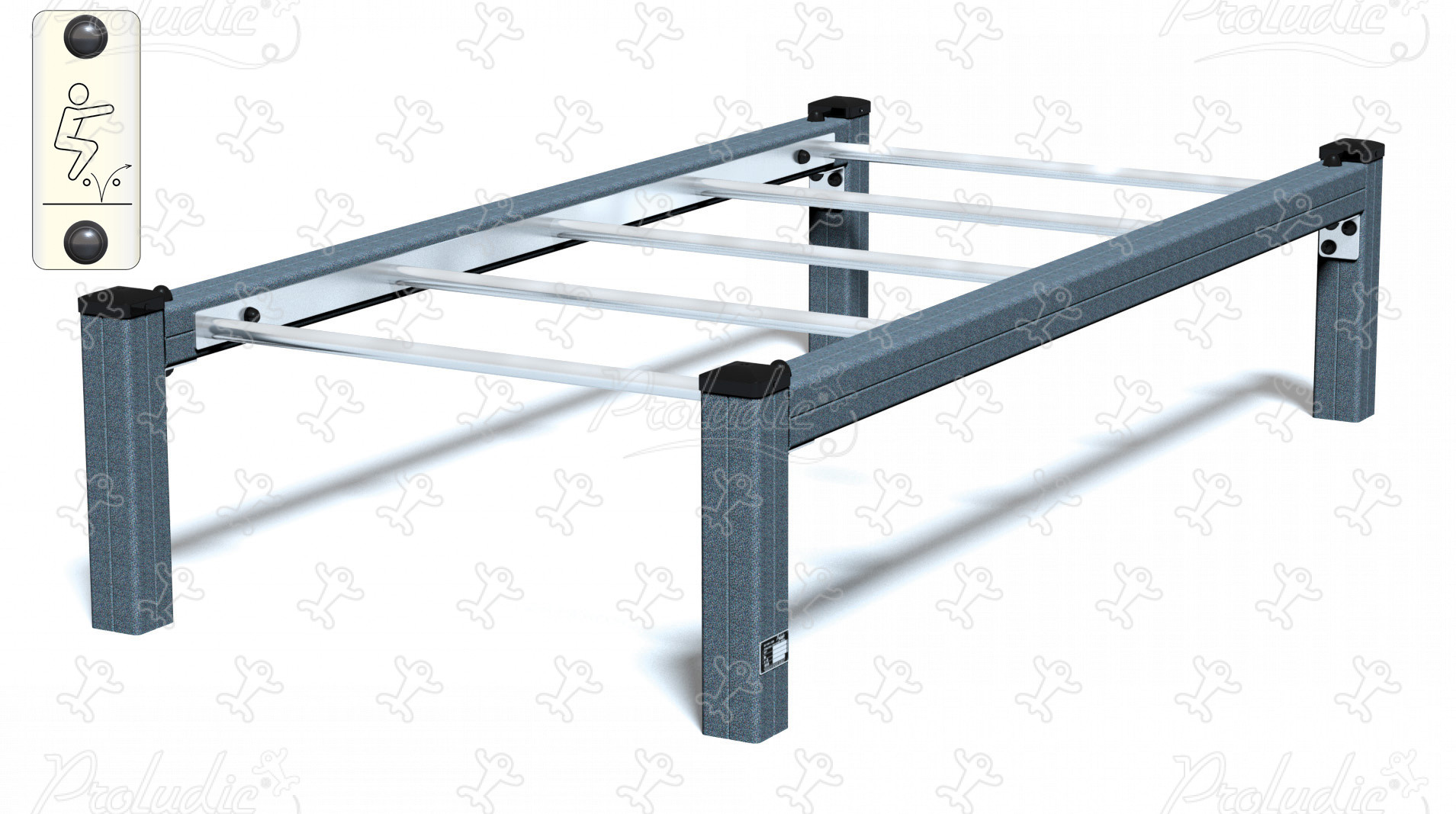

We have created the reference JPS20-S-M in our "ACTI’Ninja" range. This module is accessible from 1.40 m. It can accommodate up to 1 player.

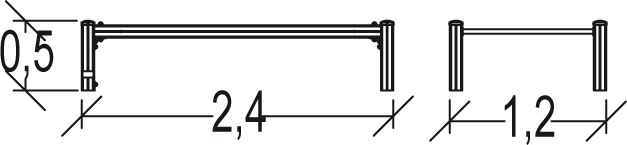

The size of the module is: 2.40 m length, 1.20 m width, 0.50 m. high. The free fall height (FFH) is 0.50 m.

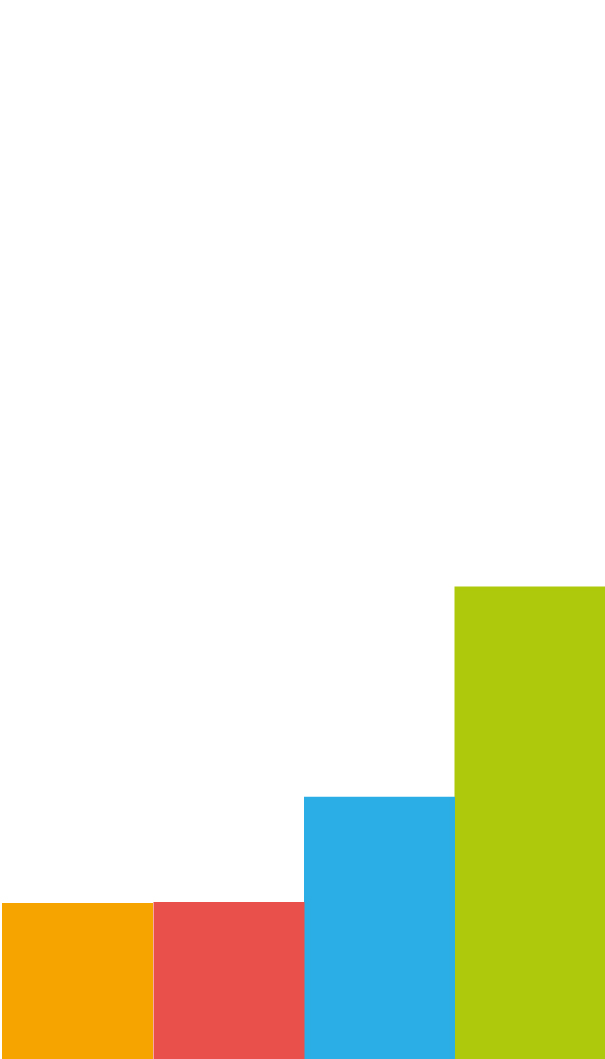

Sports Equation

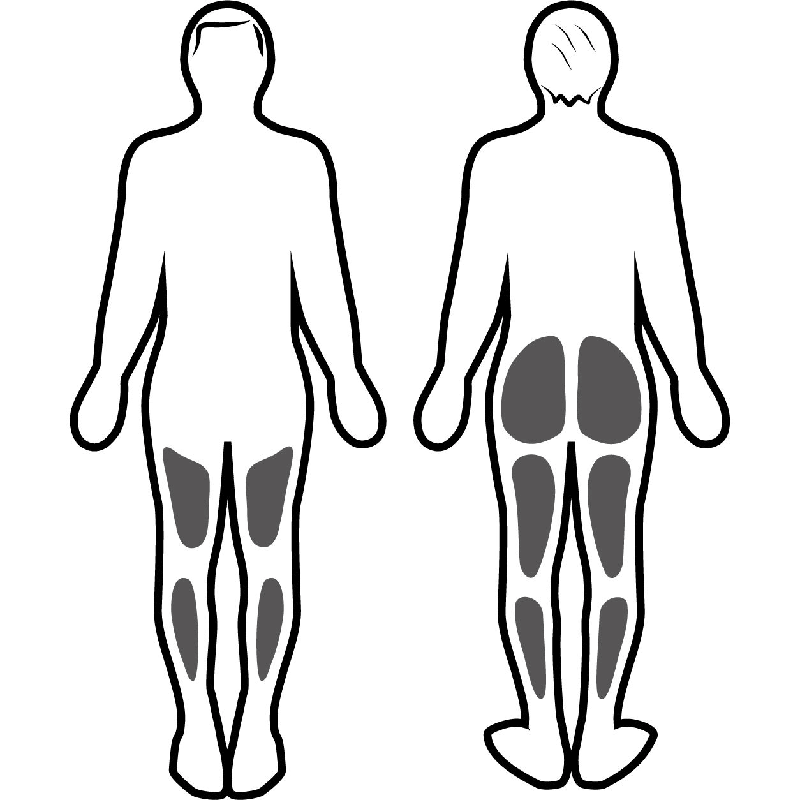

Muscle stimulation

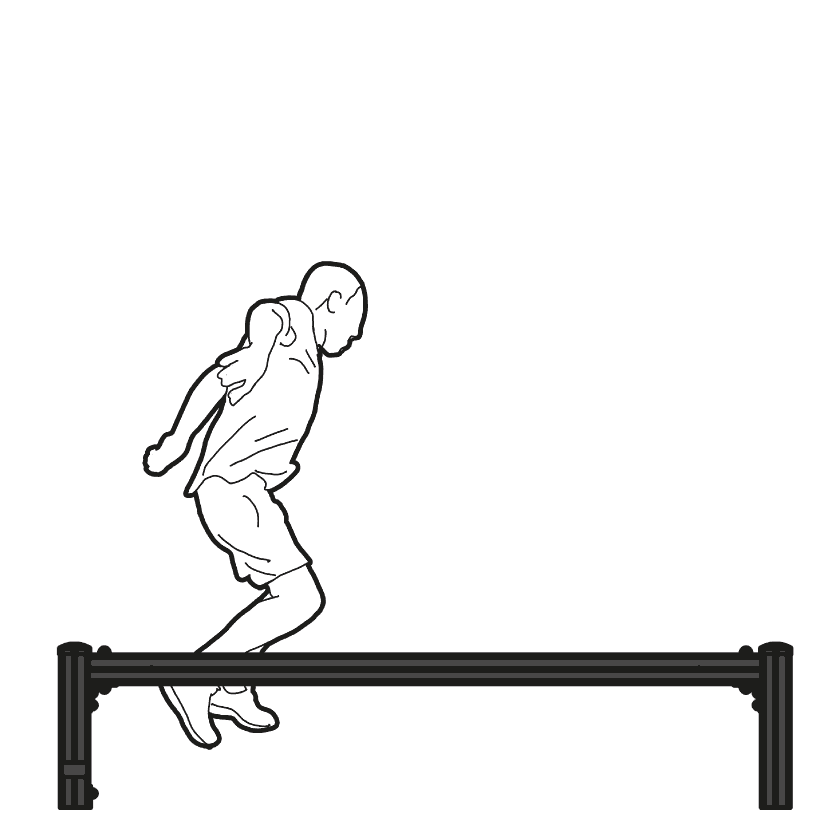

Movement
| Minimum size: | > 1.40 m |
| Number of players: | 1 player |
| FFH : | 0.50 m |
| Size: | 2.40 x 1.20 x 0.50 m |
| Number of installers: | 2 |
| Installation time: | 01:00:00 |
| Concrete volume: | 0.10 m3 |

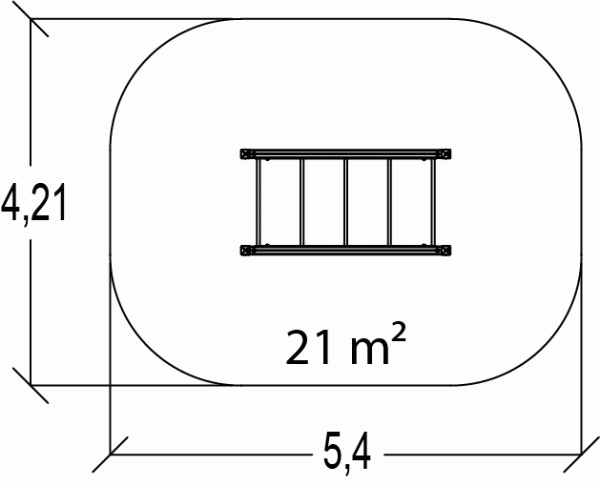

| Surface: | 21.00 m2 |
| Total weight: | 78.83 kg |
| Weight of the heaviest element: | 17.37 kg |
Repairability
9.17 /10
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.
The tubes are made of 34mm diameter galvanised steel.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
