Wooden multiplay equipment with slides, tunnel, climbing wall, and elevated playhouse - with painted green elements - J4947-V

We have created the reference J4947-V in our "Multi play structures" range. This module is accessible from 3 years. It can accommodate up to 34 players.

The size of the module is: 7.29 m length, 8.00 m width, 3.33 m. high. The free fall height (FFH) is 1.70 m.

Standard Product

Complete documentation, TÜV certification issued.

Other finishes available

J4947

29 play functions

Role play x5

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x7

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Handling x1

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their body in a small space.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Taking shelter x2

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x5

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x3

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Tactile stimulation x1

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Specifications

Age range:	3+
Number of players:	34 players
FFH :	1.70 m
Size:	7.29 x 8.00 x 3.33 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	0.20 m3
Surface:	72.00 m2
Total weight:	1230.15 kg
Weight of the heaviest element:	57.68 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

J4947-V playgrounds multiplay equipment multi play structures video

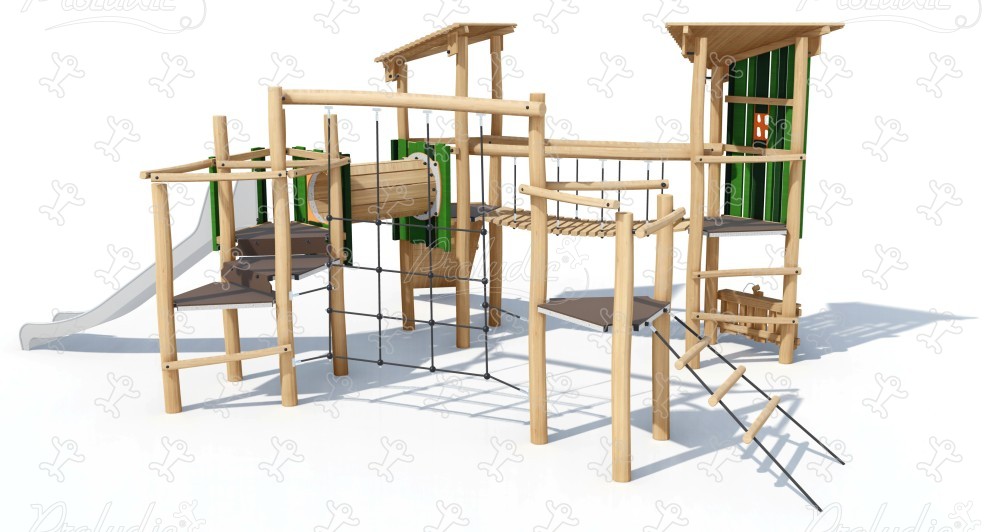

J4947-V playgrounds multiplay equipment multi play structures image 3d

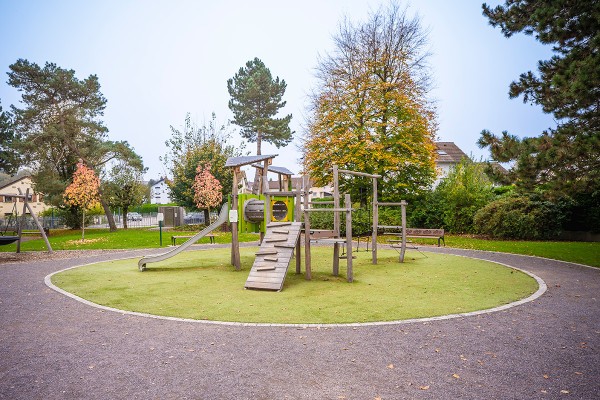

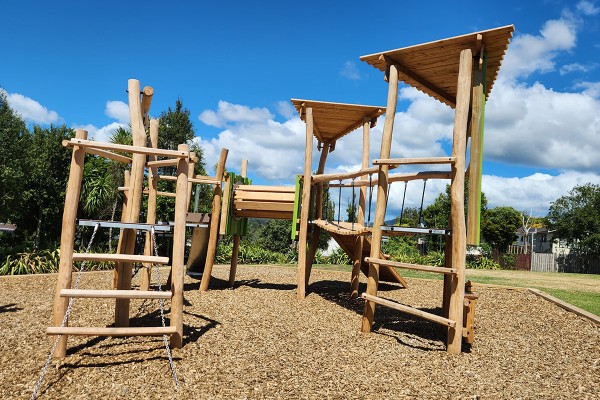

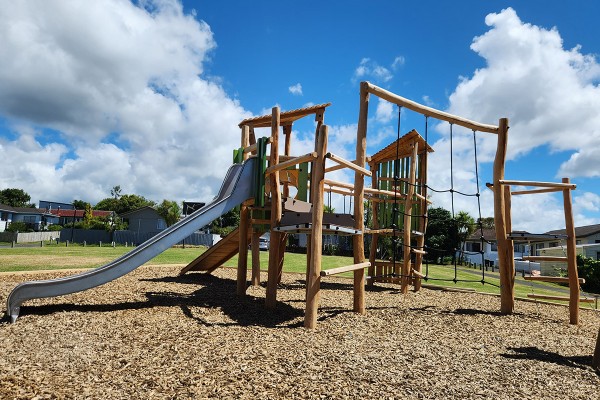

J4947-V playgrounds multiplay equipment multi play structures image photo

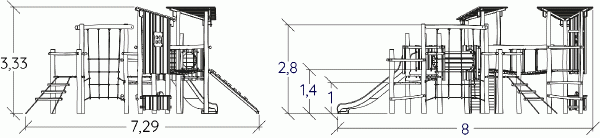

J4947-V playgrounds multiplay equipment multi play structures image side view

J4947-V playgrounds multiplay equipment multi play structures image view from above

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

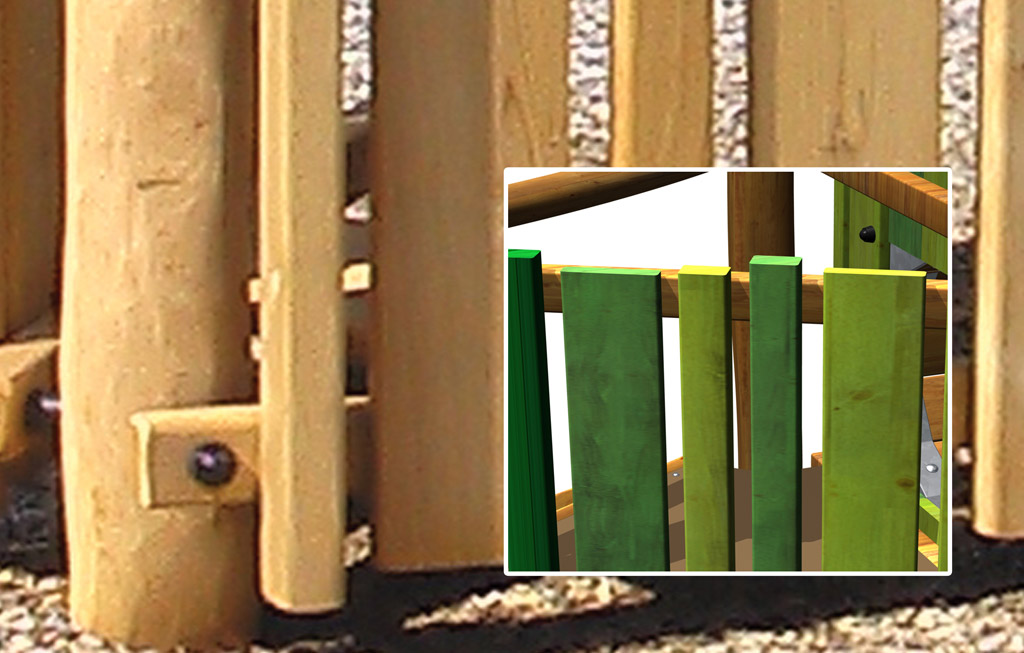

The panels, the climbing wall, the gangway, the shelf and the tunnel are made from natural Robinia wood or Douglas fir (plank sizes 140 x 27mm / 45 x 68mm). Robinia wood or Douglas fir is naturally resistant and long... lasting. The panels are coloured (shades of green) using a staining process. Read more

The roofs are made from robinia wood or Douglas half-logs (80 x 40 mm).

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The slide is made of stainless steel.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
