Multi play structures - J4930

We have created the reference J4930 in our "Multi play structures" range. This module is accessible from 2 years. It can accommodate up to 8 players.

The size of the module is: 3.09 m length, 2.45 m width, 2.93 m. high. The free fall height (FFH) is 1.00 m.

Standard Product

Complete documentation, standard lead times, TÜV certification issued.

Other finishes available

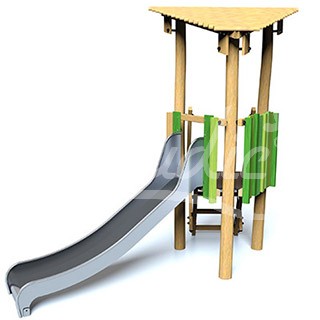

J4930-V

4 play functions

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Specifications

Age range:	2+
Number of players:	8 players
FFH :	1.00 m
Size:	3.09 x 2.45 x 2.93 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Surface:	24.00 m2
Total weight:	303.50 kg
Weight of the heaviest element:	53.27 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

J4930 playgrounds multiplay equipment multi play structures image 3d

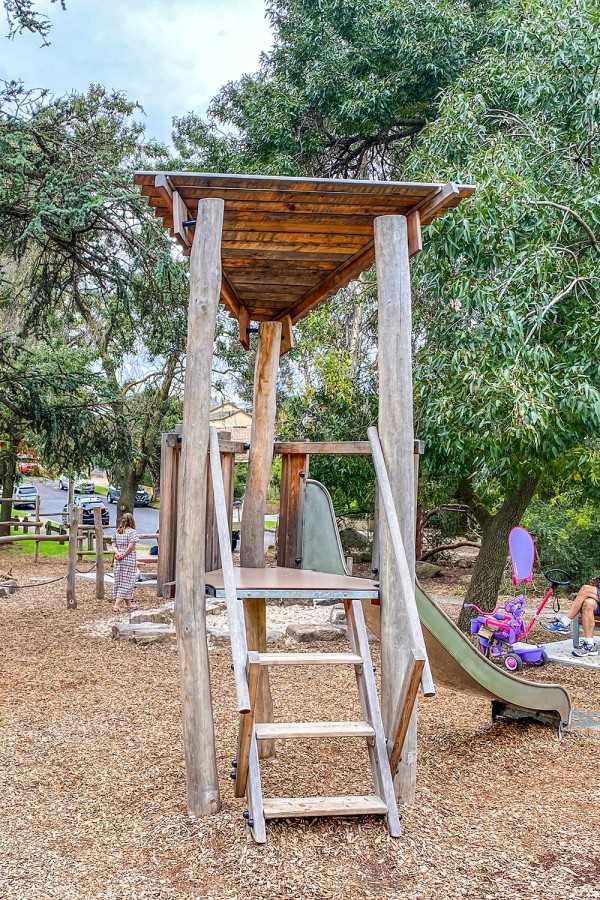

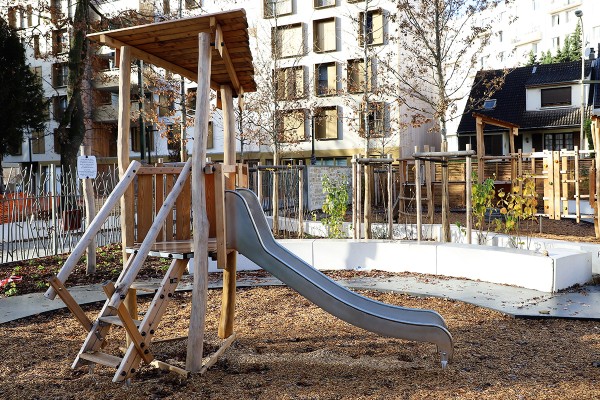

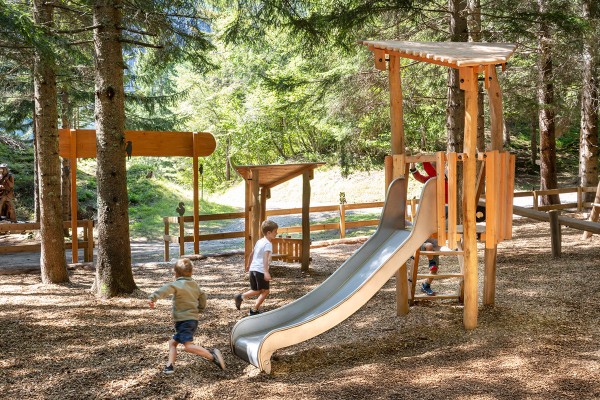

J4930 playgrounds multiplay equipment multi play structures image photo

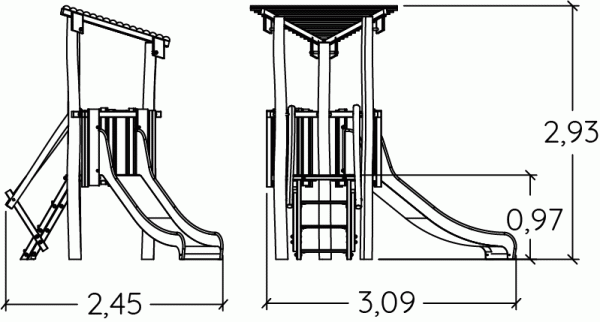

J4930 playgrounds multiplay equipment multi play structures image side view

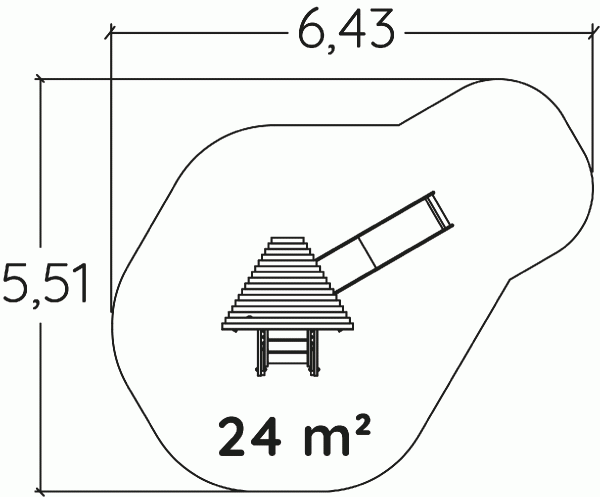

J4930 playgrounds multiplay equipment multi play structures image view from above

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

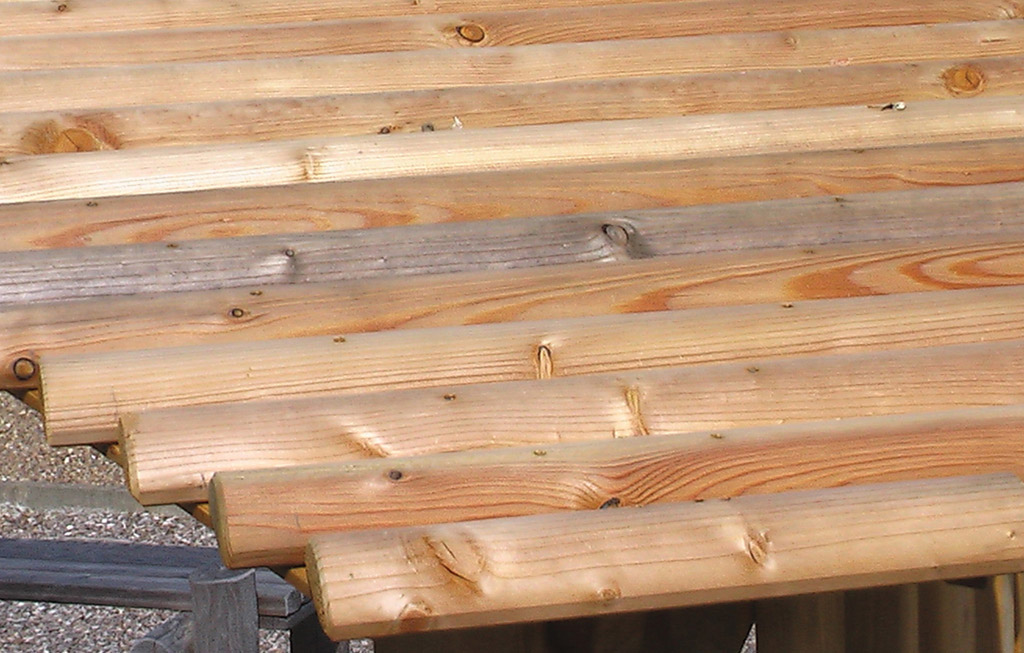

The panels and the steps are made from natural Robinia wood or Douglas fir (plank sizes 140 x 27mm / 45 x 68mm). Robinia wood or Douglas fir is naturally resistant and long... lasting. Read more
