Double wall bars in wood and stainless steel - J4922

We have created the reference J4922 in our "Fitness" range. This module is accessible from 1.40 m. It can accommodate up to 2 players.

The size of the module is: 2.71 m length, 0.16 m width, 2.60 m. high. The free fall height (FFH) is 2.44 m.

Standard Product

Complete documentation, TÜV certification issued.

In brief

Sports Equation

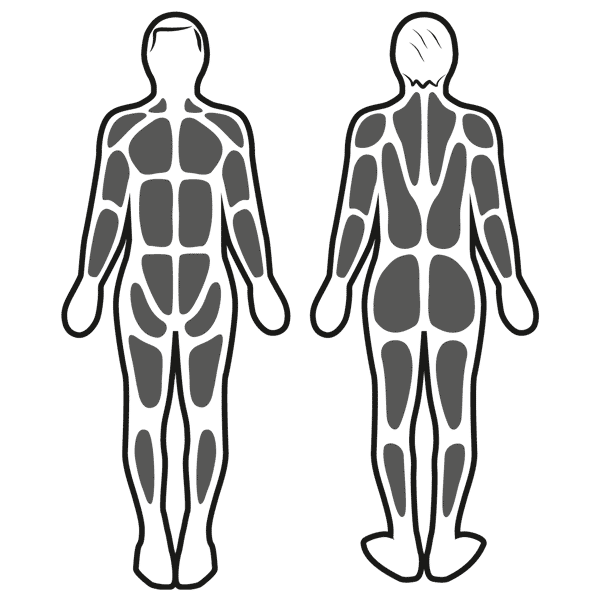

Muscle stimulation

7 sports activities

Hanging x1

This fun activity allows children to explore new ways of playing, of managing space, height and empty space below.

Balancing x2

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Push-ups x2

Specifications

Minimum size:	> 1.40 m
Number of players:	2 players
FFH :	2.44 m
Size:	2.71 x 0.16 x 2.60 m

Equipment installation

Number of installers:	2
Installation time:	01:30:00
Concrete volume:	0.20 m3
Surface:	24.50 m2
Total weight:	137.62 kg
Weight of the heaviest element:	36.30 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

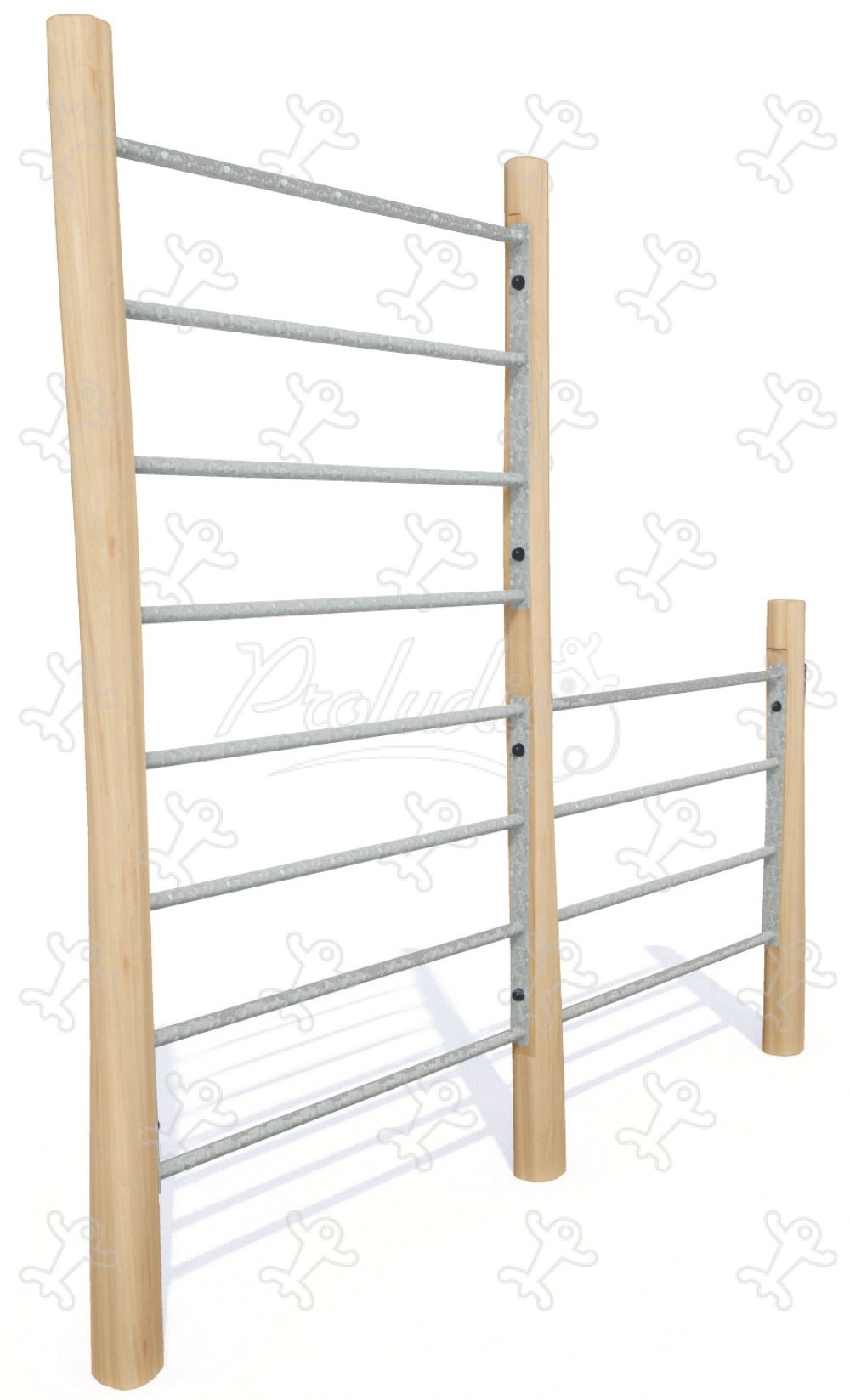

Double Wall Bars J4922 sport and fitness acti’fun fitness image 3d

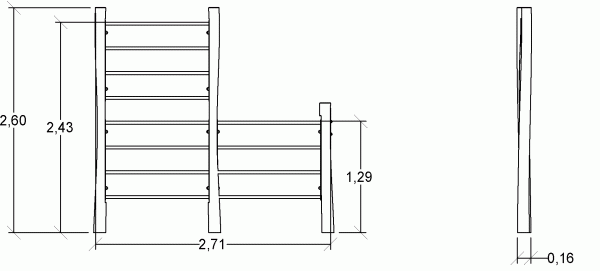

Double Wall Bars J4922 sport and fitness acti’fun fitness image side view

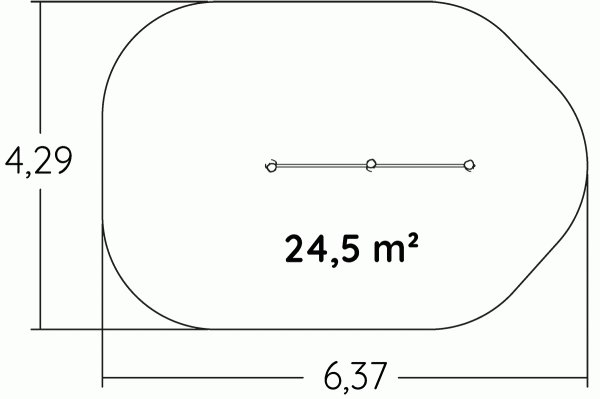

Double Wall Bars J4922 sport and fitness acti’fun fitness image view from above

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
