3 Horizontal Bars L
J4919
We have created the reference J4919 in our "Fitness" range. This module is accessible from 1.40 m. It can accommodate up to 3 players.

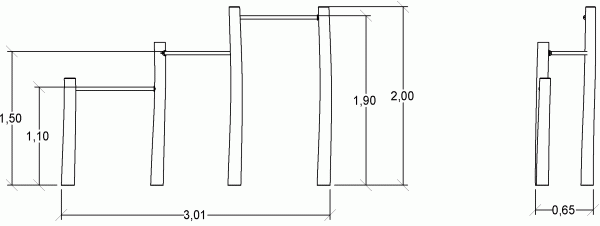

The size of the module is: 3.03 m length, 0.67 m width, 2.00 m. high. The free fall height (FFH) is 1.90 m.
Standard Product
Complete documentation, TÜV certification issued.
Sports Equation

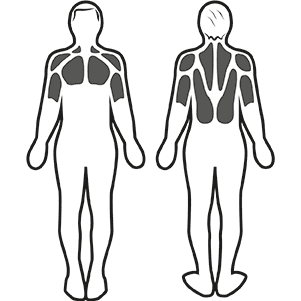

Muscle stimulation
| Minimum size: | > 1.40 m |
| Number of players: | 3 players |
| FFH : | 1.90 m |
| Size: | 3.03 x 0.67 x 2.00 m |
| Number of installers: | 2 |
| Installation time: | 01:00:00 |
| Concrete volume: | 0.20 m3 |

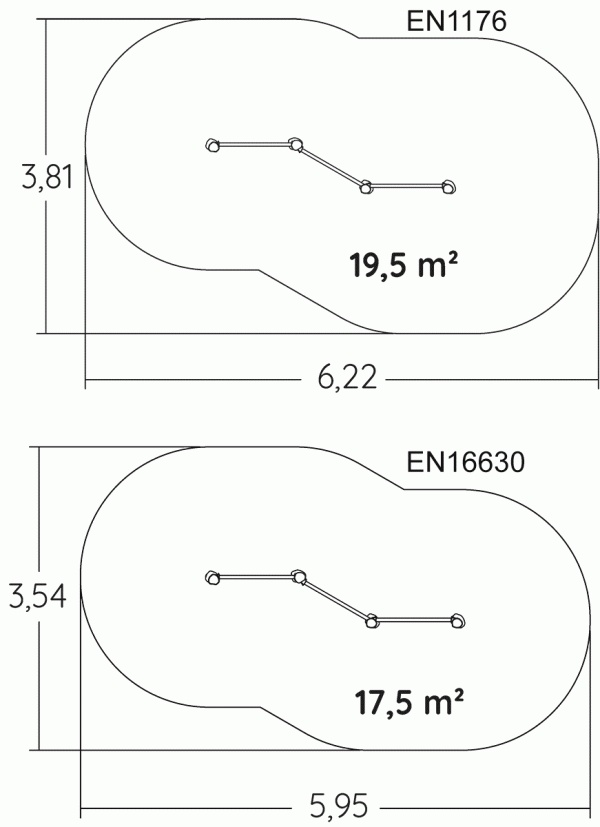

| Surface: | 19.50 m2 |
| Total weight: | 111.19 kg |
| Weight of the heaviest element: | 29.70 kg |
Repairability
8.98 /10
The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
