Well
J49140®
We have created the reference J49140® in our "Rotating equipment" range. This module is accessible from 3 years. It can accommodate up to 6 players.

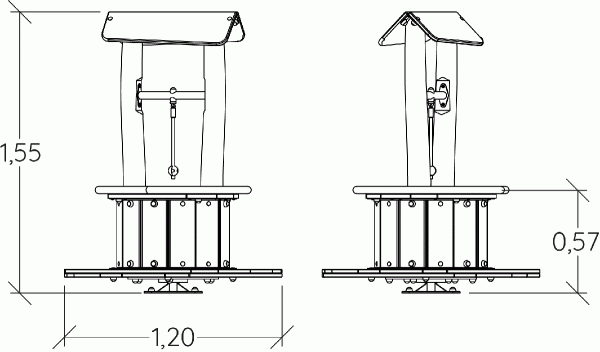

The size of the module is: 1.20 m length, 1.20 m width, 1.55 m. high. The free fall height (FFH) is 1.00 m.
Custom Product
Simplified documentation, lead times upon request, on-site certification. Additional shipping costs may apply. Available in certain countries.
| Age range: | 3+ |
| Number of players: | 6 players |
| FFH : | 1.00 m |
| Size: | 1.20 x 1.20 x 1.55 m |
| Installation time: | 02:00:00 |
| Concrete volume: | 0.15 m3 |

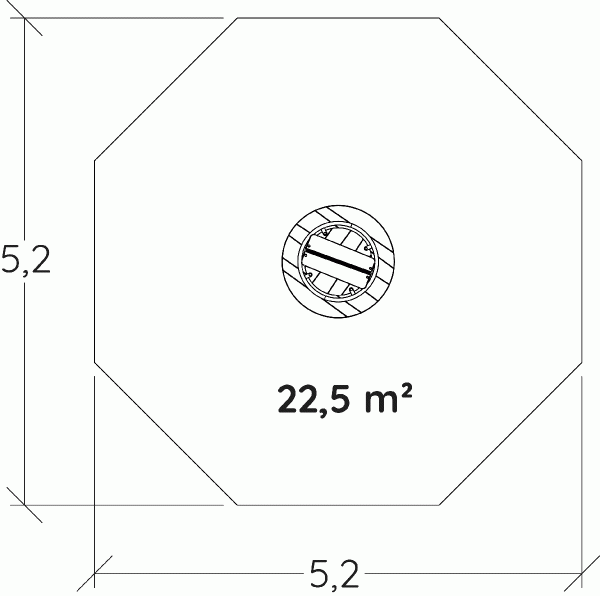

| Surface: | 22.50 m2 |
| Total weight: | 227.32 kg |
| Weight of the heaviest element: | 165.00 kg |
Repairability
9.43 /10

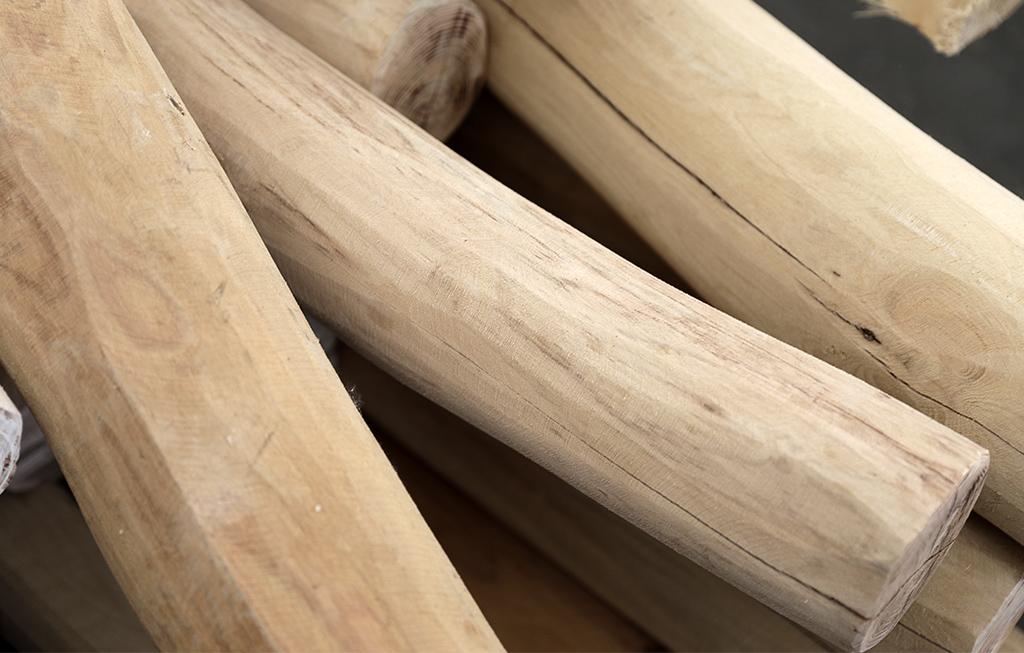

The posts with average diameter 100 to 120mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
The boards are made from natural robinia wood or Douglas fir (plank sizes: 22 and 27mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The 16mm diameter rope is made of galvanised steel cable covered with polyester.
The cables are linked together and held in place by injected polyamide spheres.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
