Jungle-themed multiplay equipment with climbing activities, elevated playhouse, and slide - J38504

We have created the reference J38504 in our "Adventure" range. This module is accessible from 2 years. It can accommodate up to 18 players.

The size of the module is: 4.28 m length, 3.00 m width, 3.00 m. high. The free fall height (FFH) is 1.80 m.

25 play functions

Climbing x1

Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.

Role play x4

Role play promotes the child's intellectual and social skills.

Sliding x1

Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Resting x1

Resting allows the child to recover from their exertions, and also improve their concentration.

Handling x2

Handling is a great activity for developing motor skills and abilities in young children while having fun.

Hiding x1

Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.

Taking shelter x1

Finding a small refuge to shelter in ensures children have a space of their own.

Thinking x2

Thinking helps children become more independent and gain self-confidence through increased understanding and self-awareness.

Tactile stimulation x3

Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.

Getting across x1

Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.

Visual stimulation x2

It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.

Specifications

Age range:	2+
Number of players:	18 players
FFH :	1.80 m
Size:	4.28 x 3.00 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00
Concrete volume:	0.20 m3
Surface:	33.00 m2
Total weight:	326.33 kg
Weight of the heaviest element:	19.17 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

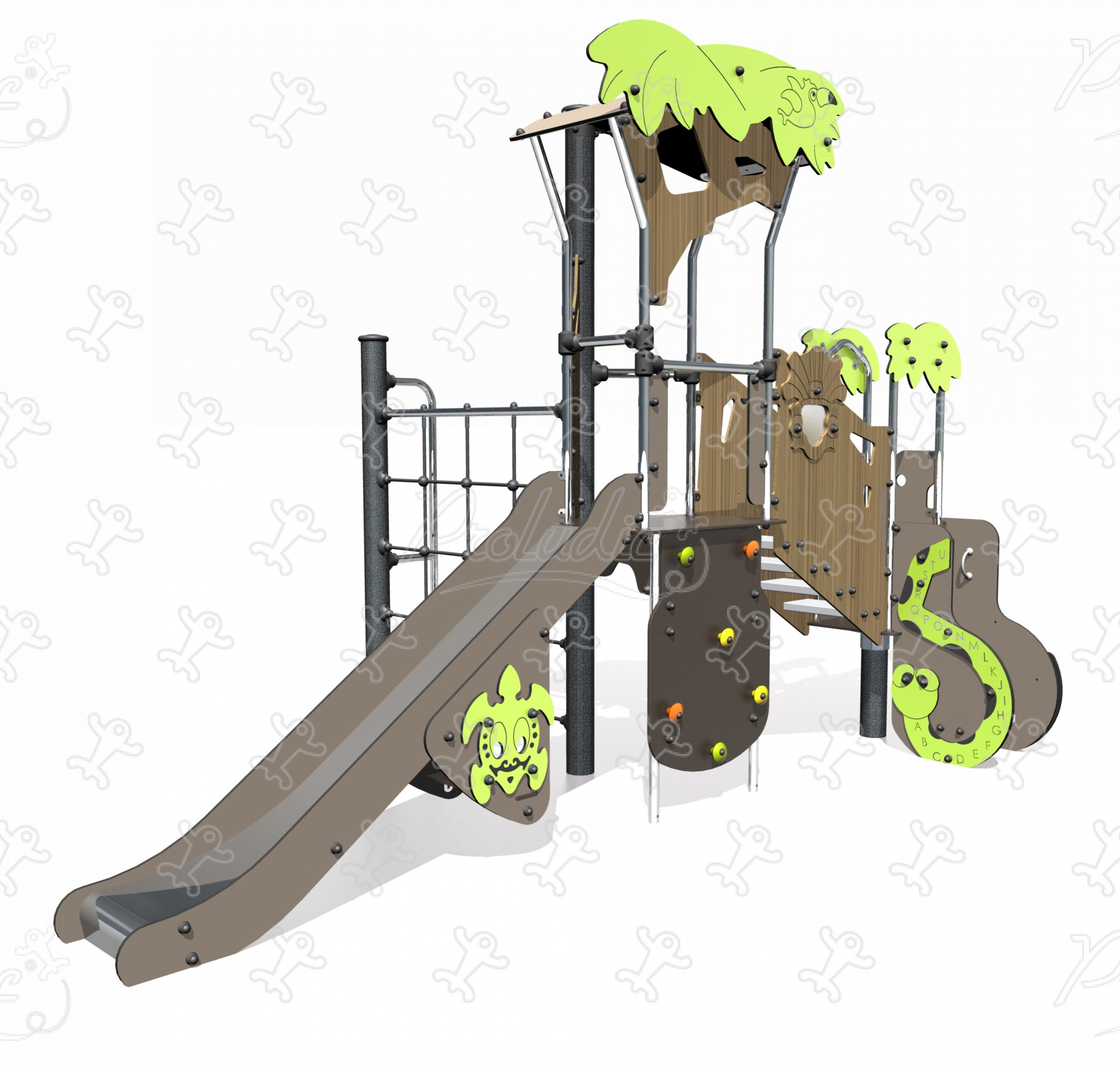

J38504 playgrounds themed playground equipment adventure image 3d

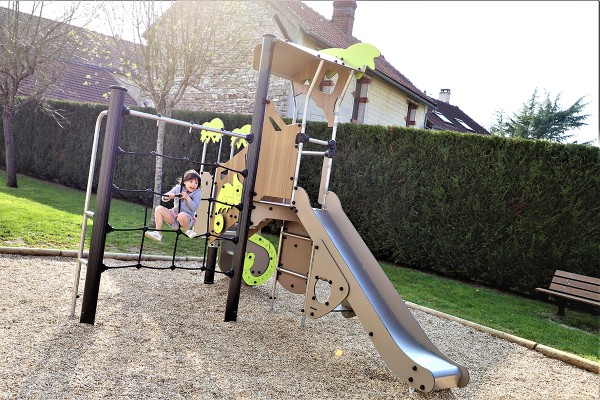

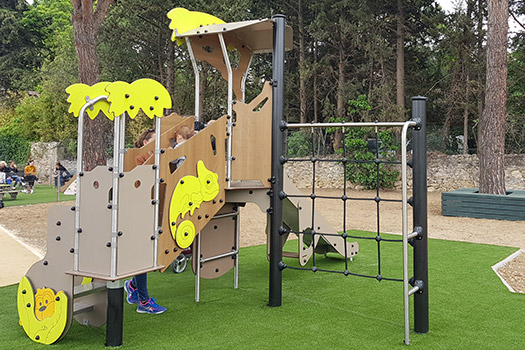

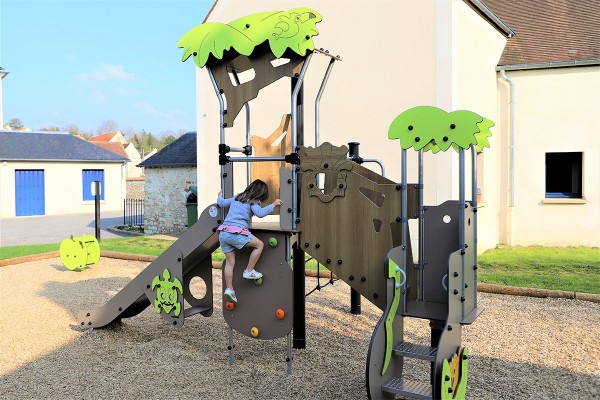

J38504 playgrounds themed playground equipment adventure image photo

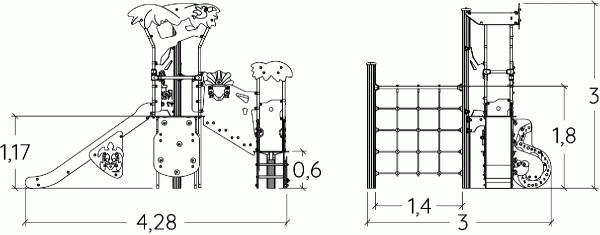

J38504 playgrounds themed playground equipment adventure image side view

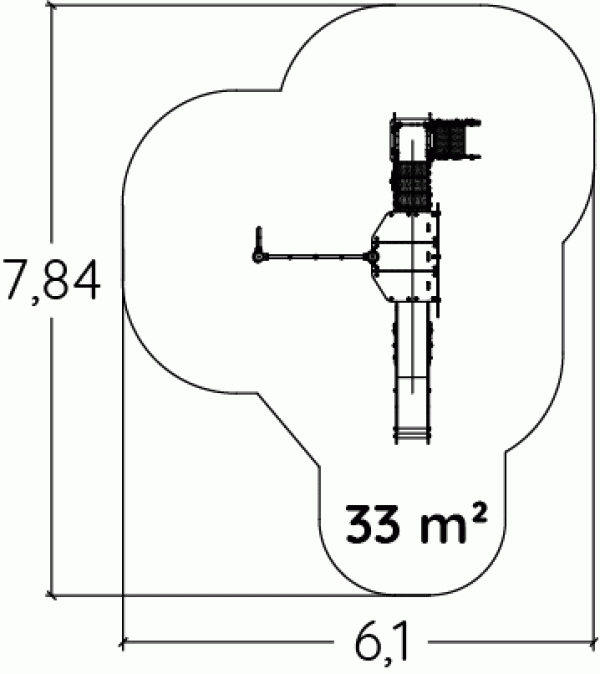

J38504 playgrounds themed playground equipment adventure image view from above

Materials

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The anti-slip steps are made of corrugated aluminium sheets ensuring durability and lasting good looks.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece. The sides are made from a 13mm thick compact material... (HPL). Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
