Springers - Raft - J883®

We have created the reference J883® in our "Springers" range. This module is accessible from 2 years. It can accommodate up to 4 players.

The size of the module is: 1.59 m length, 1.40 m width, 0.76 m. high. The free fall height (FFH) is 0.60 m.

Standard Product

Complete documentation, standard lead times, TÜV certification issued.

4 play functions

Role play x1

Role play promotes the child's intellectual and social skills.

Meeting x1

Playing together, children meet new faces, new behaviors, new personalities, and how to interact.

Balancing x1

Balancing involves learning to manage empty space in activities at height, when hanging or on narrow surfaces.

Swinging and rocking x1

It allows children to leave their stable position and experiment with uncoordinated movements.

Specifications

Age range:	2+
Number of players:	4 players
FFH :	0.60 m

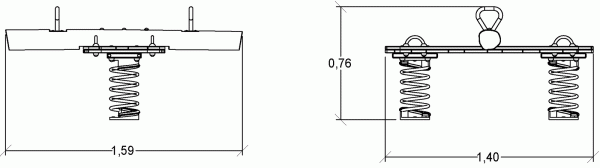

Size:	1.59 x 1.40 x 0.76 m

Equipment installation

Concrete volume:	24.00 m3

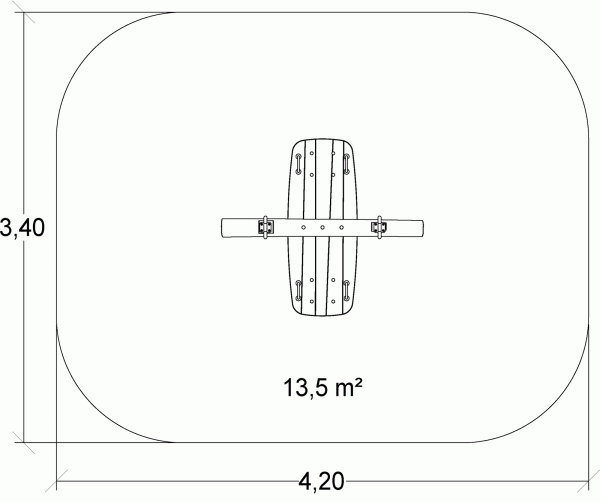

Surface:	13.50 m2
Total weight:	6.54 kg
Weight of the heaviest element:	6.00 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

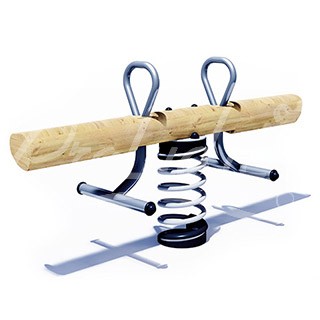

Raft J883® playgrounds moving equipment springers image 3d

Raft J883® playgrounds moving equipment springers image side view

Raft J883® playgrounds moving equipment springers image view from above

Materials

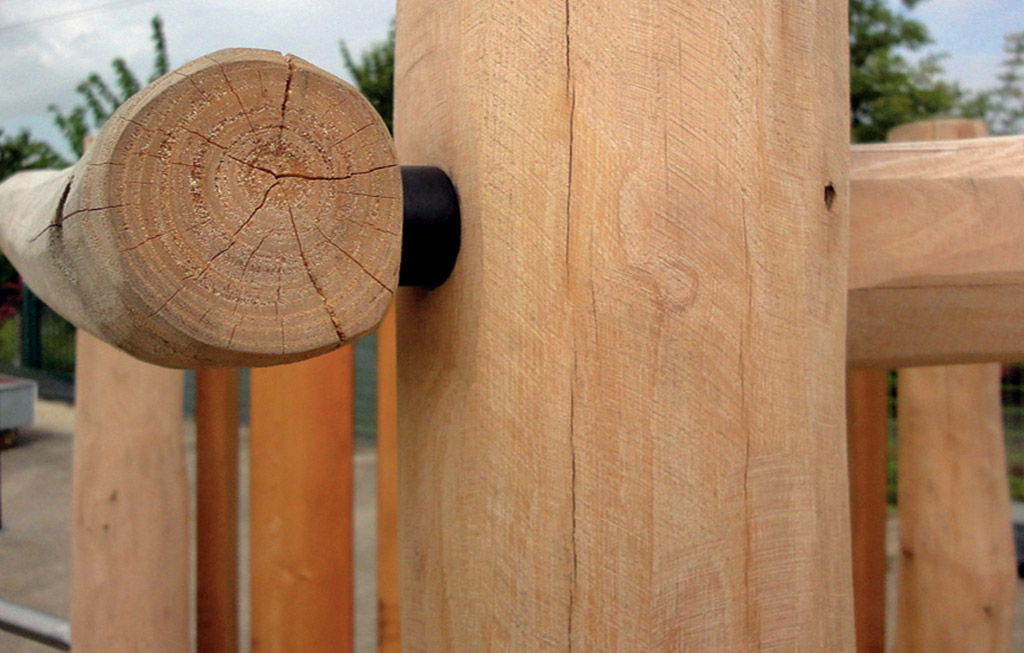

The 120/140mm diameter seat is made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

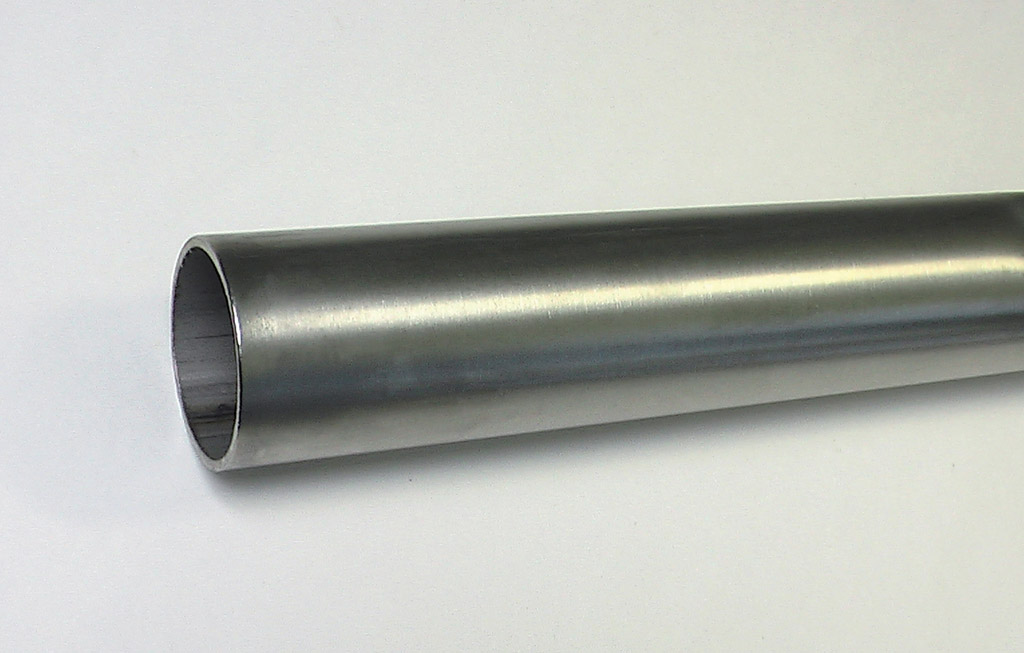

The handles and the footrests are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more
