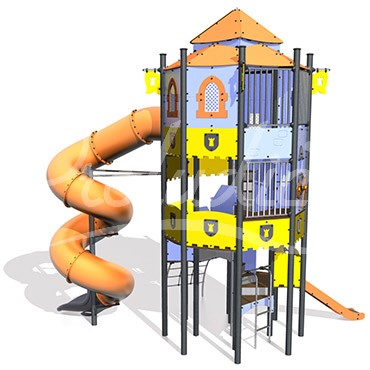

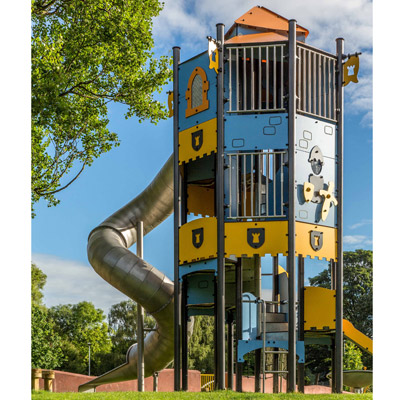

We have created the reference J4701 in our "Medieval" range. This module is accessible from 3 years. It can accommodate up to 25 users.

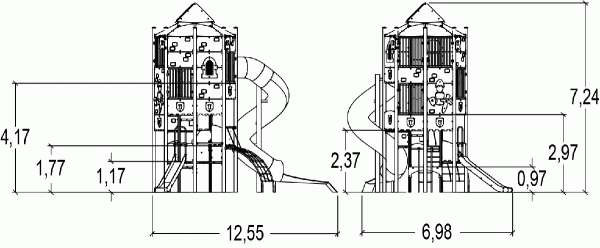

The size of the module is: 6.98 m length, 12.55 m width, 7.20 m. high. The free fall height (FFH) is 2.37 m.
15 play functions
Sliding
x2
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Meeting
x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
Hiding
x1
Feel the excitement of being hidden somewhere, and then the pleasure of finally being found.
Climbing
x4
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
Tactile stimulation
x1
Each touch-stimulating activity enables children to refine their manual dexterity skills, and the coordination of their gestures.
Visual stimulation
x2
It awakens curiosity and memorising, stimulating concentration to better assimilate details, or to succeed in the association of colors.
Specifications
| Age range: | 3+ |
| Number of users: | 25 users |
| FFH : | 2.37 m |
| Size: | 6.98 x 12.55 x 7.20 m |
Equipment installation
| Number of installers: | 4 |
| Concrete volume: | 3.40 m3 |

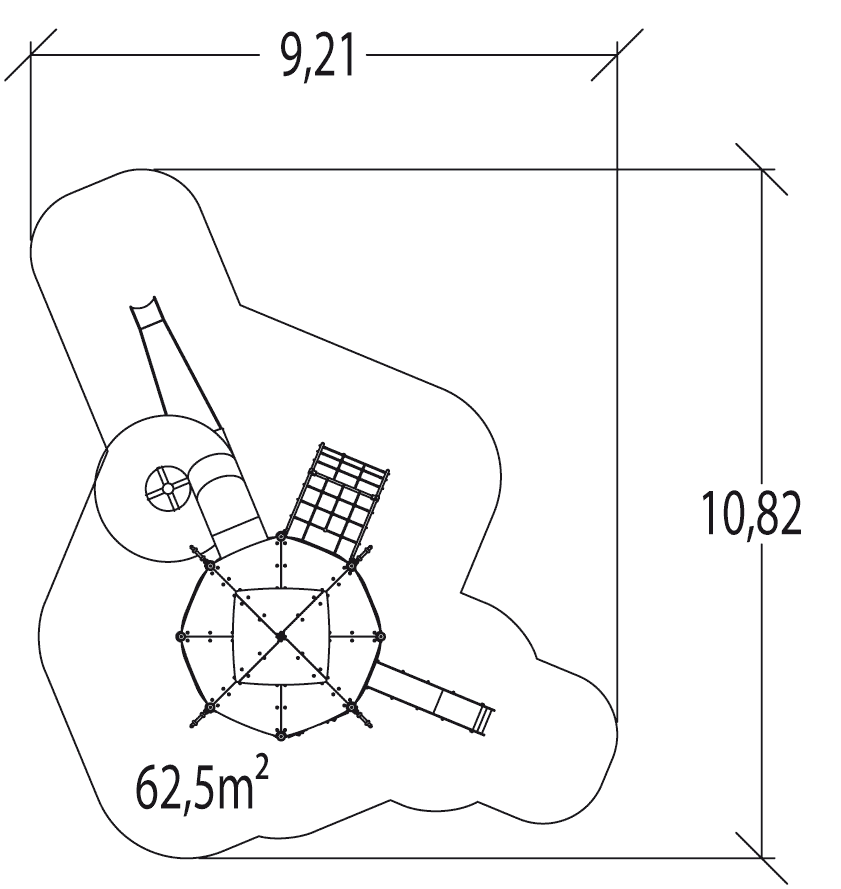

| Surface: | 62.50 m2 |
| Total weight: | 2896.74 kg |
| Weight of the heaviest element: | 600.00 kg |
Environmental Indicators
Repairability
9.48 /10
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The 95x95mm and 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.
The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The tubular slide is made of stainless steel.
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
