We have created the reference J439 in our "Swings" range. This module is accessible from 1 year. It can accommodate up to 2 users.

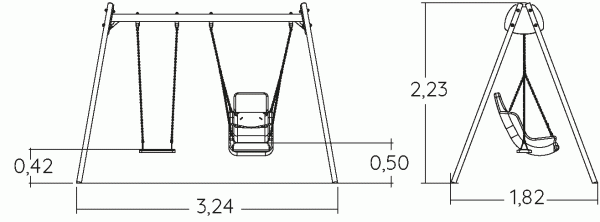

The size of the module is: 3.20 m length, 1.80 m width, 2.20 m. high. The free fall height (FFH) is 1.40 m.
Specifications
| Age range: | 1+ |
| Number of users: | 2 users |
| FFH : | 1.40 m |
| Size: | 3.20 x 1.80 x 2.20 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 02:00:00 |
| Concrete volume: | 0.11 m3 |

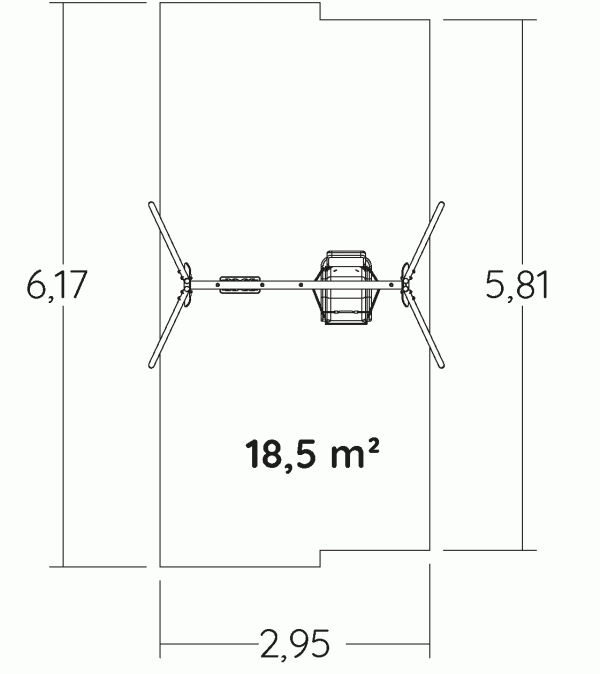

| Surface: | 18.50 m2 |
| Total weight: | 94.28 kg |
| Weight of the heaviest element: | 20.80 kg |
Environmental Indicators
Repairability
9.29 /10
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The support legs are made from 60mm galvanised steel.
The horizontal beam is manufactured from 89mm diameter galvanised steel.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The swing bearings are made of stainless steel.

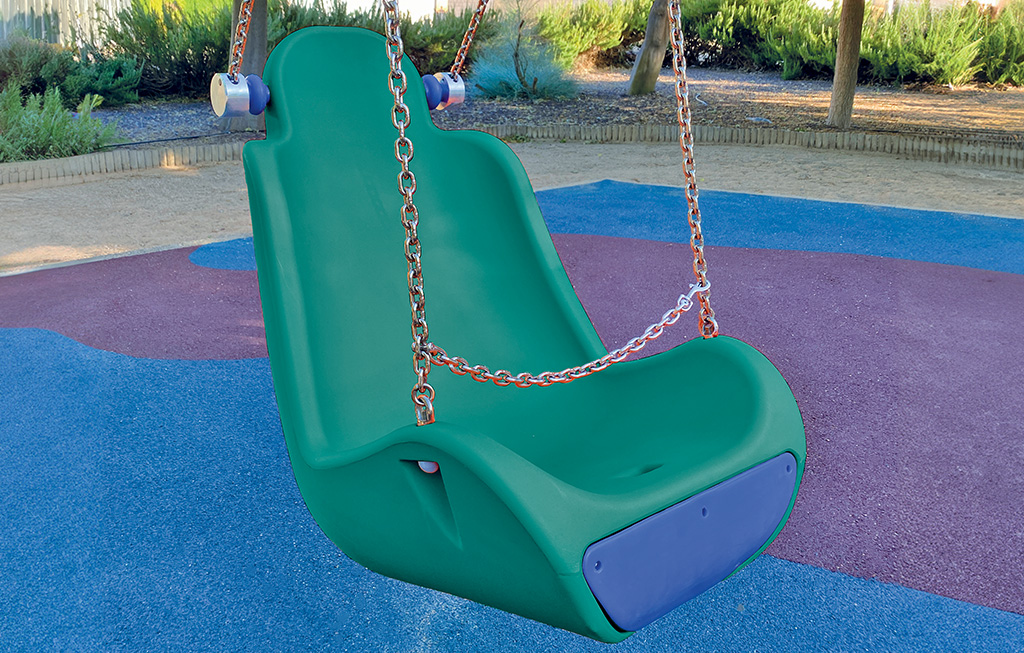

The bucket seat is made of rotomouled polyethylene. It is provided with a fall arrest strap secured by a carabiner
The classic swing seat is made of shock absorbing moulded honeycomb rubber. The swing chains are made of stainless steel. The seat fixing brackets are made of 10mm... stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. Read more
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
