We have created the reference J38103-C in our "Diabolo" range. This module is accessible from 3 years. It can accommodate up to 23 users.

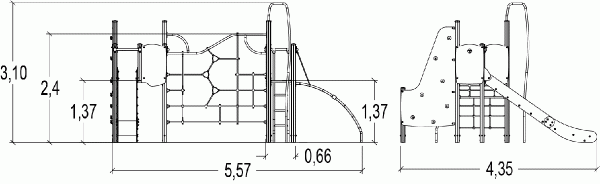

The size of the module is: 5.57 m length, 4.35 m width, 3.10 m. high. The free fall height (FFH) is 2.60 m.
Other finishes available
9 play functions
Climbing
x1
Climbing develops the child's motor and psychomotor skills as they balance and deliberate to progress in their movement.
Sliding
x2
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Meeting
x2
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
Climbing
x3
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
Getting across
x1
Successfully traversing promotes self-confidence and motivates the child to undertake more complex movements.
Specifications
| Age range: | 3+ |
| Number of users: | 23 users |
| FFH : | 2.60 m |
| Size: | 5.57 x 4.35 x 3.10 m |
Equipment installation
| Number of installers: | 2 |
| Concrete volume: | 0.50 m3 |

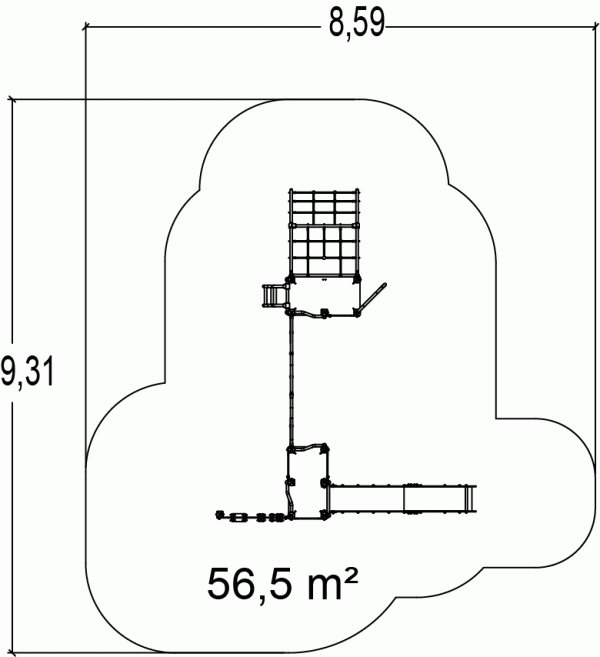

| Surface: | 56.50 m2 |
| Total weight: | 438.16 kg |
| Weight of the heaviest element: | 33.87 kg |
Environmental Indicators
Repairability
9.48 /10
Downloads
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
