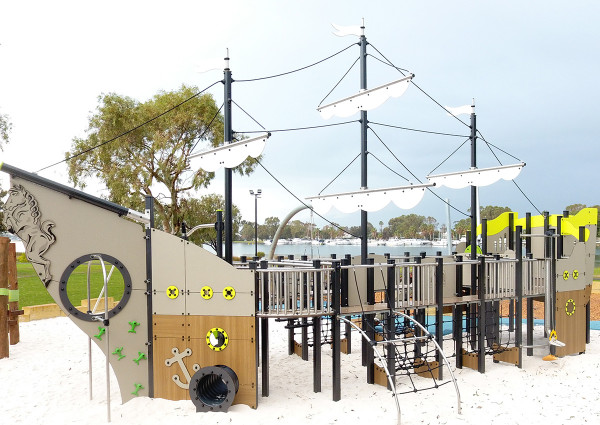

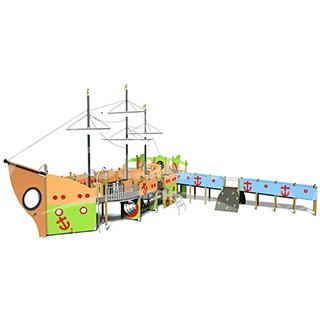

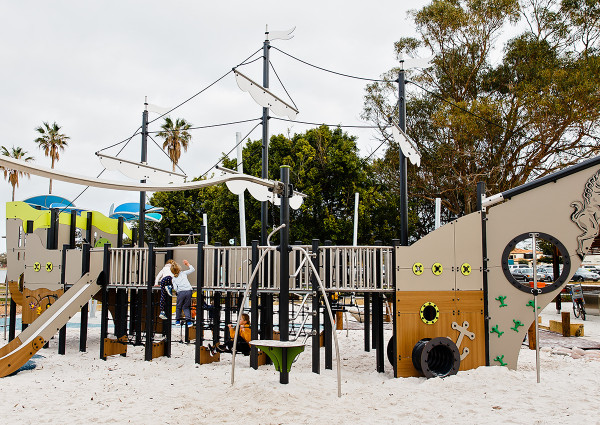

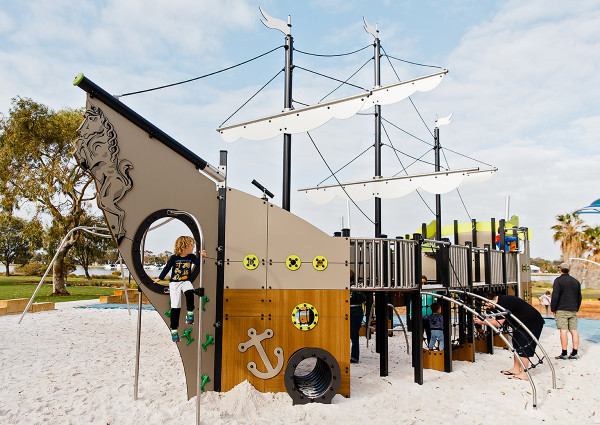

We have created the reference J1961 in our "Aquatica" range. This module is accessible from 3 years. It can accommodate up to 75 users.
The size of the module is: 13.09 m length, 12.69 m width, 6.90 m. high. The free fall height (FFH) is 1.70 m.
Proludic – International Website
We have created the reference J1961 in our "Aquatica" range. This module is accessible from 3 years. It can accommodate up to 75 users.
The size of the module is: 13.09 m length, 12.69 m width, 6.90 m. high. The free fall height (FFH) is 1.70 m.
Age range: | 3+ |
Number of users: | 75 users |
FFH : | 1.70 m |
Size: | 13.09 x 12.69 x 6.90 m |
Number of installers: | 4 |
Installation time: | 70:00:00 |
Concrete volume: | 2.30 m3 |

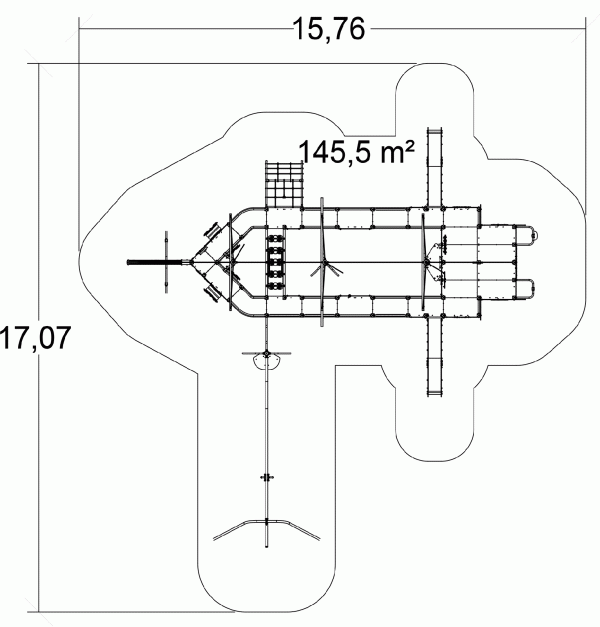

Surface: | 145.50 m2 |
Total weight: | 2877.22 kg |
Weight of the heaviest element: | 42.77 kg |
Repairability
9.48 /10
The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.
The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The sliding surfaces are made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
The tunnel is made of 100% recycled rotomolded polyethylene, 45cm in diameter (RAL 9005).
The one-piece rail is made of stainless steel, Ø 76.1mm, 3.6mm thick. The trolley is made of stainless steel ensuring its durability.
The grip section of the stainless steel handle is overmoulded with rubber to give a good grip.
The climbing holds are made of polyamide for its strength and rigidity.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
