We have created the reference J1069® in our "Slides" range. This module is accessible from 2 years. It can accommodate up to 5 users.

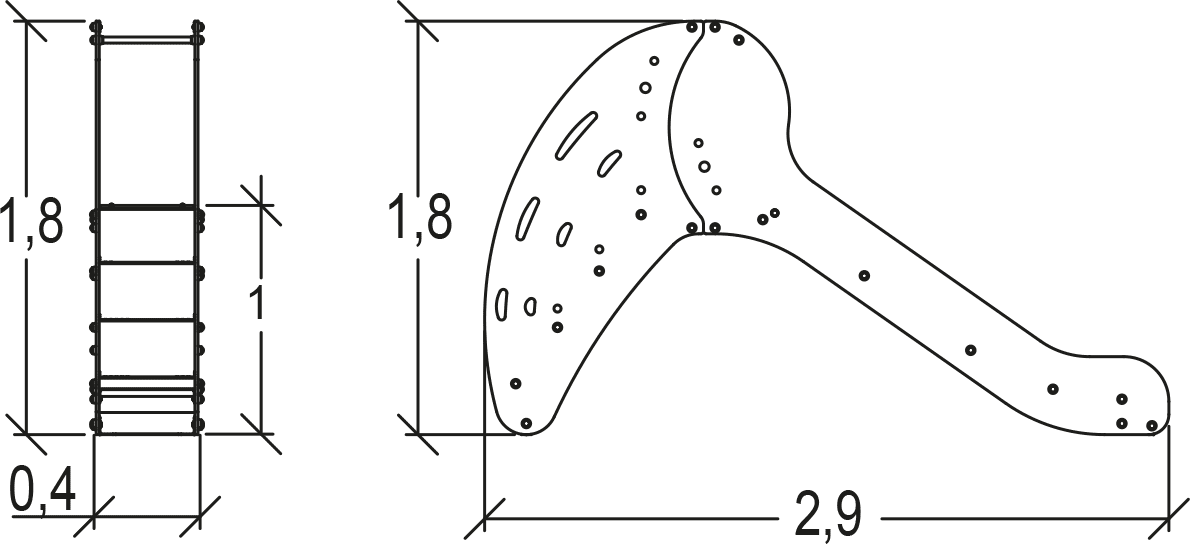

The size of the module is: 2.90 m length, 0.47 m width, 1.75 m. high. The free fall height (FFH) is 1.00 m.
Other finishes available
3 play functions
Sliding
x1
Sliding is always exciting and fun. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Meeting
x1
Playing together, children meet new faces, new behaviors, new personalities, and how to interact.
Climbing
x1
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height and space.
Specifications
| Age range: | 2 - 6 |
| Number of users: | 5 users |
| FFH : | 1.00 m |
| Size: | 2.90 x 0.47 x 1.75 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 03:00:00 |
| Concrete volume: | 0.10 m3 |

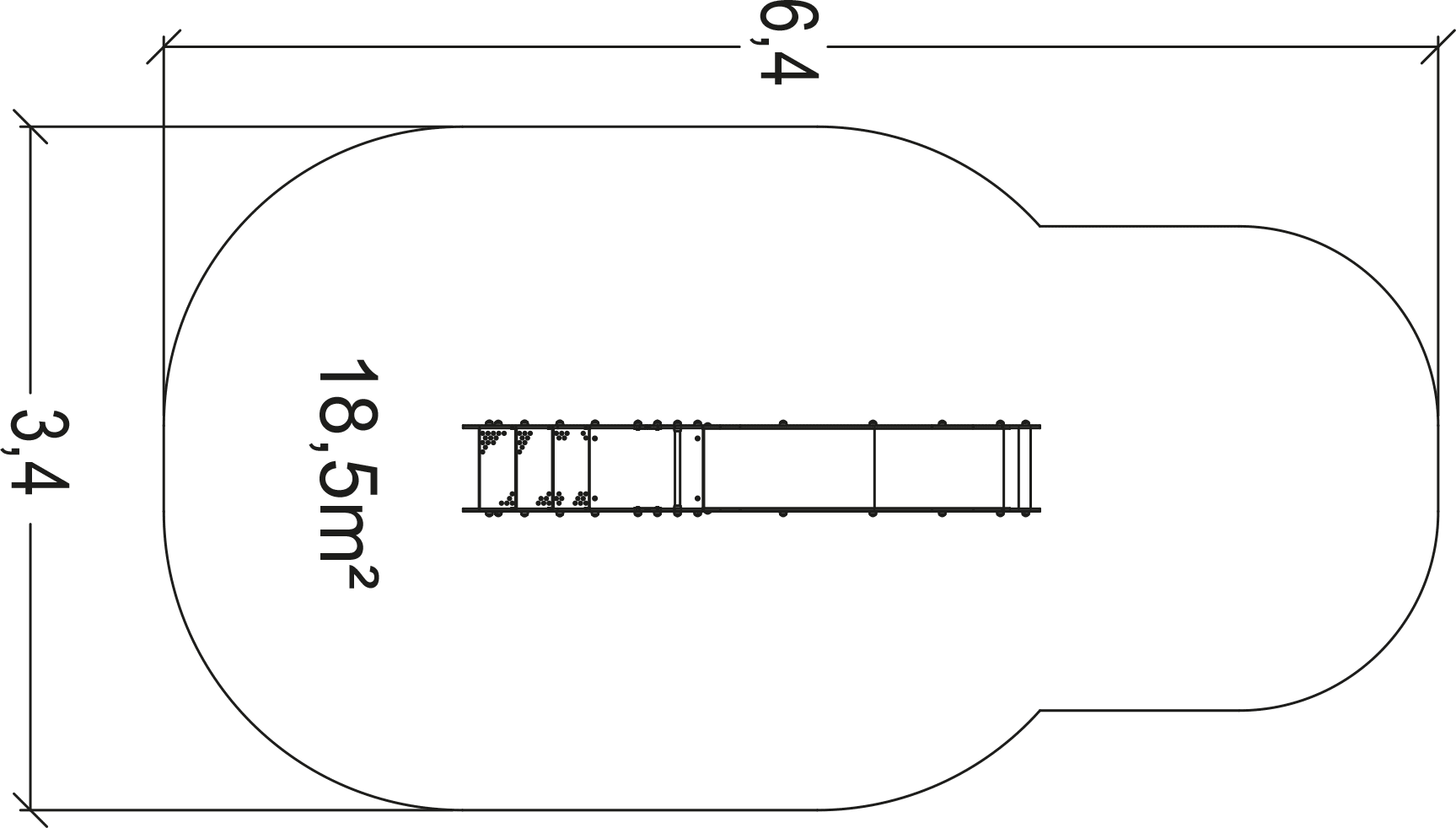

| Surface: | 18.50 m2 |
| Total weight: | 91.13 kg |
| Weight of the heaviest element: | 16.35 kg |
Environmental Indicators
Repairability
9.29 /10
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

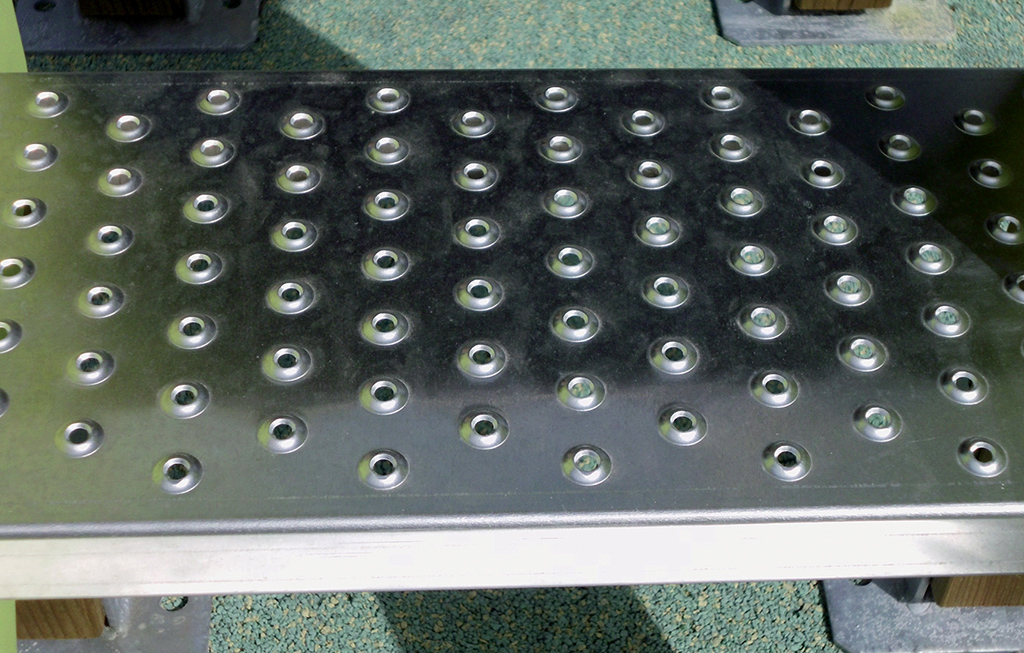

The monobloc steps are made of folded aluminum sheets with trade-plate surface finish, ensuring the equipment’s structural strength and durability.
The protective bar is made of PVC.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
